The standard finish offered by Protocase is powdercoating. This is widely recognized as the industry standard for painting metal, providing a high quality, highly durable finish. Protocase offers a variety of standard stocked colors and textures. There is no additional charge for using one of our standard stocked colors.

We are also happy to provide non-stock or fully custom colors for an additional fee and lead time. For more information, please contact us.

Powdercoat colors are usually identified by the RAL number. When requesting a full custom powdercoat color, please make sure to specify the RAL number. Click here for RAL color chart. (Link will open PDF document)

Stocked powdercoat colors

Note: The color representations below may deviate from the actual color due to variations in browser software, video cards, and monitors.
  • All stocked powdercoat colors listed below can be digitally printed and silkscreened
  • Polyester & Urethane powder coatings can be used for interior & exterior applications.
  • Epoxy and Hybrid powder coatings are for interior use only.
Click on a thumbnail below to see an enlarged powdercoat color sample.

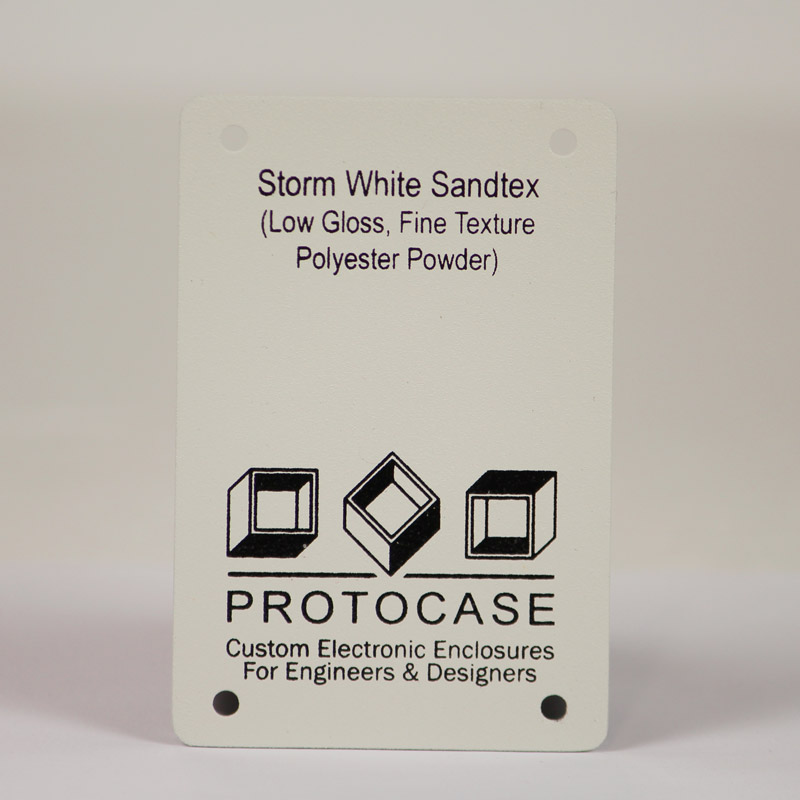

  • Storm White
    Storm White Sandtex Low Gloss
    Textured Polyester
    Powder

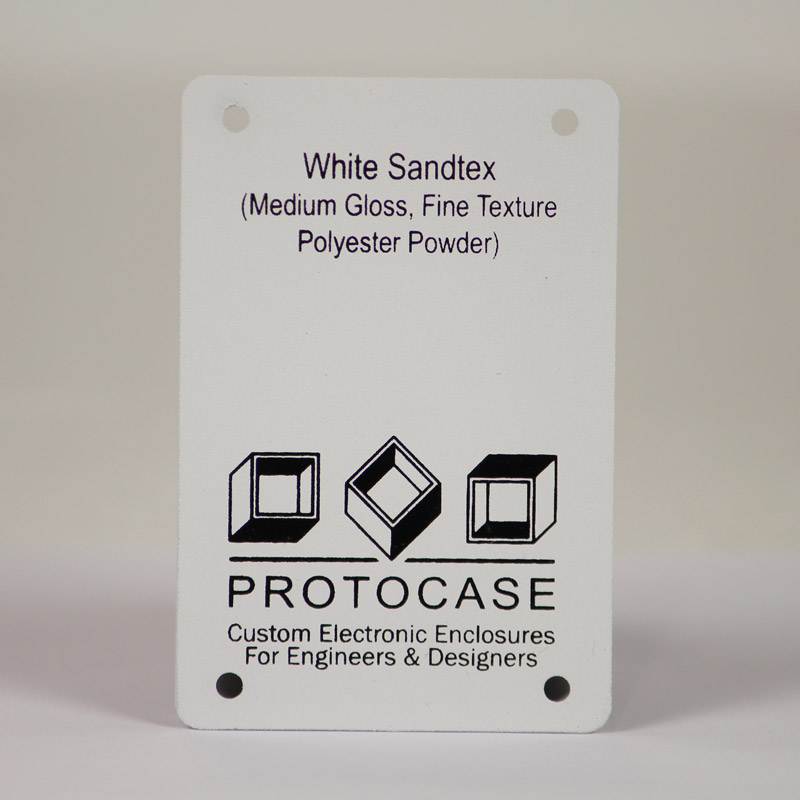

  • White Sandtex
    White Sandtex Medium Gloss
    Textured Polyester
    Powder

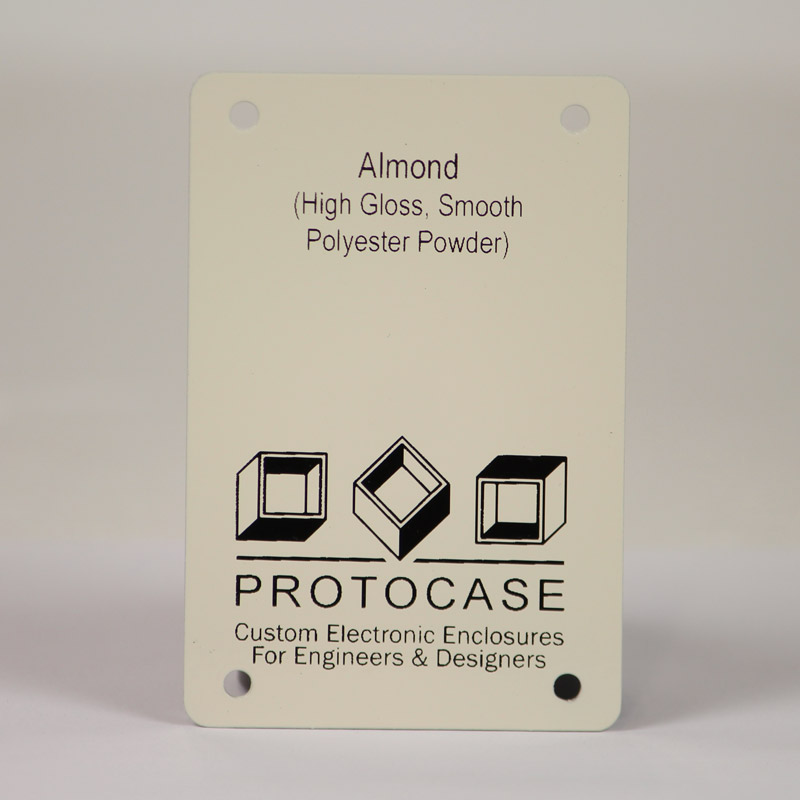

  • Almond (smooth semi gloss)
    Almond High Gloss
    Smooth Polyester
    Powder
  • RAL 9003 Signal White
    RAL 9003 Signal White Glossy
    Smooth Polyester
    Powder

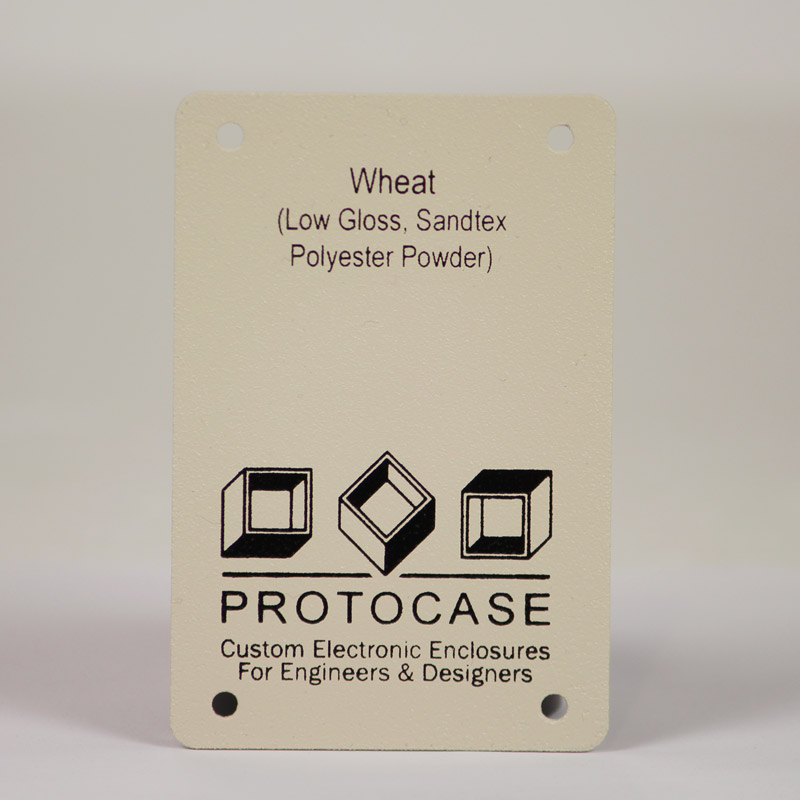

  • Beige wheat (textured)
    Wheat Low Gloss
    Sandtex Polyester
    Powder

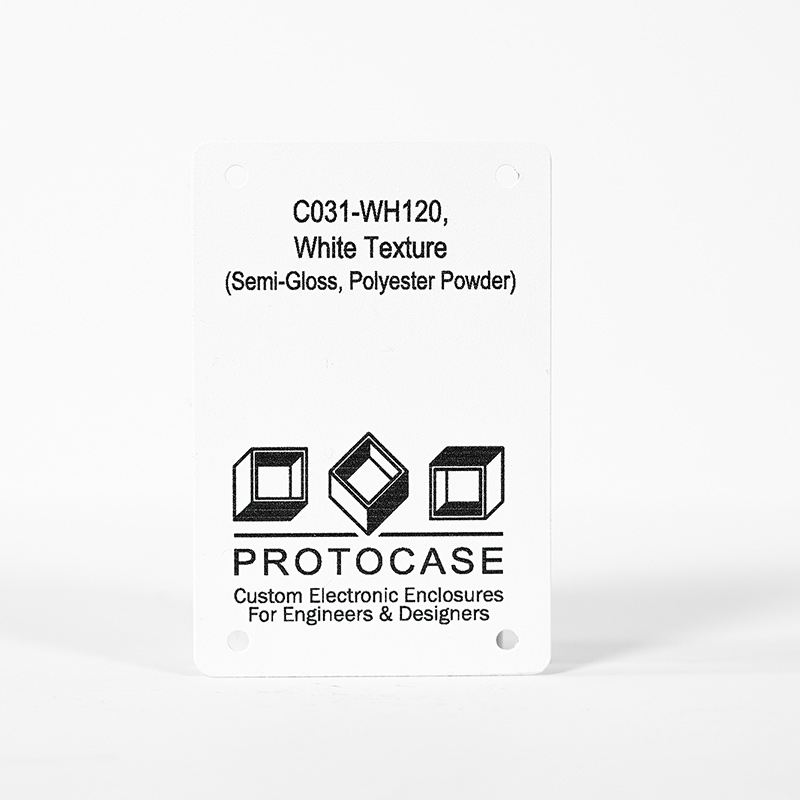

  • CO31-WH120 White Texture
    C031-WH120 White Texture Semi-Gloss
    Polyester Powder

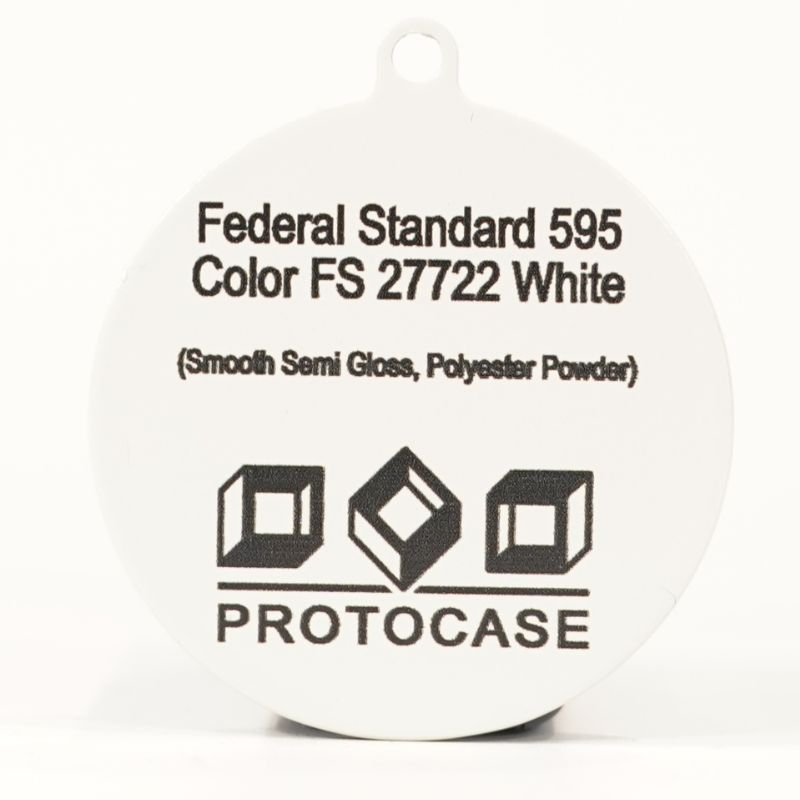

  • Federal Standard 595 Color FS 27722 White
    NEW Federal Standard 595 Color FS 27722 White Smooth Semi Gloss
    Polyester Powder
  • FS 33446 Desert Tan
    FS 33446 Desert Tan Flat
    Smooth Polyester Powder

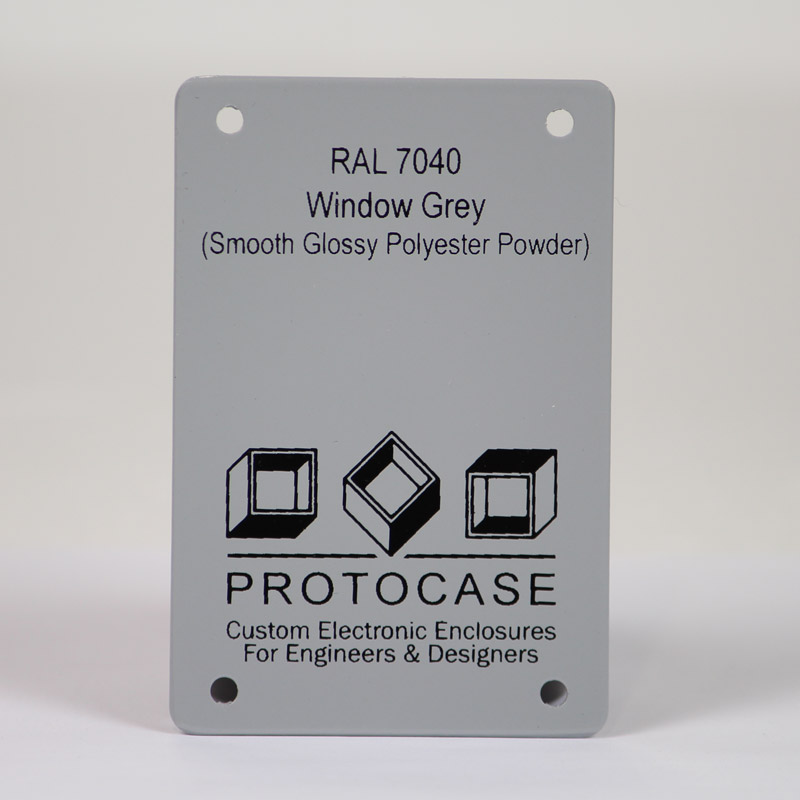

  • RAL 7040 Window Gray
    RAL 7040 Window Gray Glossy
    Smooth Polyester Powder

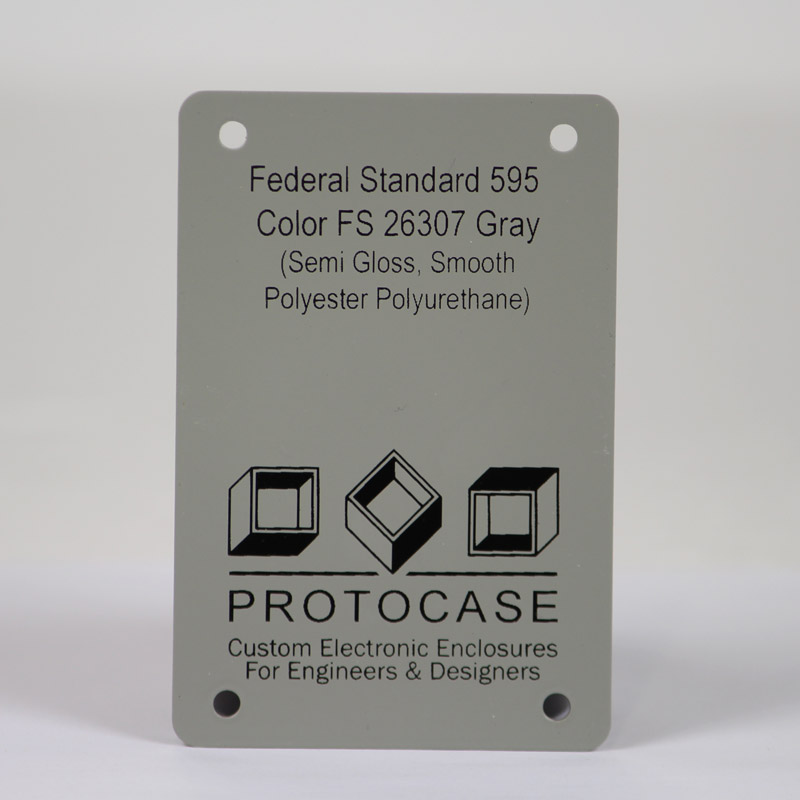

  • Federal Standard Gray
    Color FS 26307
    Federal Standard Gray     Semi Gloss
    Smooth Polyester
    Polyurethane
  • RAL 5010 Textured blue

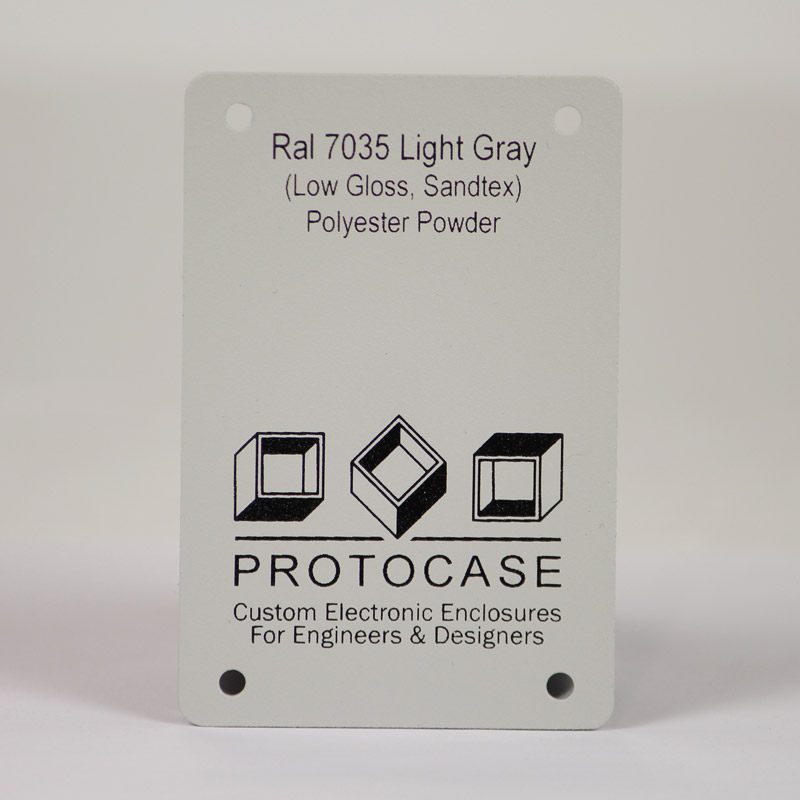

    RAL 7035 Light Gray Low Gloss
    Sandtex Polyester
    Powder

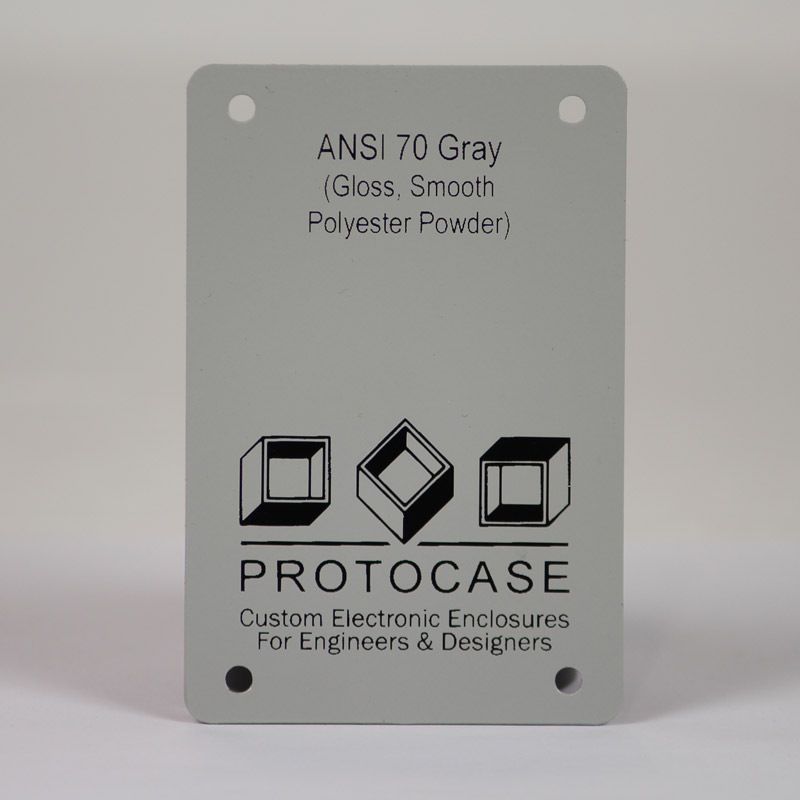

  • ANSI 70(smooth semi gloss)
    ANSI 70 Gray Gloss
    Smooth Polyester
    Powder
  • ASA 61 Gray
    ASA 61 Gray Gloss
    Smooth Polyester
    Powder

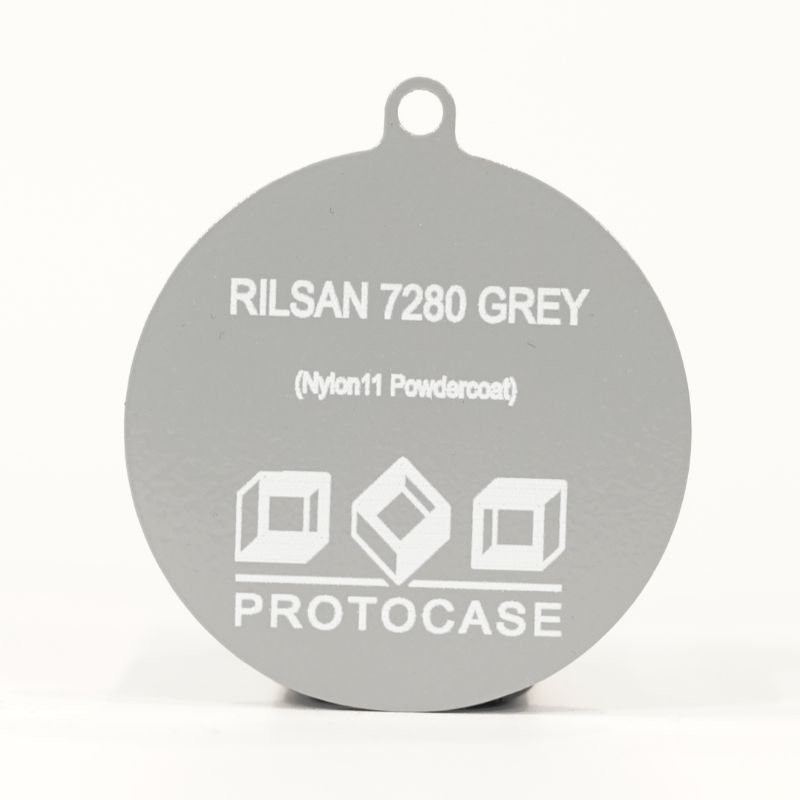

  • RILSAN 7280 Grey
    NEW RILSAN 7280 Grey Nylon11 Powdercoat

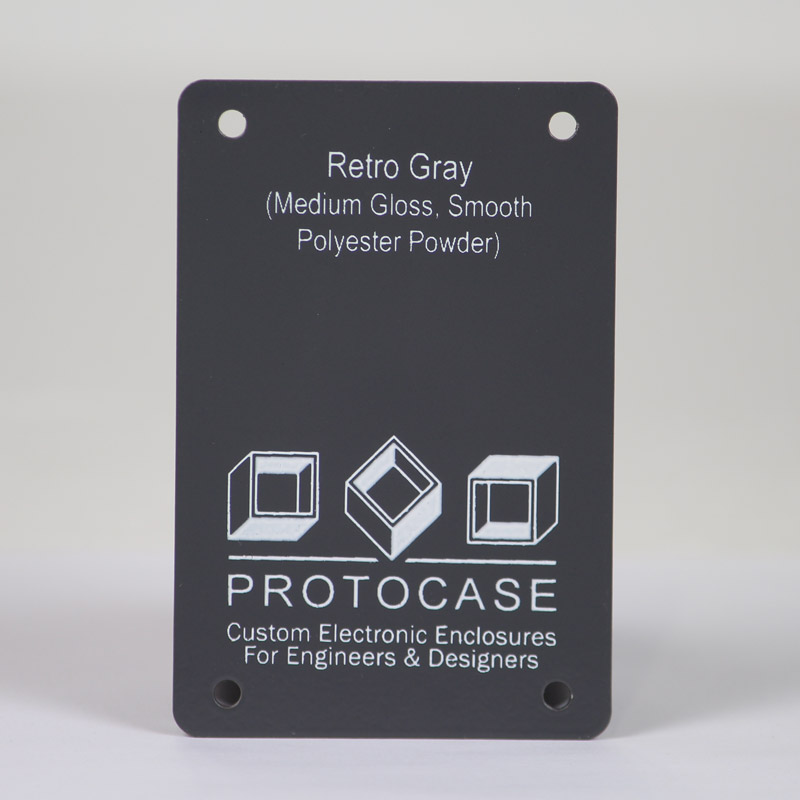

  • Retro (smooth semi gloss)
    Retro Gray Medium Gloss
    Smooth Polyester
    Powder

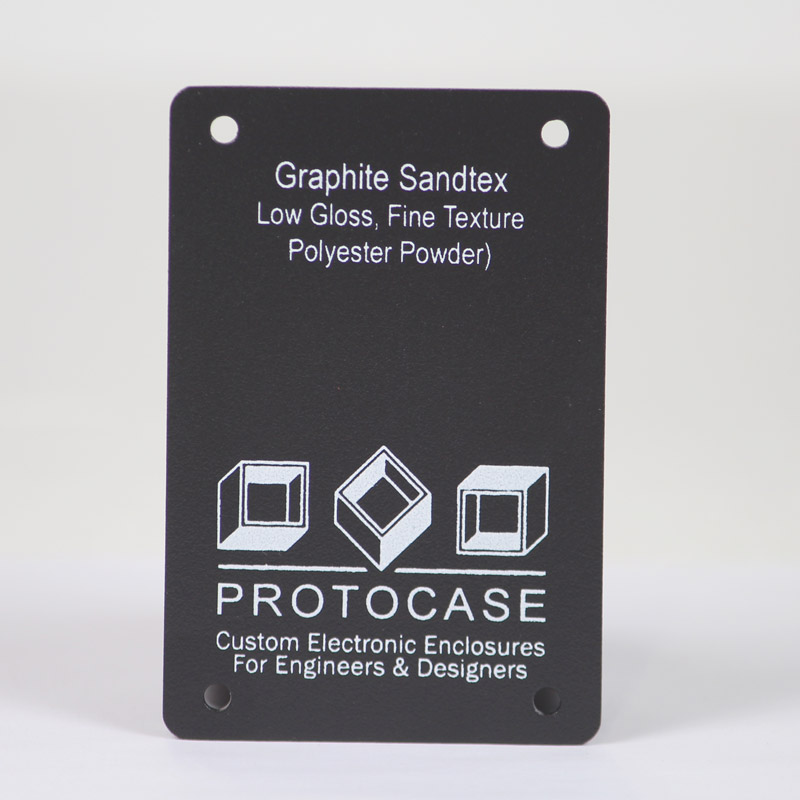

  • Graphite sandtex
    Graphite Sandtex Low Gloss
    Sandtex Polyester
    Powder

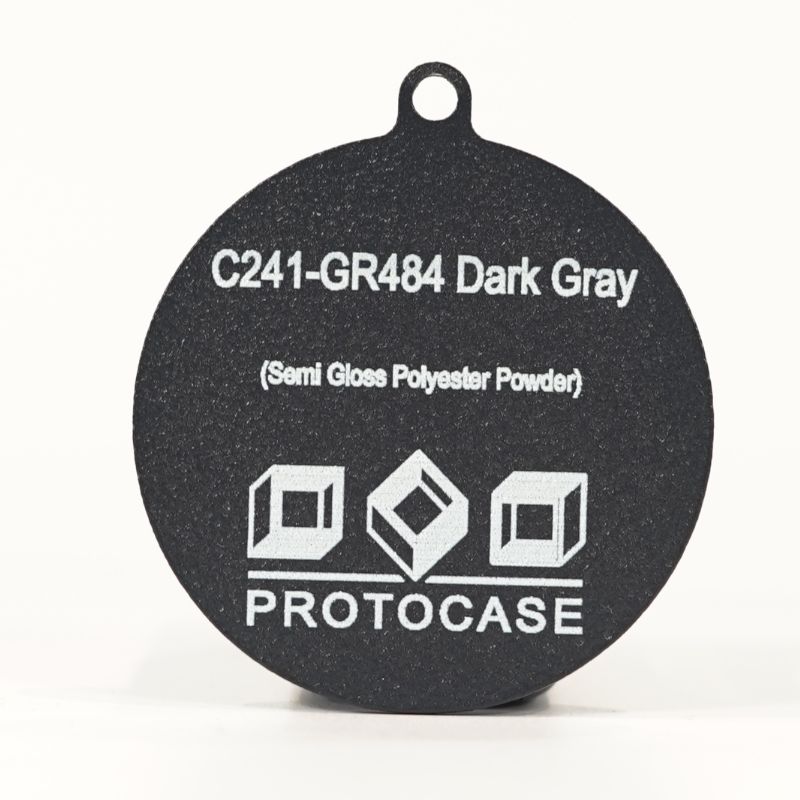

  • C241-GR484 Dark Gray (Semi-Gloss)
    NEW C241-GR484 Dark Gray Semi-Gloss
    Texture Polyester
    Powder

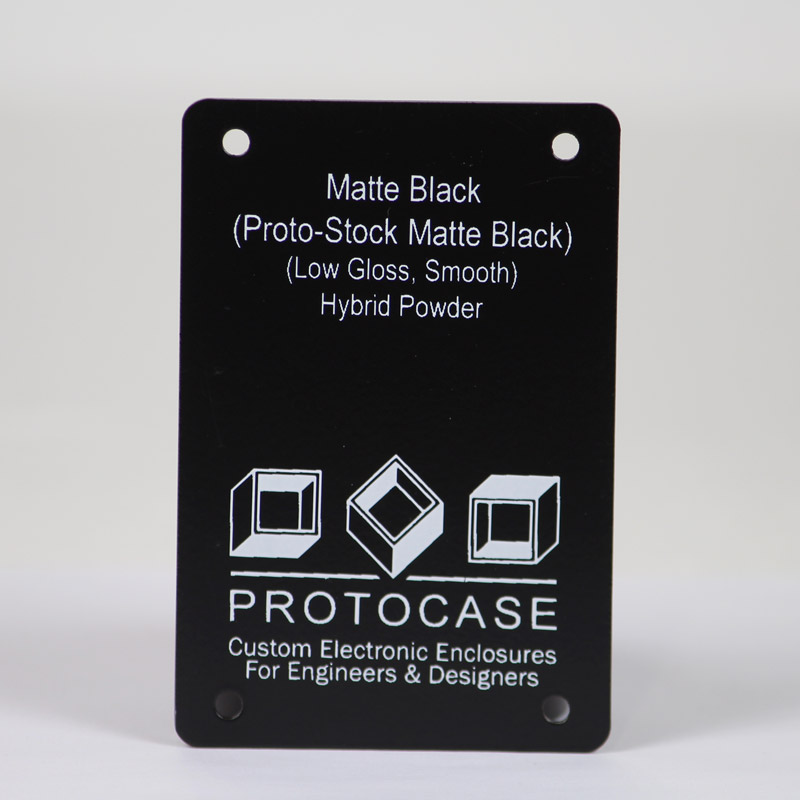

  • Black (smooth matte)
    Proto-Stock Matte Black
    Low Gloss
    Smooth Hybrid
    Powder

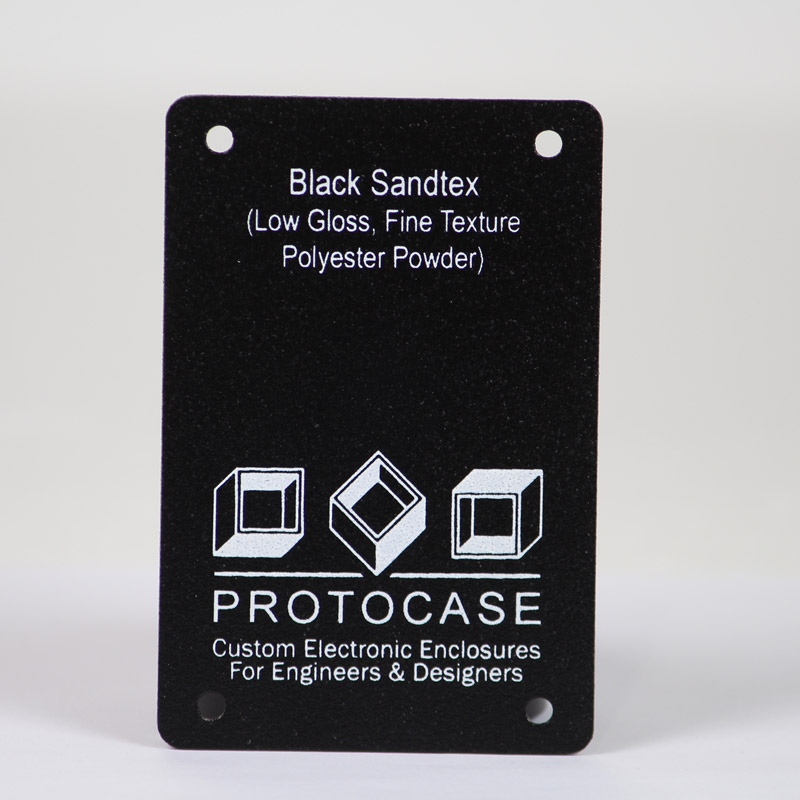

  • Black sandtex
    Black Sandtex Low Gloss
    Fine Texture Polyester Powder

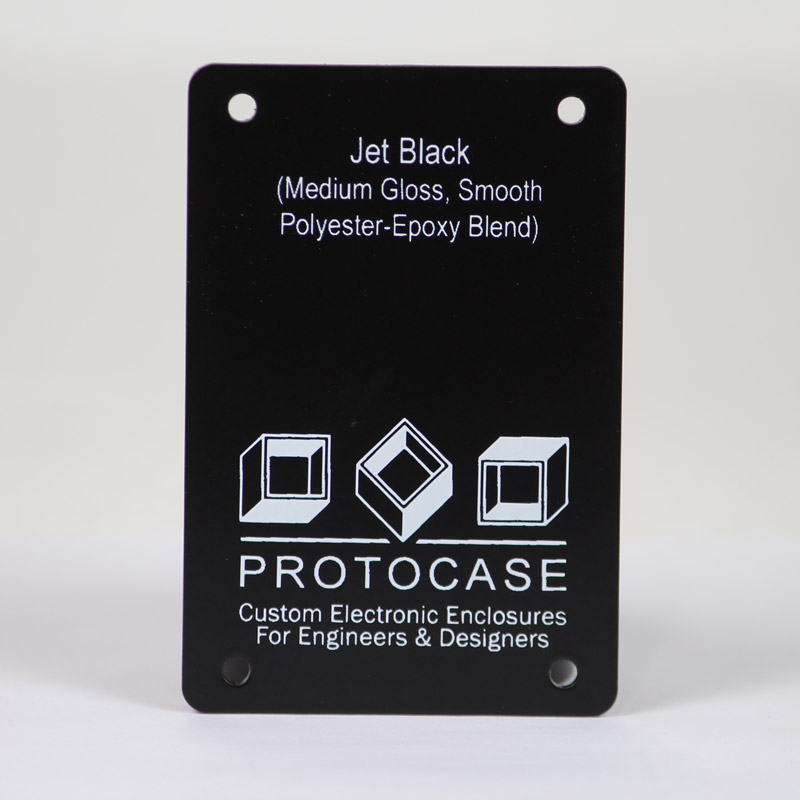

  • Semi gloss black
    RAL 9005 Jet Black Medium Gloss
    Smooth Polyester-Epoxy
    Blend (Hybrid)

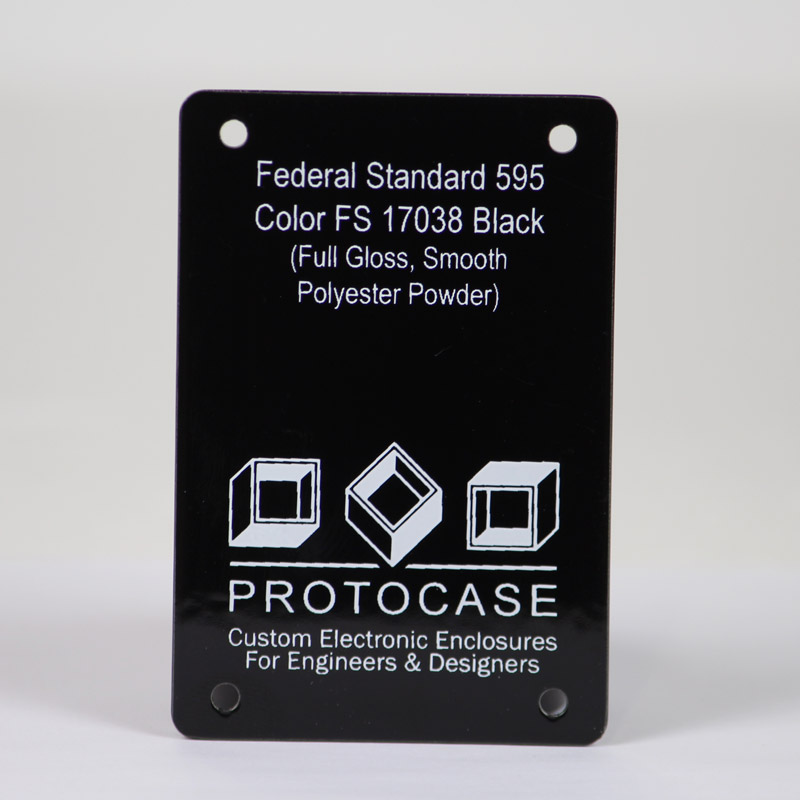

  • FS 17038 Black
    FS 17038 Black Full Gloss
    Smooth Polyester Powder
  • FS 37038 Flat Black
    Federal Standard 595
    Color FS 37038 Flat Black     Flat Smooth Epoxy Powder

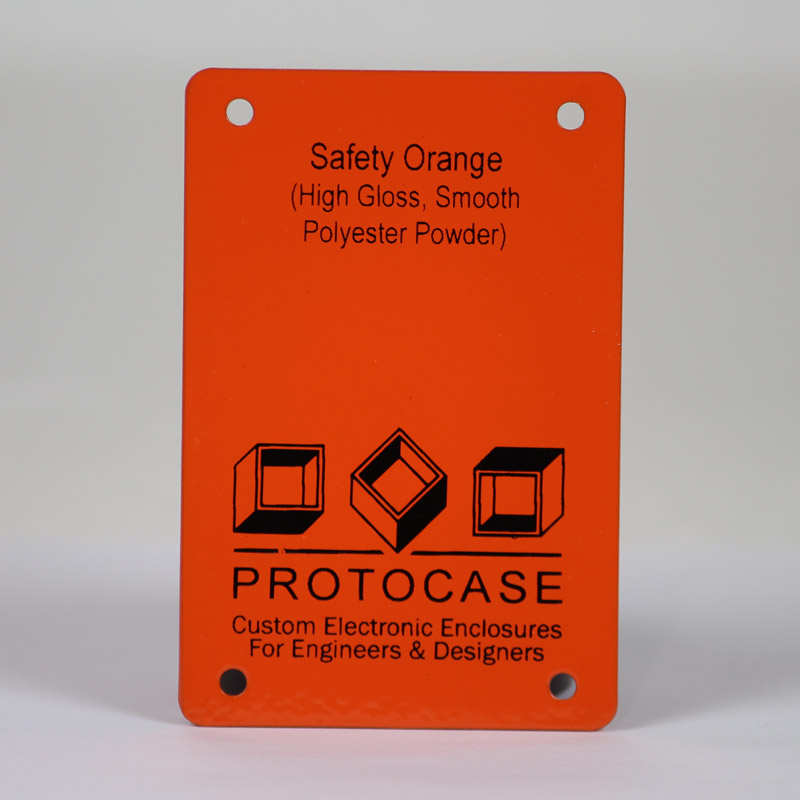

  • Safety Orange
    Safety Orange High Gloss
    Smooth Polyester
    Powder

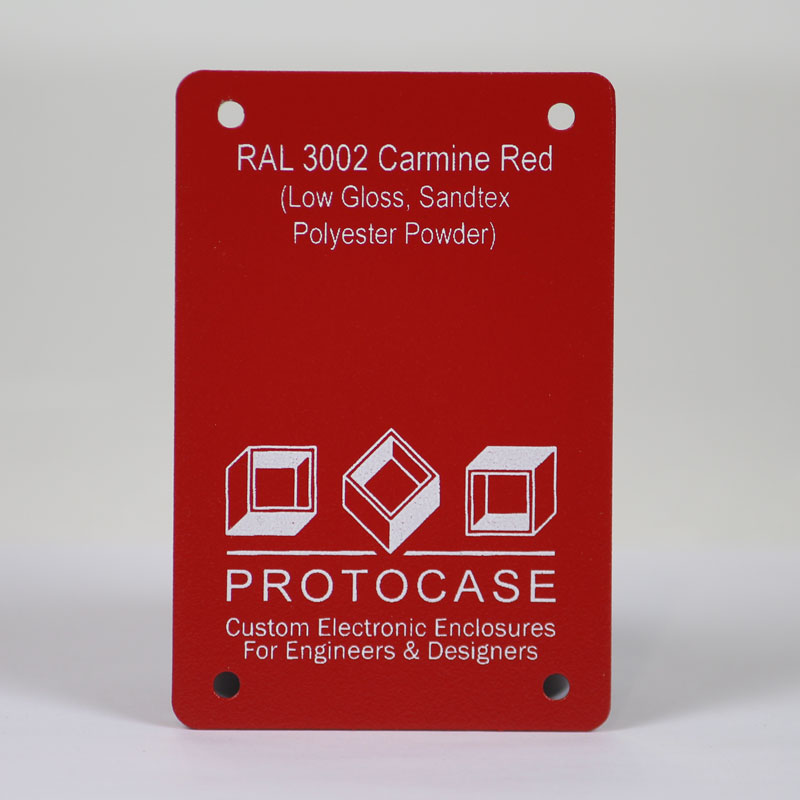

  • RAL 3002 Carmine Red
    RAL 3002 Carmine Red Low Gloss
    Sandtex Hybrid
    Powder

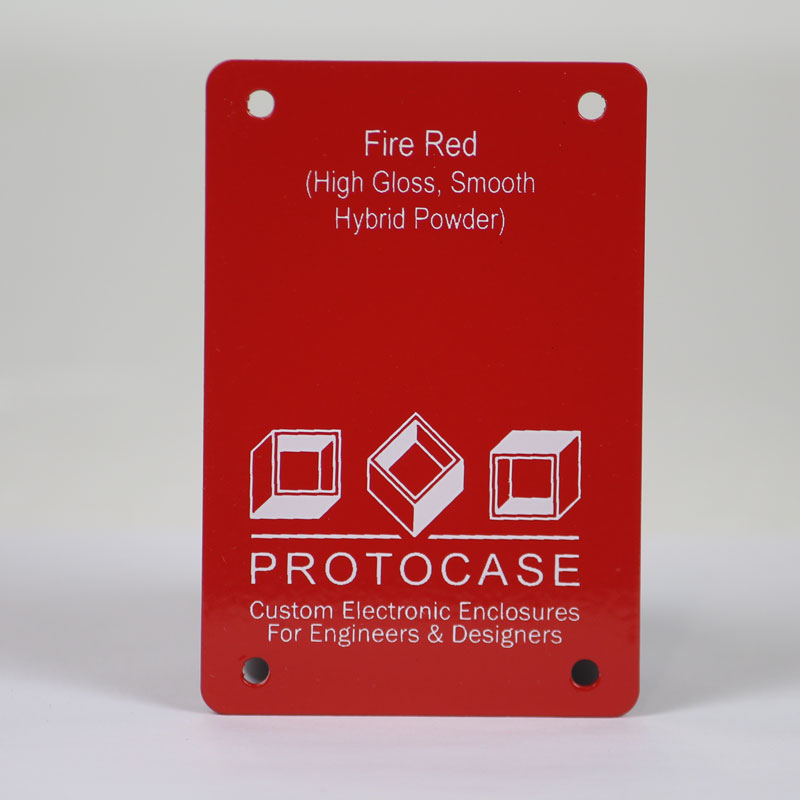

  • Fire red
    Fire Red High Gloss
    Smooth Hybrid
    Powder

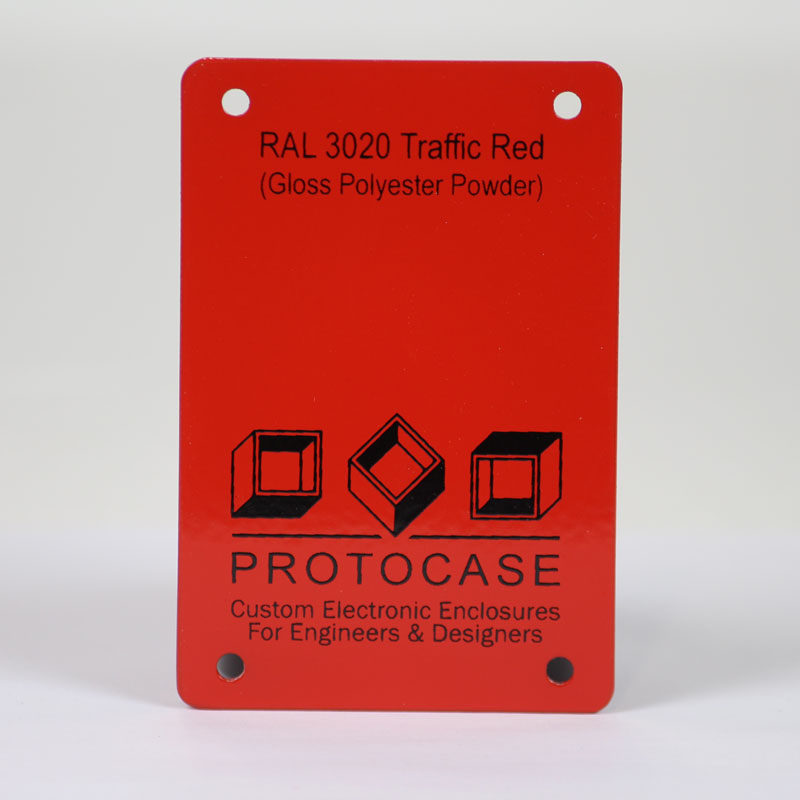

  • RAL 3020 Traffic Red
    RAL 3020 Traffic Red Glossy
    Polyester Powder

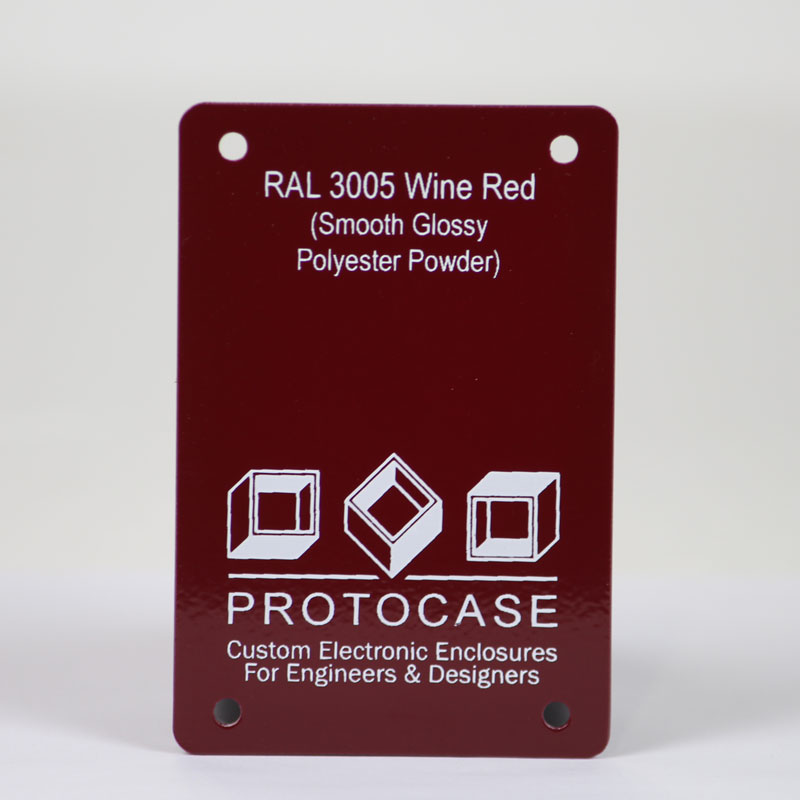

  • RAL 3005 Wine Red
    RAL 3005 Wine Red Smooth Glossy
    Polyester Powder

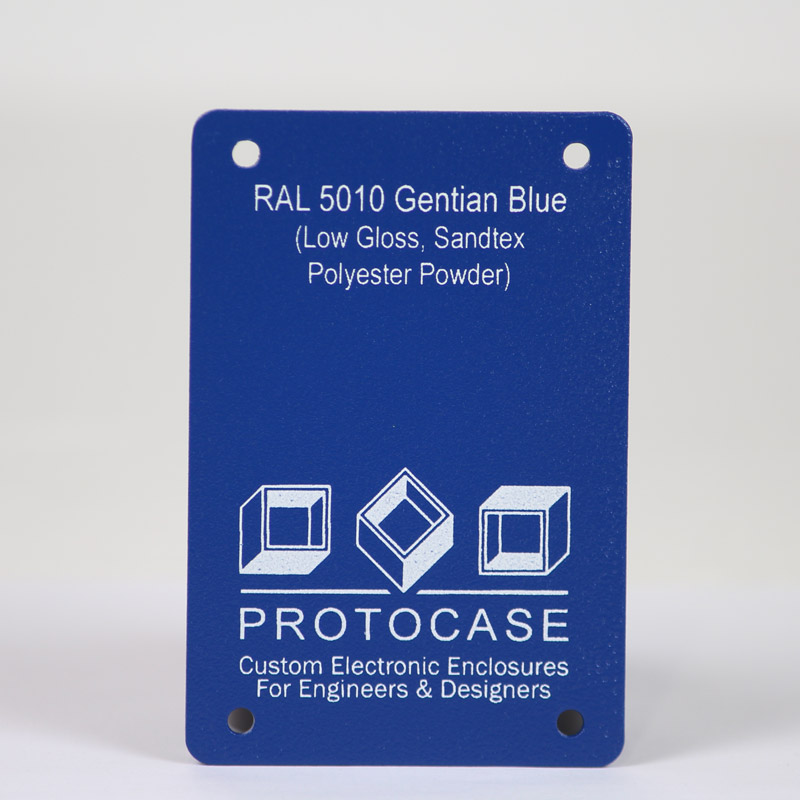

  • RAL 5010 Textured blue
    RAL 5010 Gentian Blue Low Gloss
    Sandtex Polyester
    Powder

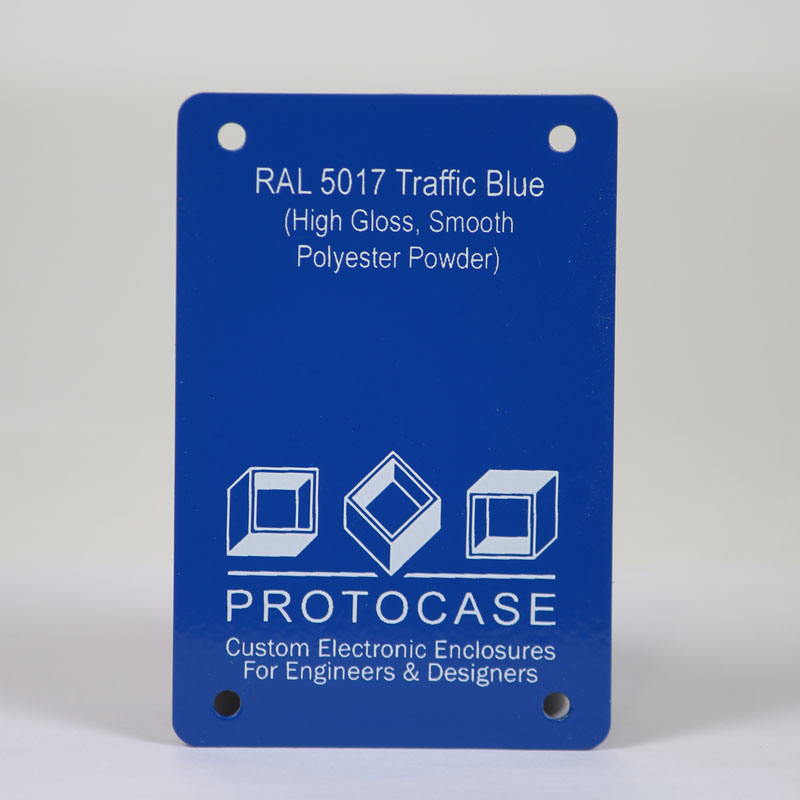

  • RAL 5017
    RAL 5017 Traffic Blue High Gloss
    Smooth Polyester
    Powder

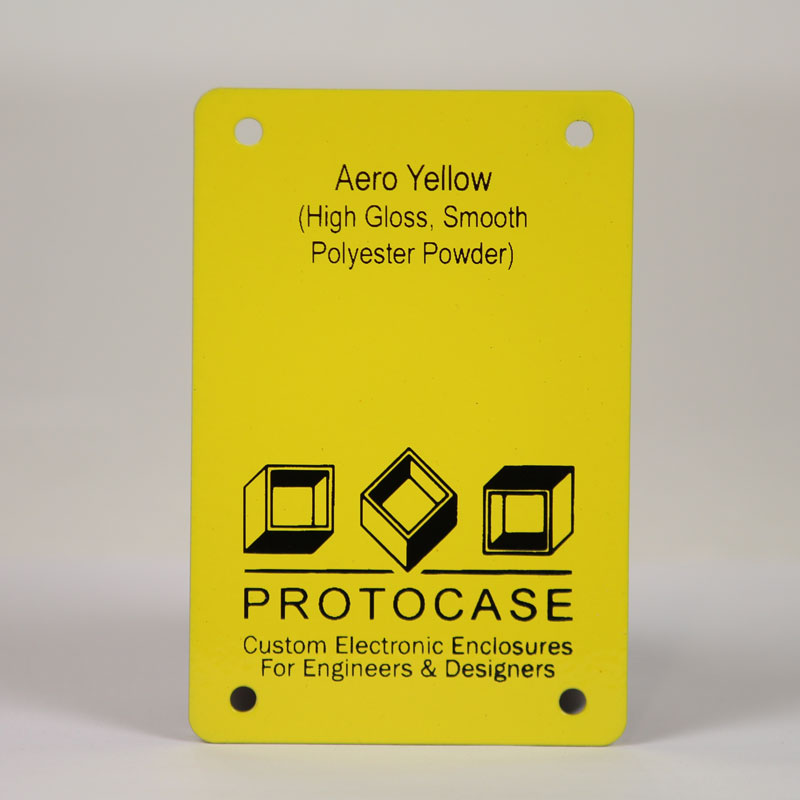

  • Aero yellow
    Aero Yellow High Gloss
    Smooth Polyester
    Powder

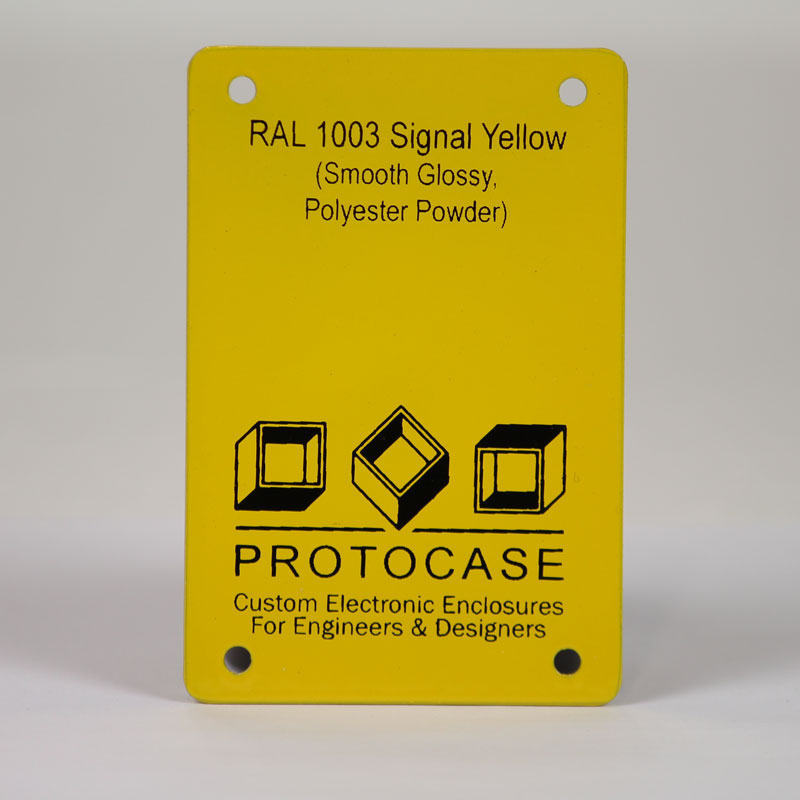

  • RAL 1003 Signal Yellow
    RAL 1003 Signal Yellow Smooth Glossy
    Polyester Powder

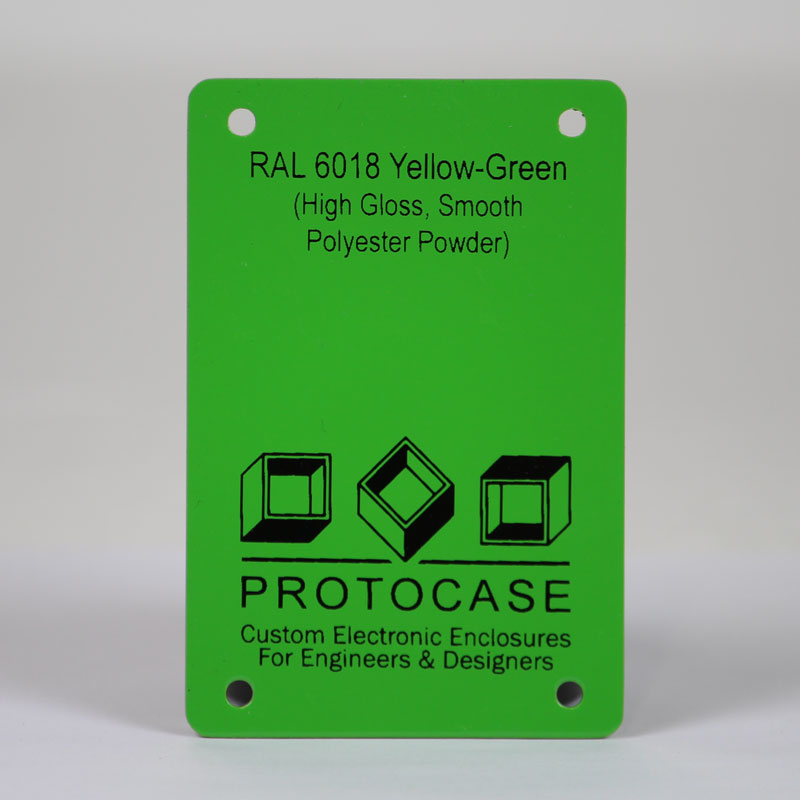

  • RAL 6018
    RAL 6018 Yellow-Green High Gloss
    Smooth Polyester
    Powder

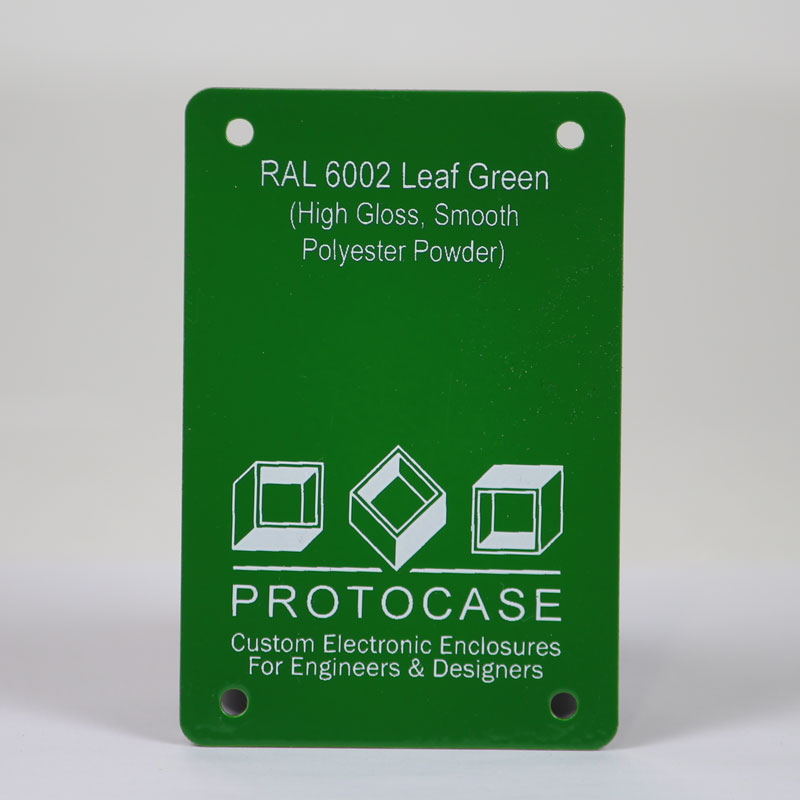

  • RAL 6002 - Leaf green
    RAL 6002 Leaf Green High Gloss
    Smooth Polyester
    Powder

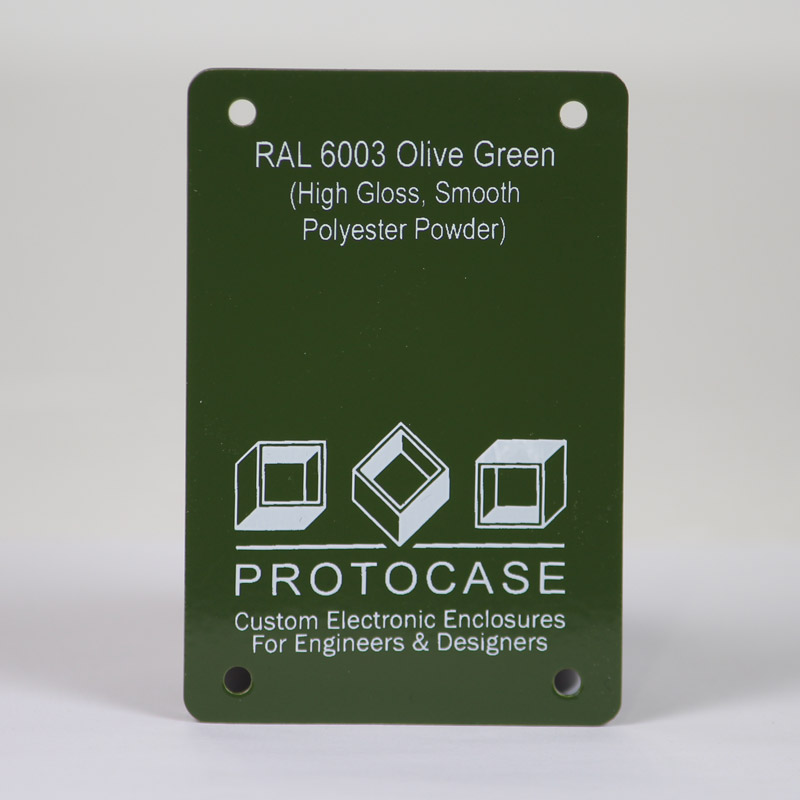

  • RAL 6003
    RAL 6003 Olive Green High Gloss
    Smooth Polyester
    Powder

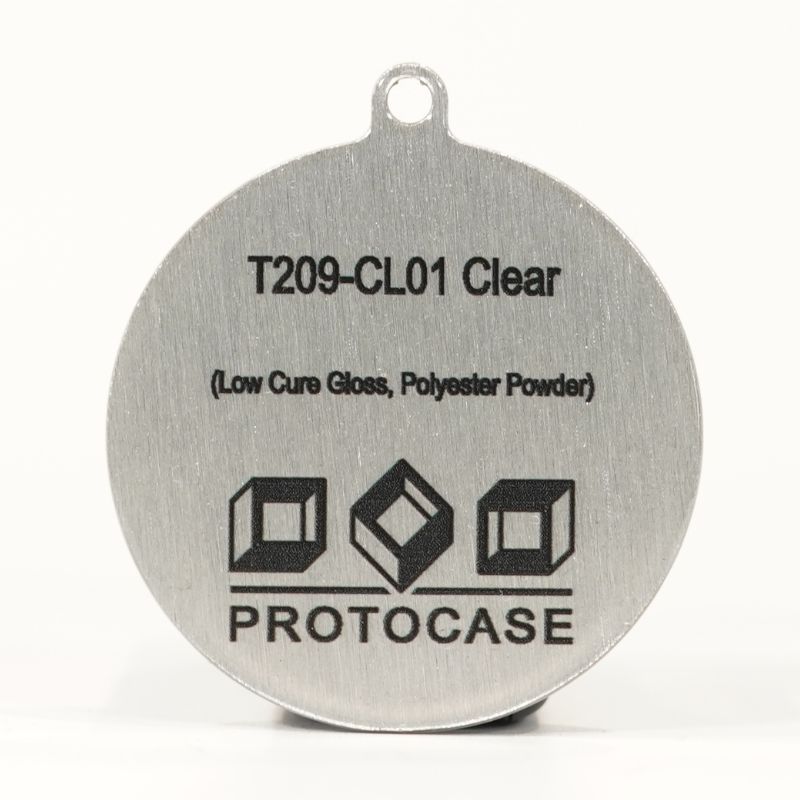

  • T209-CL01 Clear
    NEW T209-CL01 Clear Low Cure
    Gloss Polyester Powder

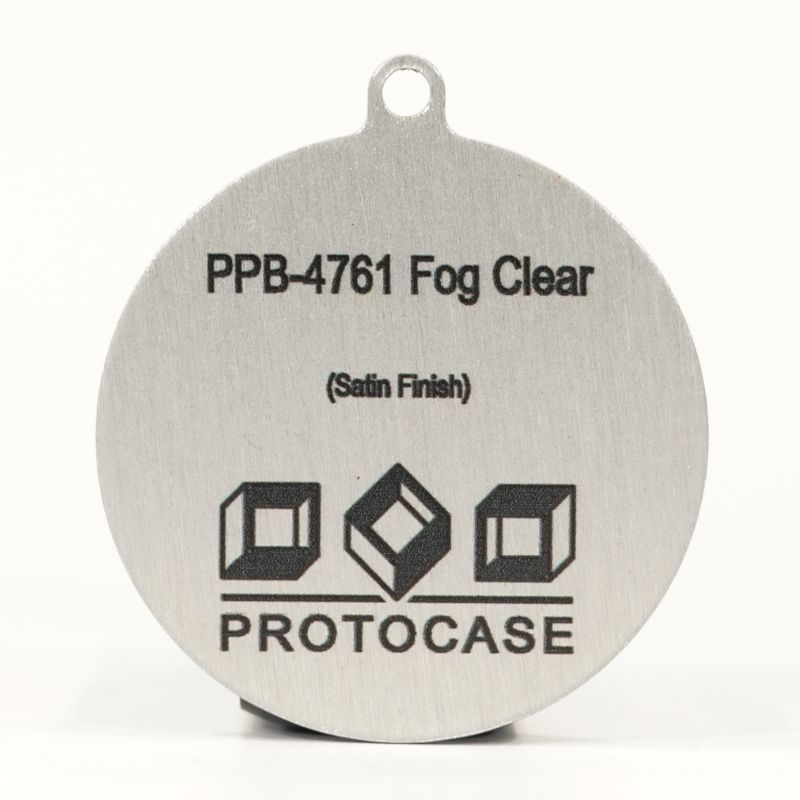

  • PPB-4761 Fog Clear
    NEW PPB-4761 Fog Clear Satin Finish

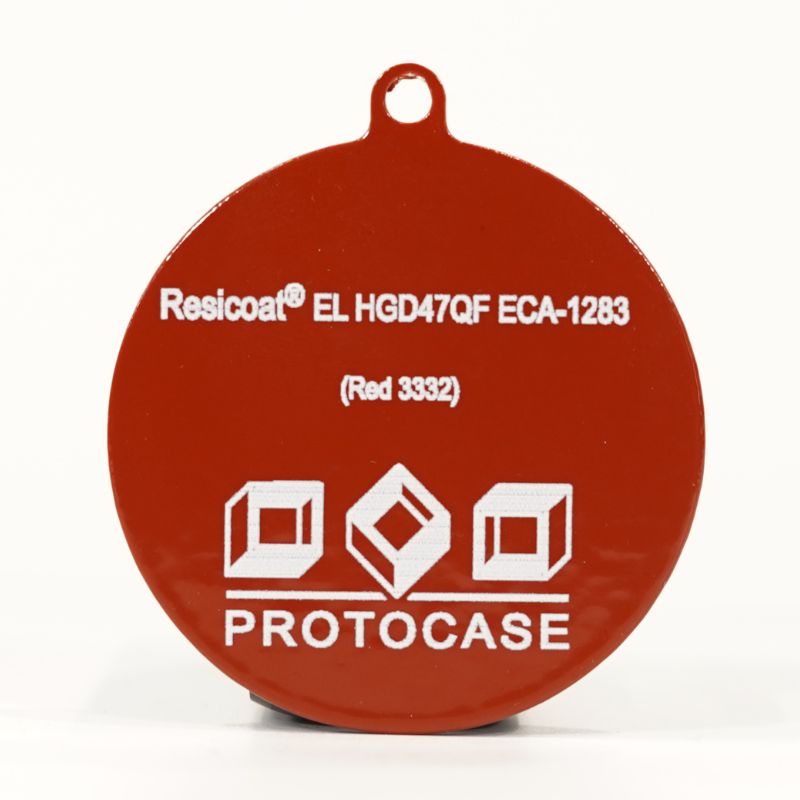

  • Resicoat® EL HGD47QF ECA-1283
    NEW Resicoat® EL HGD47QF ECA-1283 Red 3332
    Datasheet

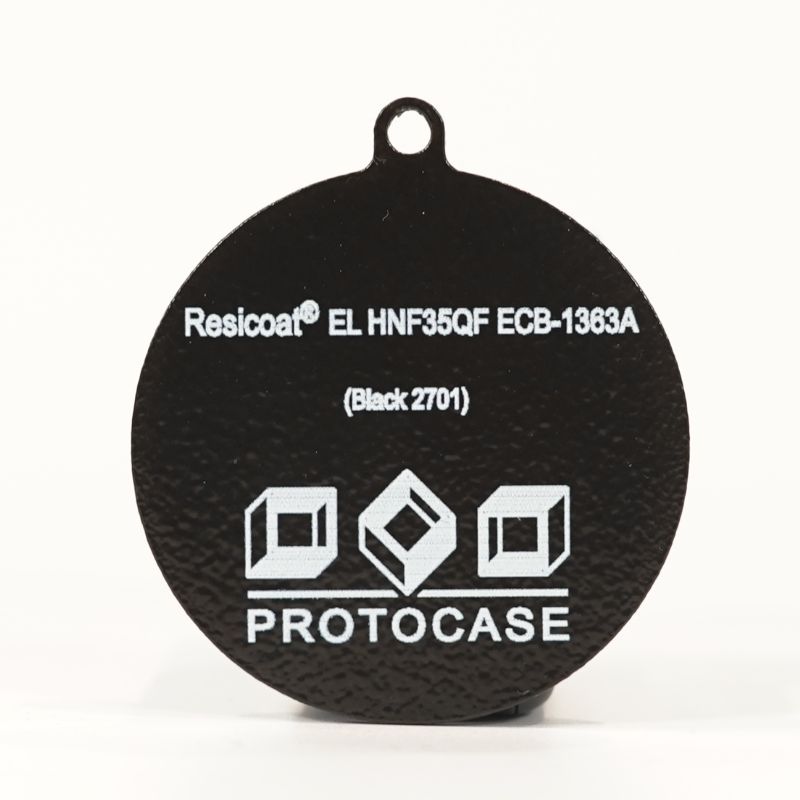

  • Resicoat® EL HNF35QF ECB-1363A
    NEW Resicoat® EL HNF35QF ECB-1363A Black 2701
    Datasheet

Please note: Digital print and silkscreening is not available on Rilsan 7280 Grey. Laser marking (ablate) is available.

Powdercoat Textures

Protocase offers a variety of textures when it comes to our stocked powdercoat colors:

  • Storm White
    Sandtex
  • Storm White
    Matte

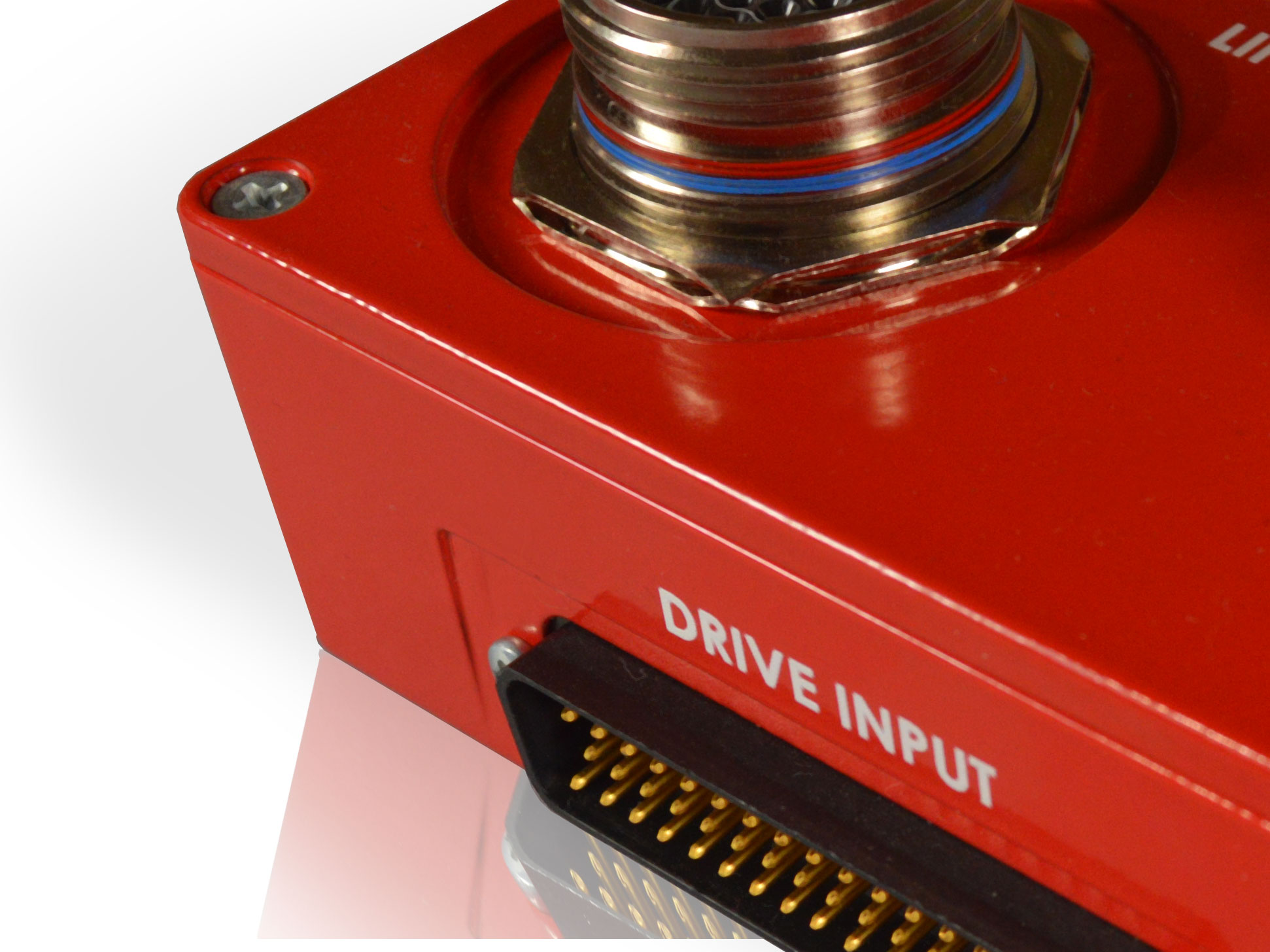

  • Storm White
    Gloss

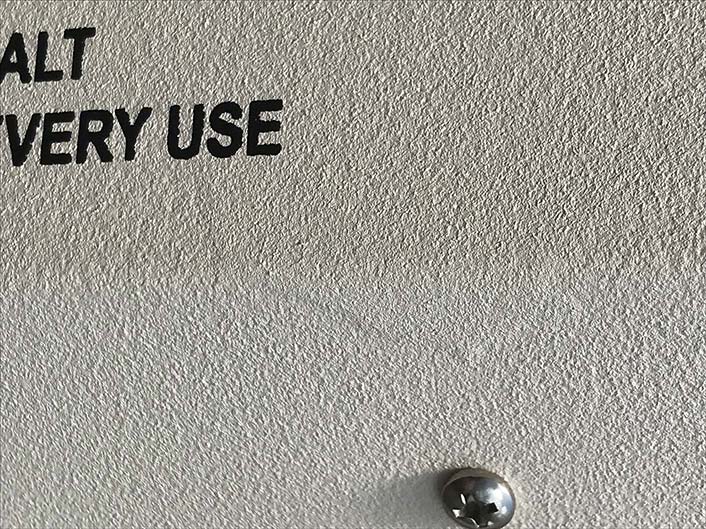

Powdercoat Consistencies

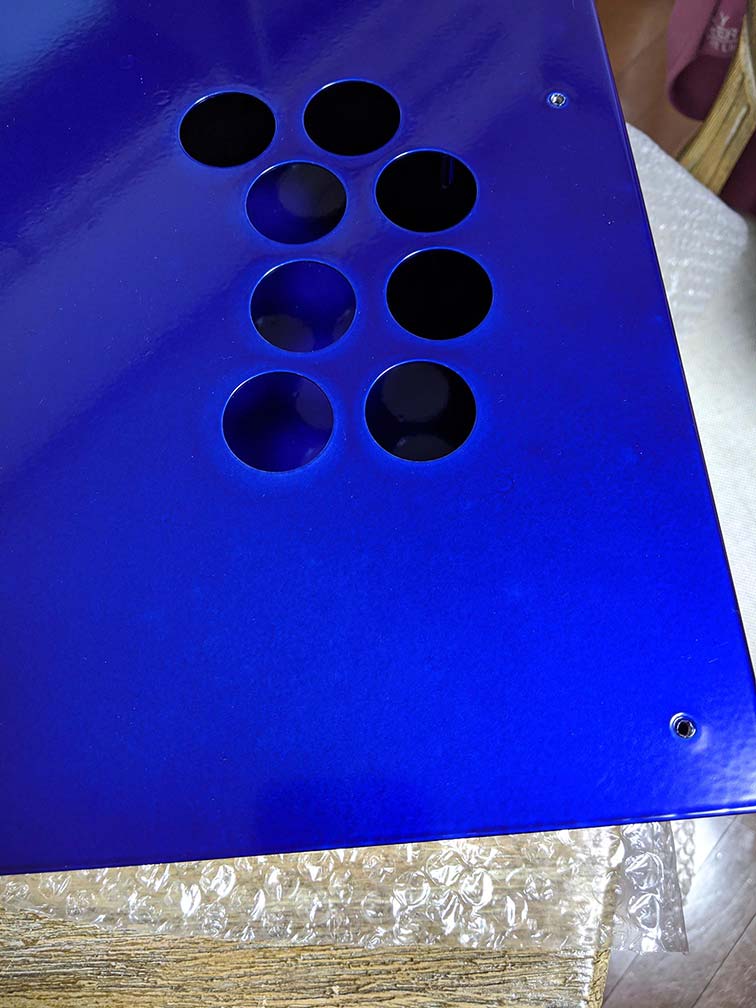

We strive for excellence with the goal of reducing Foreign Object Debris (FOD) and achieving consistency with all powdercoat finishes. However, due to some constraints of our facility, there may be minor blemishes on powdercoated parts. These blemishes are not distinguishable or seen at an arm’s length away.

Note: Photos have been zoomed in to show minor blemishes.
