Customizable Diecast Enclosures
Customized to Your Exact Specifications in 2-3 Days

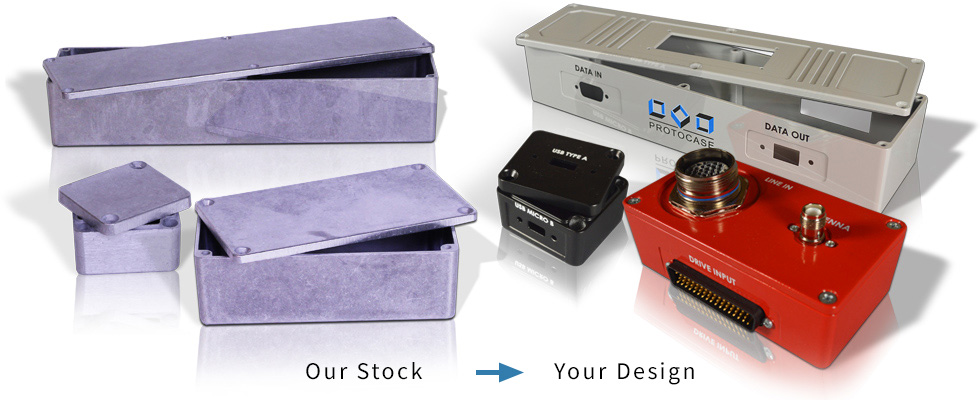

What are Customizable Diecast Enclosures?
Protocase now stocks aluminum diecast enclosures in a variety of styles and sizes, ready to be customized to your exact needs in 2-3 days, with no minimum orders.
Using the same industry-leading services our customers already depend on for fully custom machined enclosures from bar stock, our Customizable Machined Enclosures from Diecast Aluminum can be customized in the following ways:
- Custom cutouts, pockets, grooves and chamfers using our CNC machining
- Chem-film conversion coating for corrosion resistance, increased durability and electrical conductivity
- Powdercoat painted to your color of choice
- Accurate, beautiful labeling and branding via Digital Printing, Silkscreening, Laser Marking and Machined Engraving.
Customized in 2-3 days, with absolutely no minimum order - that's the Protocase way.
Why Choose Customizable Diecast Enclosures?
Customizable Diecast Enclosures are ideal for people who are looking for the durability and protection of a machined enclosure, but require the most cost-effective option available. Our Customizable Diecast Enclosures are available in a variety of sizes and styles, and offer protection against dust and water.
Customizable Diecast Enclosures are the most inexpensive way to achieve your design goals for a machined enclosure, without having to start from scratch.
How to Order a Machined Enclosure from Diecast Aluminum:
-
1. Choose your enclosure.
Choose from: Standard Diecast, Watertight Light Duty and Watertight Heavy Duty. -

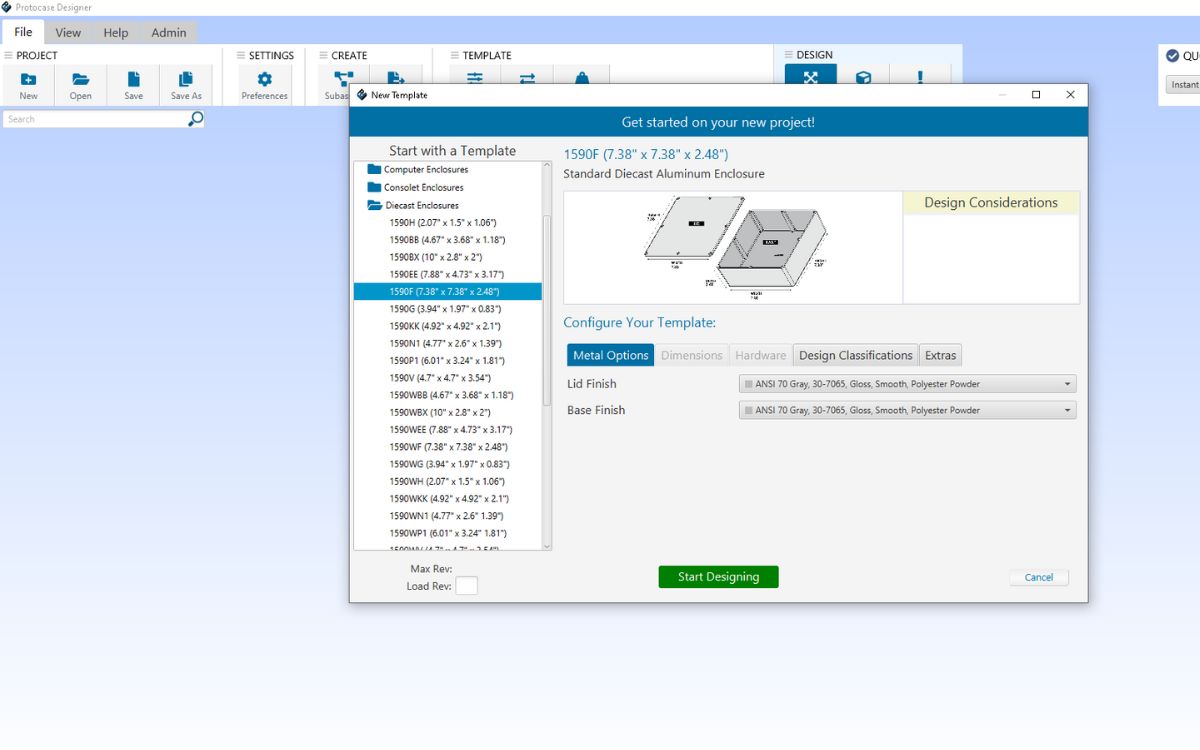

2. Download the file.
We supply DXF, STP, IGS and PDF for your chosen Diecast enclosure. -

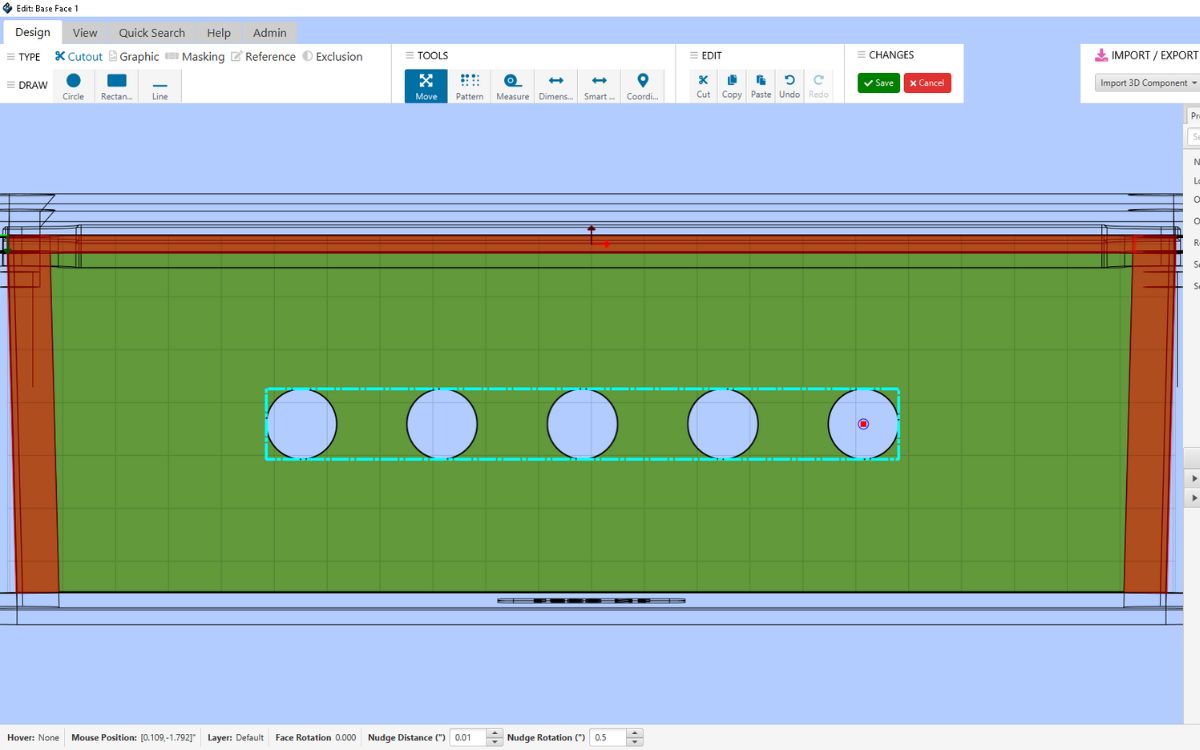

3. Make your desired changes.
Using your CAD software of choice, or on the PDF file provided. -
4. Send us your customized file.
Submit your finished design to your account manager or upload using Request a Quote.
To save even more time, our design services team can complete your design exactly to your specifications, for a reasonable hourly fee. Email info@protocase.com to get started.
Choose a Diecast Aluminum Enclosure Style:
| Part Number | Dimensions | Watertight | Tolerance | ZIP File | ||
|---|---|---|---|---|---|---|
| Height | Width | Depth (Less Lid) |
(Includes dxf, igs, stp & pdf) | |||
| 1590H | 2.07"|52.5mm | 1.50"|38mm | 1.06"|27mm | No | ± 0.020" | 0.508mm | Download 1590H |
| 1590G | 3.94"|100mm | 1.97"|50mm | 0.83"|21mm | No | ± 0.020" | 0.508mm | Download 1590G |
| 1590BB | 4.67"|119mm | 3.68"|94mm | 1.18"|30mm | No | ± 0.020" | 0.508mm | Download 1590BB |
| 1590V | 4.70"|120mm | 4.70"|120mm | 3.54"|90mm | No | ± 0.020" | 0.508mm | Download 1590V |
| 1590N1 | 4.77"|121.1mm | 2.60"|66mm | 1.39"|35.3mm | No | ± 0.020" | 0.508mm | Download 1590N1 |
| 1590KK | 4.92"|125mm | 4.92"|125mm | 2.10"|53mm | No | ± 0.020" | 0.508mm | Download 1590KK |
| 1590P1 | 6.01"|153mm | 3.24"|82mm | 1.81"|46mm | No | ± 0.020" | 0.508mm | Download 1590P1 |
| 1590F | 7.38"|188mm | 7.38"|188mm | 2.48"|63mm | No | ± 0.020" | 0.508mm | Download 1590F |
| 1590EE | 7.88"|200mm | 4.73"|120mm | 3.17"|80mm | No | ± 0.020" | 0.508mm | Download 1590EE |
| 1590BX | 10.0"|254mm | 2.80"|70mm | 2.00"|51mm | No | ± 0.020" | 0.508mm | Download 1590BX |

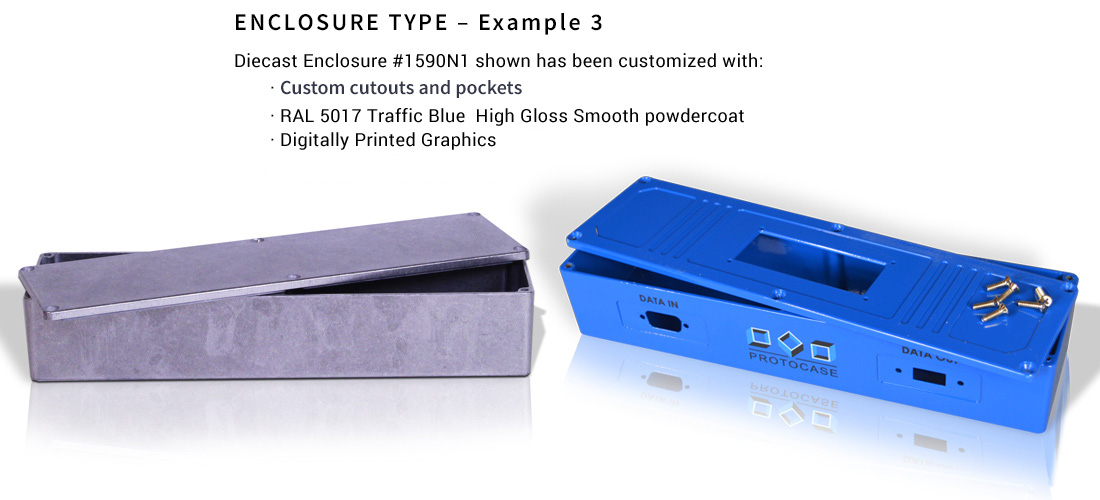

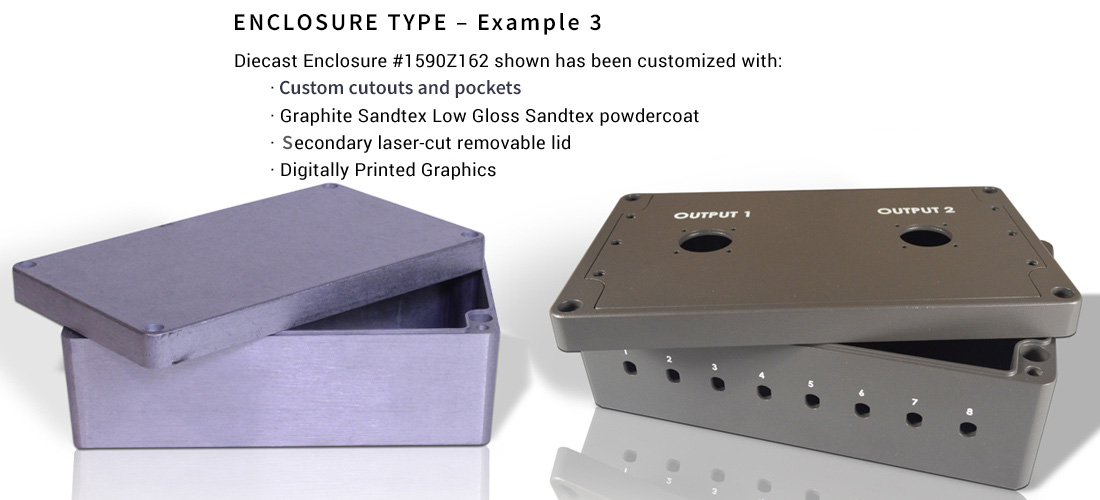

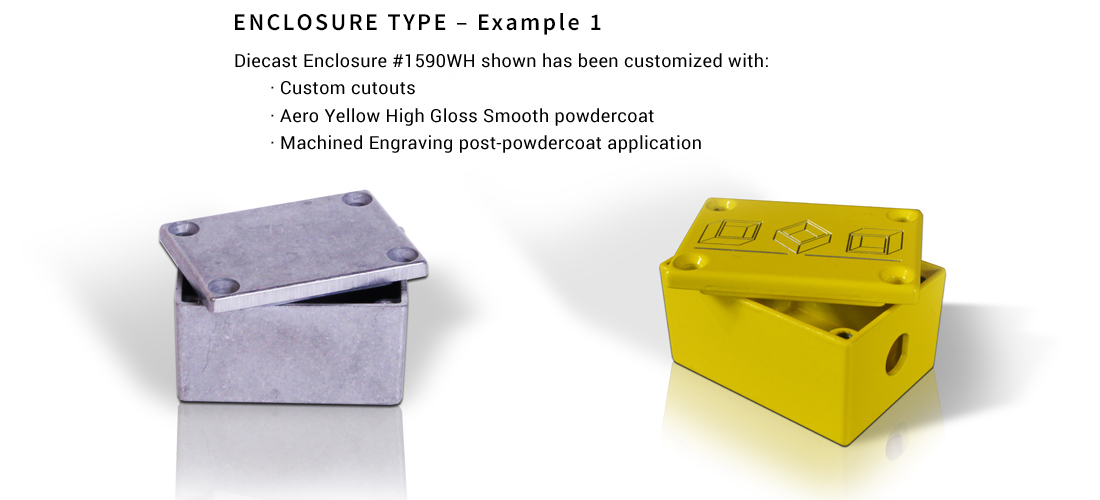

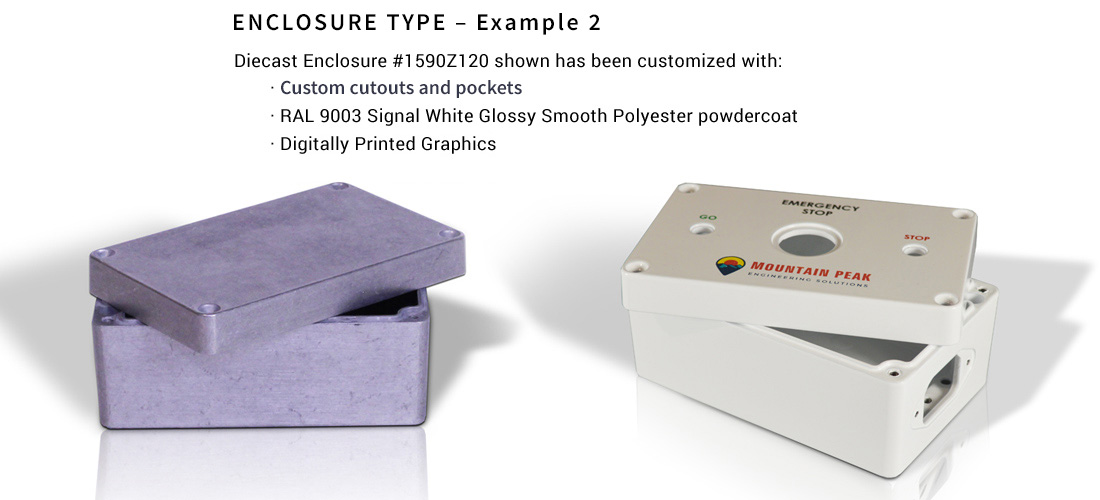

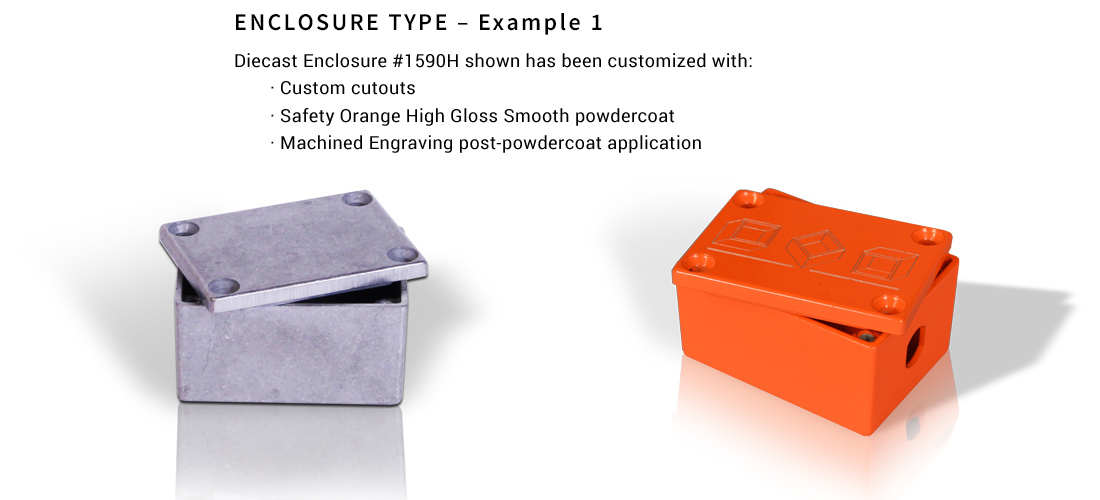

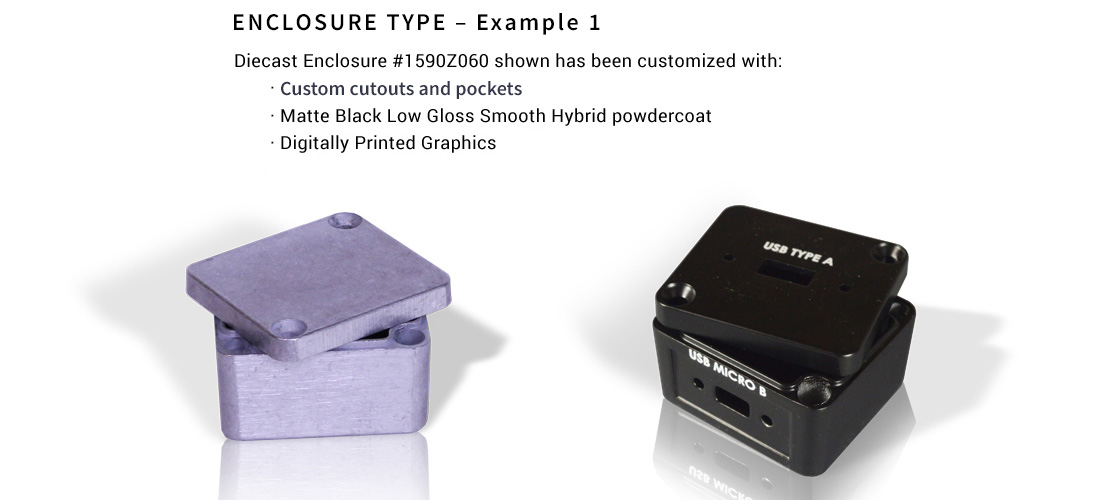

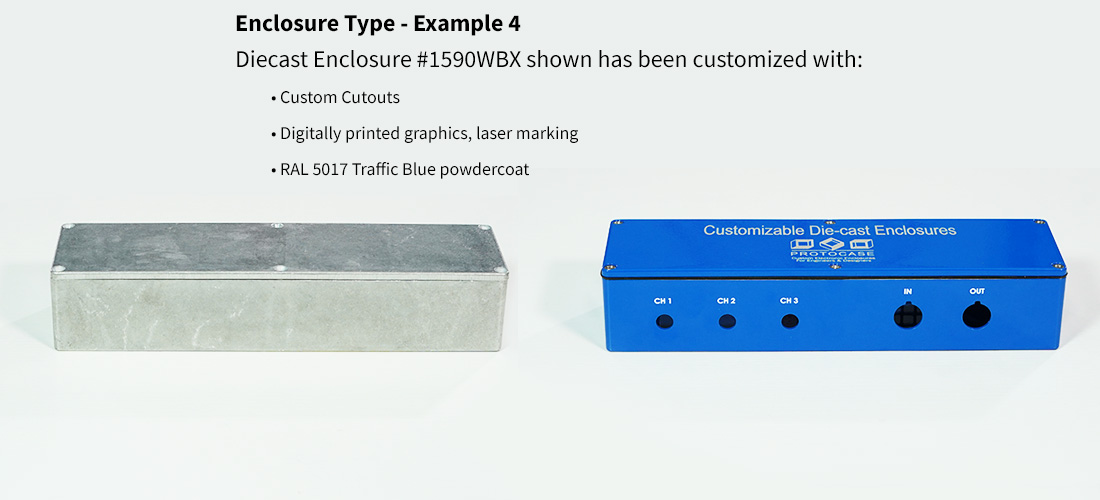

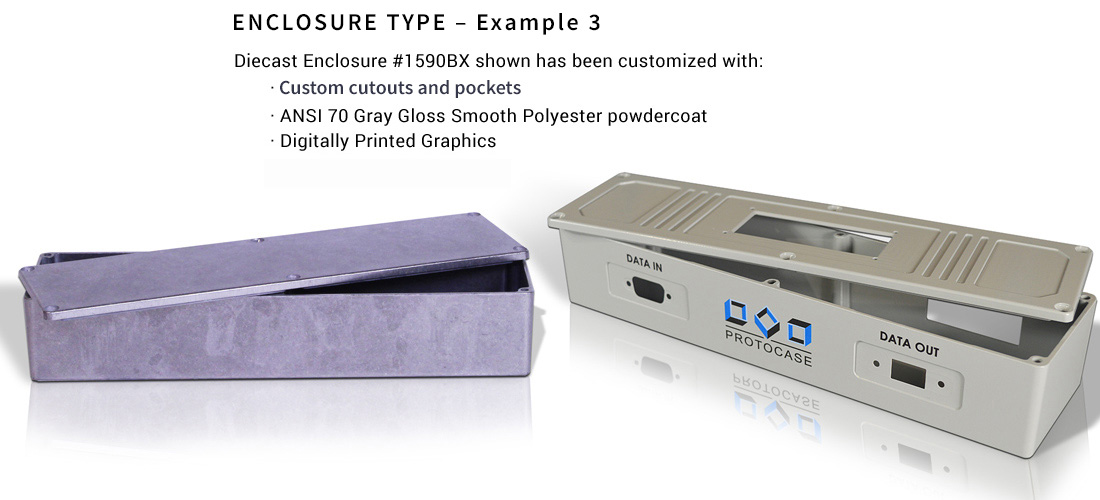

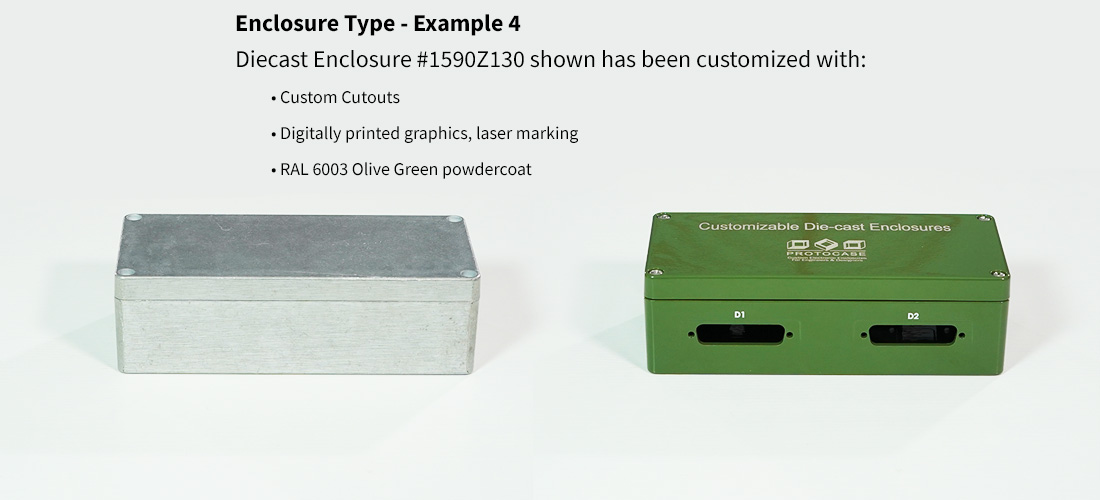

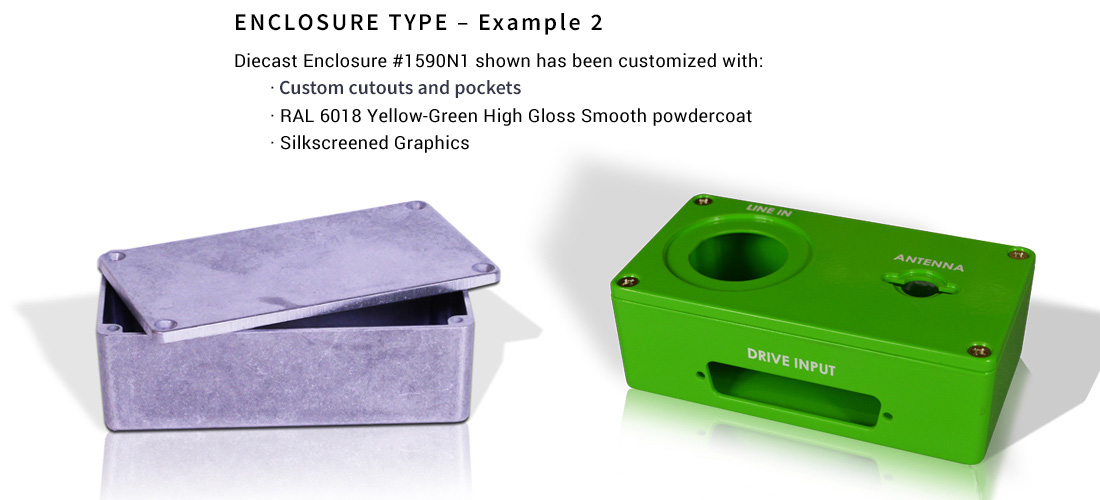

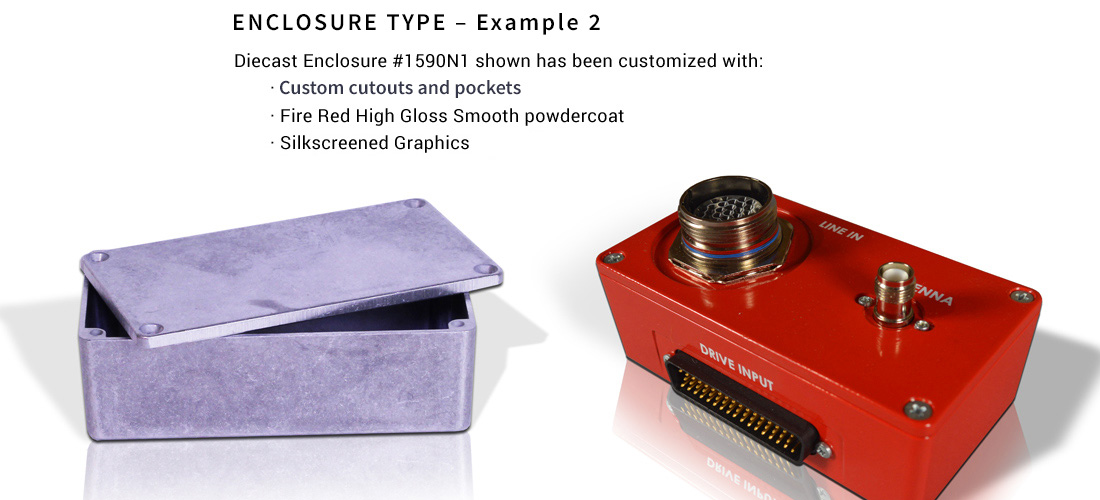

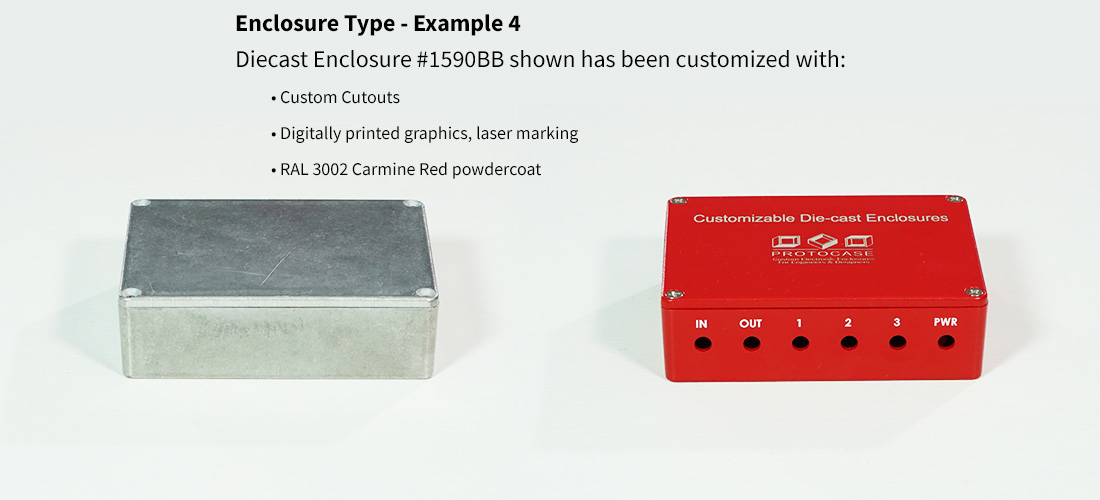

Customized Standard Diecast Examples:
- Diecast aluminum alloy that is rugged, yet easy to machine
- Lap joint construction protects against dust and splashing water, as well as provides improved EMI/RFI shielding
- Smooth surface with no sharp edges
- Designed to meet IP54
- Low side wall draft angle (2 degrees or less) for easy PC board mounting

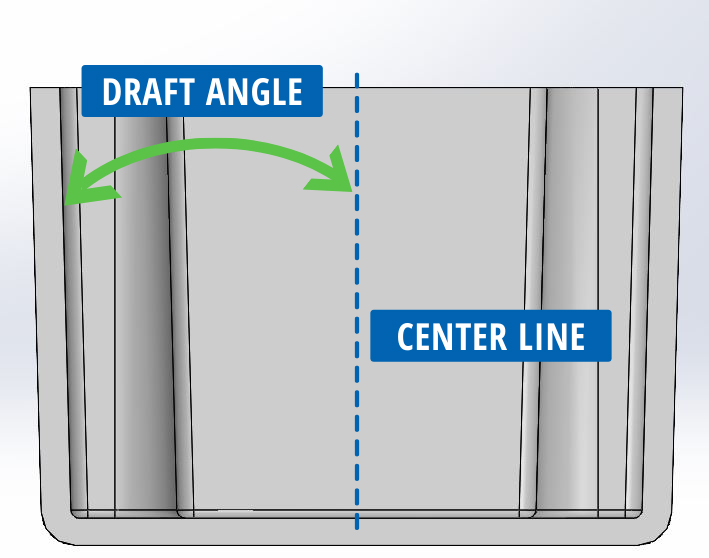

Draft Angle:
Tolerances
- Manufacturing tolerance for the stocked diecast aluminum enclosures we offer are noted in that tables above.
- Our standard CNC machining tolerances is ±0.005” (0.127mm). As a result, all cutouts and machined features on a single face will be ±0.005”. relative to one another only.
- Our standard CNC machining tolerance and the manufacturing tolerance of the diecast aluminum enclosure will stack. For example, for a diecast aluminum enclosure being customized, the actual tolerance on your cutouts could be ±0.025” (±0.020” + ±0.005”), depending on how the part is set up in our machine.
- If you require a tighter tolerance from a certain location, please be sure to relay this information to your Protocase Account Manager when requesting a quote so that our Engineering & Design Services team can be made aware.
- For example, if you require a tolerance of ±0.005 from the right edge of a face, the “leftover” tolerance would be applied relative to the left side of the face, which would mean the tolerance would be ±0.025” from the left side.
- Note: Leftover tolerances can only be applied to one of two perpendicularly opposed edges on a face. (For example, this tight tolerance rule could be applied to the top and right edge, but not the left and right edges).
- The way in which we choose what edge to reference is arbitrary. If you need to have a tolerance tighter than ±0.025” from any edge, please let your Protocase Account Manager know.
