Protocase manufactures fully finished custom electronic enclosures and associated parts from a wide variety of materials and components, in 2-3 days with no minimum order. Protocase also provides expert and affordable enclosure design services.

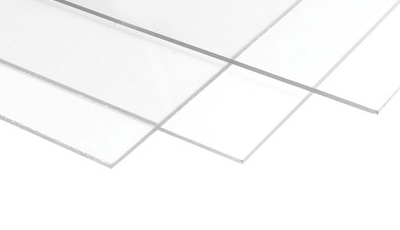

Acrylic
Acrylic is a lightweight, high impact material with excellent transparency, and superior weatherability.
Acrylic sheets offer properties similar to glass such as clarity, brilliance and translucence, but is lighter and has better impact resistance.
Acrylic is used on a regular basis with enclosure design, to provide clear windows into cases.
Finish:
Unfinished
Fasteners:
We currently do not install any fasteners into acrylic. When we use Acrylic on an enclosure we usually install self-clinching nuts or studs into the mating metal parts to screw into.
Stocked Sheets for Acrylic
| Type | Thickness | ASTM Standard Thickness Tolerance |
|---|---|---|
| Clear Acrylic | 0.060" | 1.5 mm | ± 0.006" |
| Clear Acrylic | 0.118" | 3.0 mm | ± 0.012" |
| Clear Acrylic | 0.236" | 6.0 mm | ± 0.012" |
Please note: Our suppliers have provided the material data above, with the nominal thicknesses based on industry standards.
