Rivets fasten two parts together through a concentric hole. The end result is a simple, aesthetically pleasing look that is durable and strong.

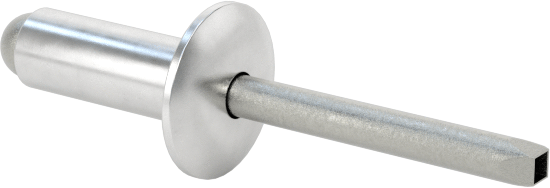

We stock blind rivets, which are sometimes referred to as POP rivets. With blind rivets, there is no access to the rear (blind) side of the joint.
For installation, the rivet is seated inside a hole that has been cut into the metal. Then, a blind rivet tool pulls the mandrel against the hat of the rivet. The mandrel’s bulge makes the edges of the rivet to expand down towards the material and permanently install the rivet.
Rivets can be used in many different ways in sheet-metal design. Here are a few examples:
We stock both domed and countersunk options for rivets.
Domed
Countersunk

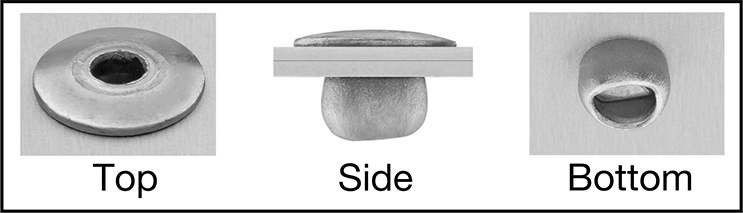

Domed rivets will have a slightly rounded top that will have a raised profile from the metal’s surface into which it’s being installed.

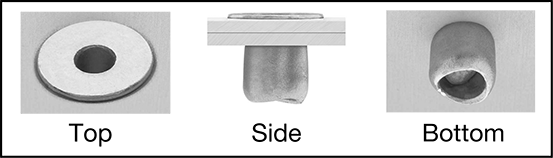

Countersunk rivets will have a flush surface with the metal, and requires a countersink in order for the rivet to sit properly in the material.
| Rivet Type | Diameter | Material Thickness Range |
|---|---|---|
| Aluminum Blind Rivet, Domed | 0.094” | 2.388mm | .032” - 0.125” (0.813mm - 3.175mm) |
| Aluminum Blind Rivet, Countersunk | 0.125” | 3.175mm | 0.126” - 0.187” (3.2mm - 4.75mm) |
| Zinc-Plated Steel Blind Rivet, Countersunk | 0.125” | 3.175mm | 0.188” - 0.25” (4.775mm - 6.35mm) |
If you require another rivet for your design, contact us – we can order it as a non-stock request. These rivets may need to be ordered with a minimum quantity, are subject to vendor availability and may extend manufacturing lead times.
In order to properly install a rivet, the material into which it is being installed must meet the material thickness range noted above.
Rivets can be installed in any of our sheet metal types. However, we do not recommend cold-rolled steel that is not powder-coated as the material will likely rust under the rivet head.
Powder coat is typically applied prior the rivet process.
Rivets are compatible with secondary finishes such as anodizing, chemical conversion coating and more, so long as the rivet’s material is compatible with the process.
