Introduction

Whether you design your enclosure from scratch or make use of one of our simple template-based designs, knowing the basics of enclosure design will make your work easier.

This page offers information on basic concepts of enclosure and sheet metal design. Looking for more info? Email info@protocase.com. One of our technicians will be happy to answer your questions.

Metal Selection

Major considerations for the metal selection are the types of metal and their thickness. Protocase Inc. offers a variety of standard materials as standard offerings including Cold Rolled Steel, Stainless & Galvanneal, Aluminum and Copper.

Please note how different materials respond with corrosion, welding, powdercoating and more.

Bending Metal and Bend Radius

Sheet metal enclosures are fabricated by 'cold forming', where the metal is clamped and bent in machines called 'press brakes'. As a result, metal typically cannot be formed into a true 90 degree corner. Instead, the corners are curved.

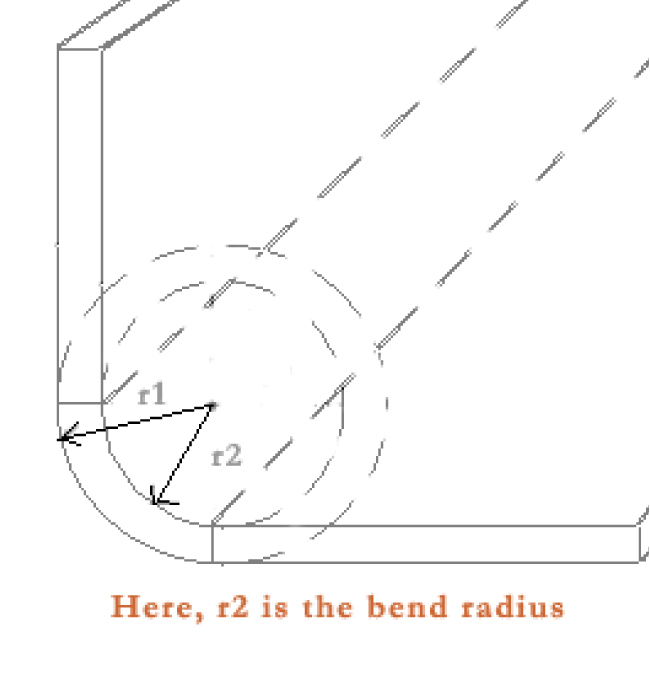

Different degrees of curvature can be achieved, and it is described by a parameter called 'bend radius.' Note that bend radius is specified as the radius of the INSIDE surface of the bend.

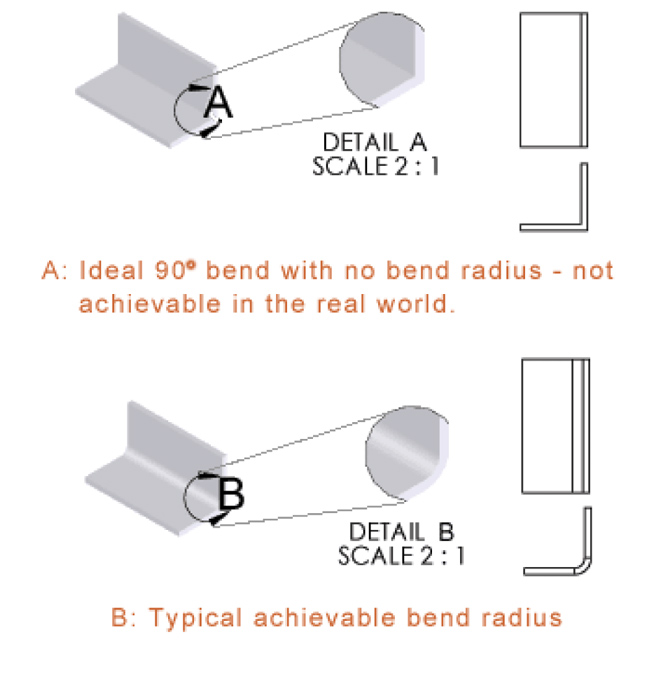

Bend Radius Diagrams:
CNC Milling by Protocase CNC Milling by Protocase

Fasteners

Self-Clinching fasteners are threaded nuts, studs, or standoffs that are mechanically pressed into sheet metal to provide solid fastening points.

Welding

Welding Diagrams:

Depending on your sheet metal design, you may desire spot-welded enclosures or fully seam-welded enclosures. With many enclosure designs, such as our standard U-shape (clam shell), no welding is required. One section of the enclosure contains small flanges with self-clinching nuts and the other section of the enclosure is fastened using mechanical fasteners such as machine screws or sheet metal screws.

Spot welding would be used in cases where disassembly is not required. Fully seam welded edges may also be a requirement, especially if the application requires a more tightly sealed enclosure. Protocase offers both spot-welded and fully seam-welded enclosures.
