Protocase manufactures fully finished custom electronic enclosures and associated parts from a wide variety of materials and components, in 2-3 days with no minimum order. Protocase also provides expert and affordable enclosure design services.
Electronic Enclosures
Pelican Panels
Fully Finished Built in 2-3 Days
No minimum order
Need custom panels for a Pelican case? Protocase makes it an easy one-stop shop experience, with
time-saving design and quoting tools.
Design your custom panel for specific Pelican cases and their corresponding panel frame kits in Protocase Designer, our free CAD software. Add custom cutouts, fasteners, hardware, finishes and graphics in order to suit your exact requirements and application.
Quote your design instantly in Protocase Designer, as many times as you’d like. Order your custom panels for Pelican cases when you’re ready.
We’ll manufacture your custom panels in 2-3 days, with no minimum order.

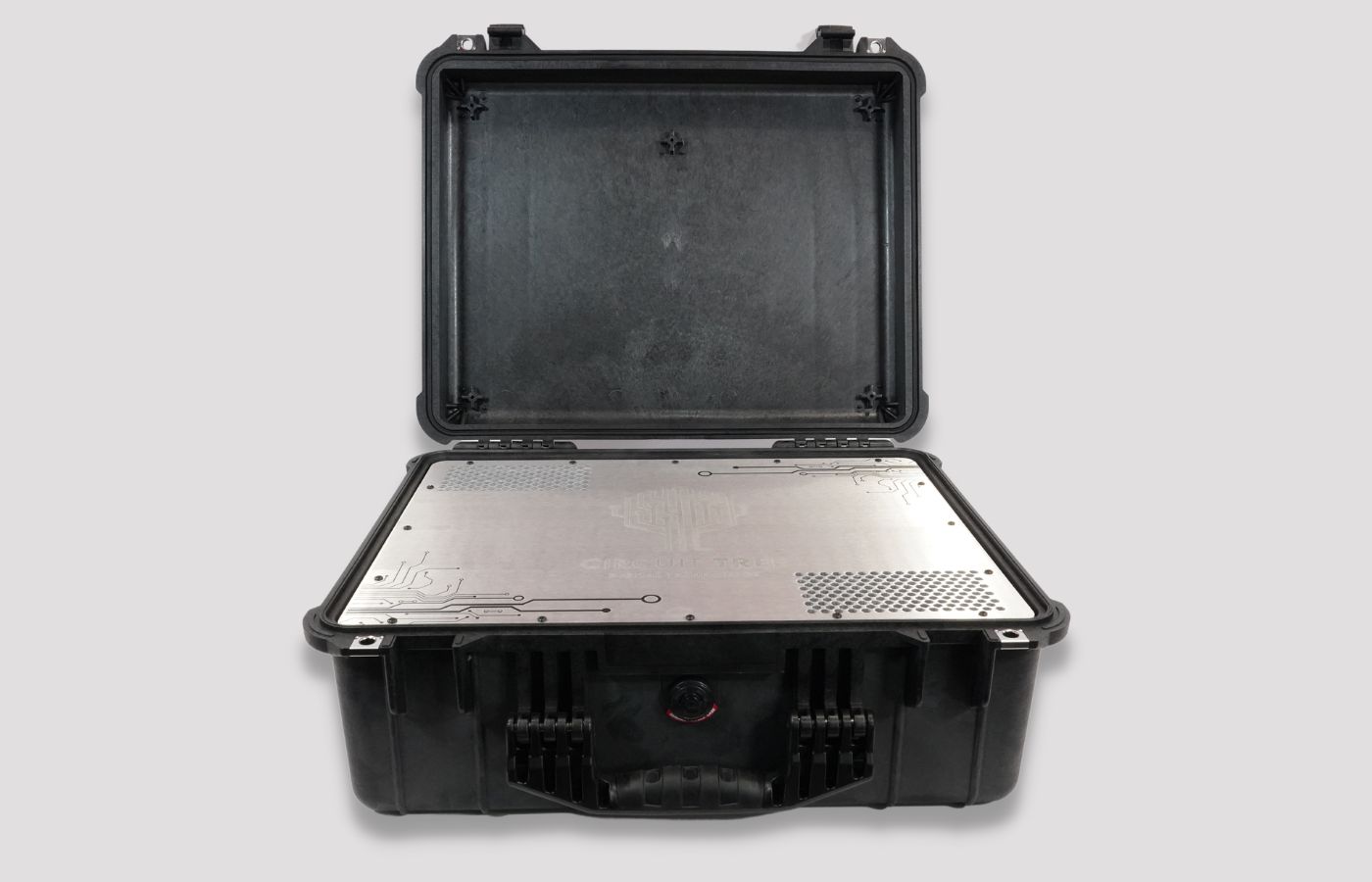

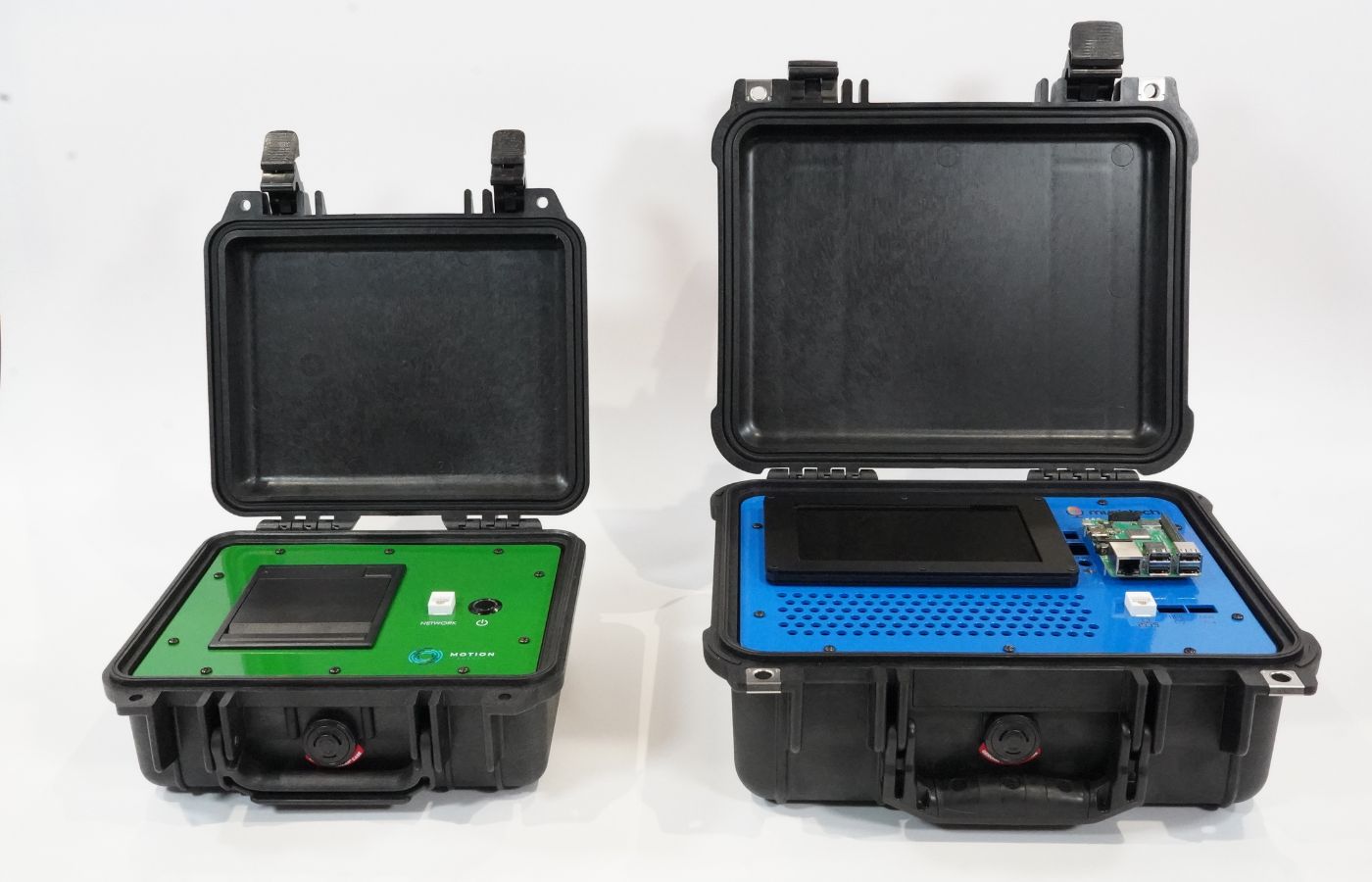

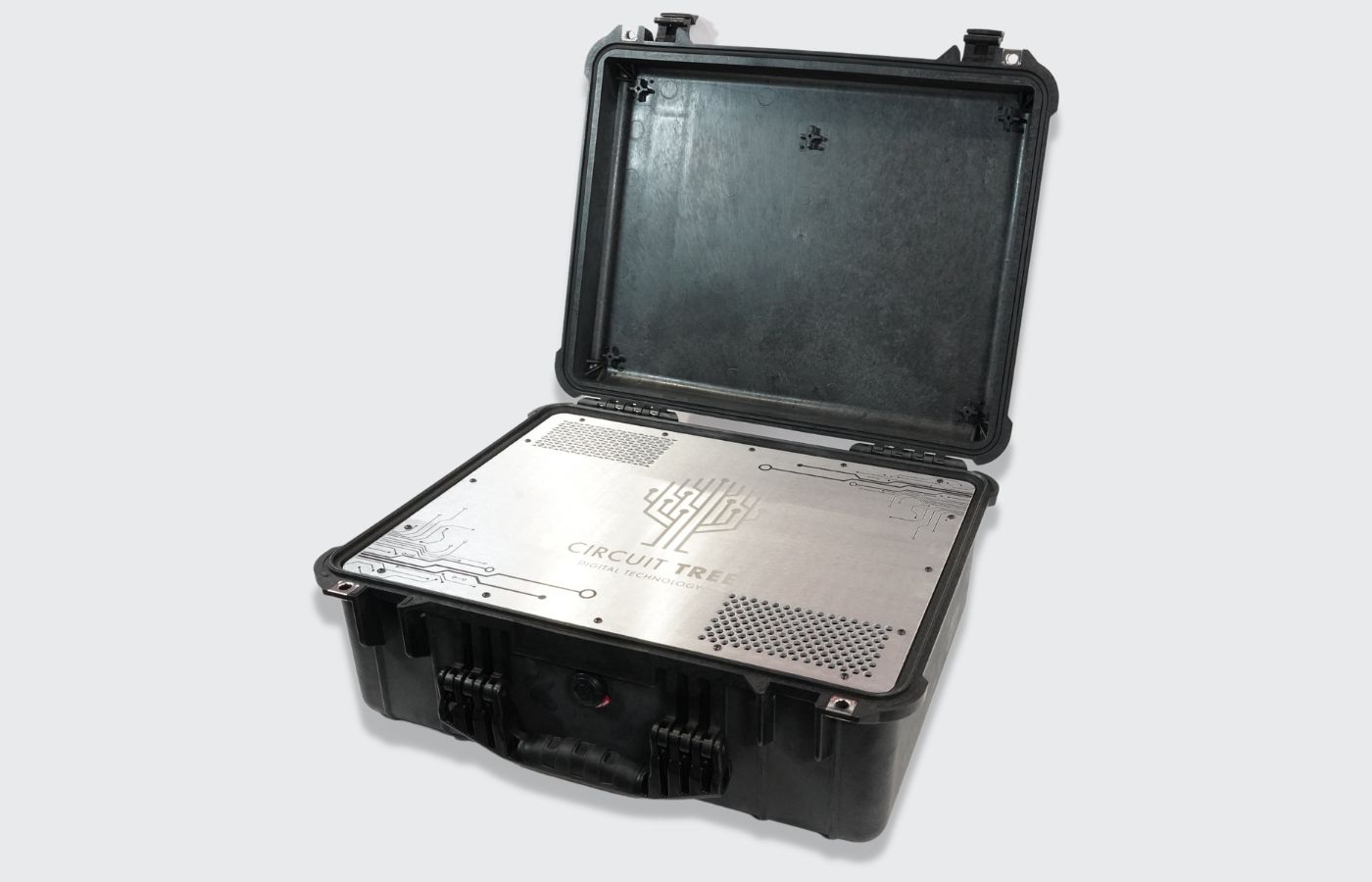

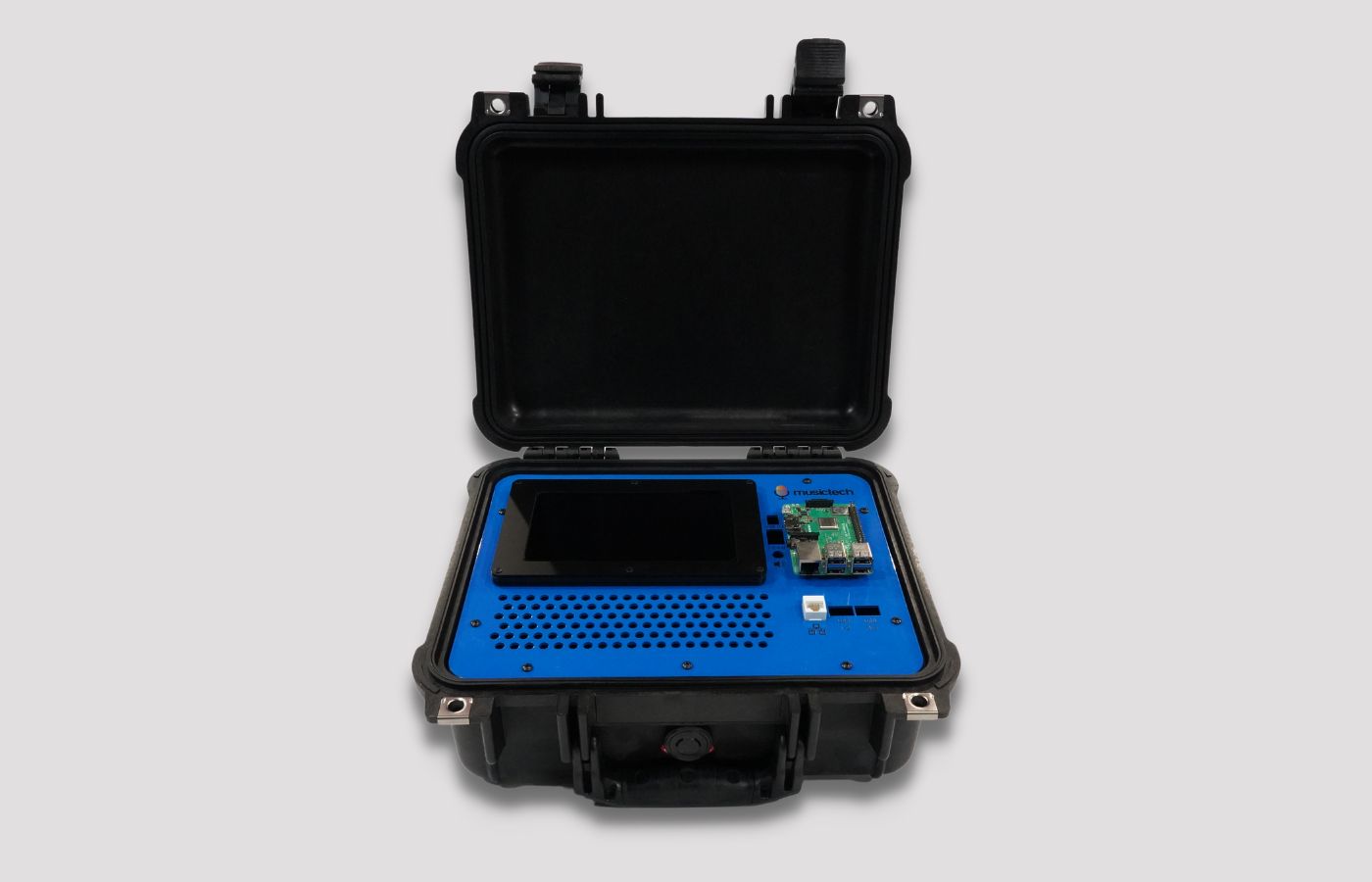

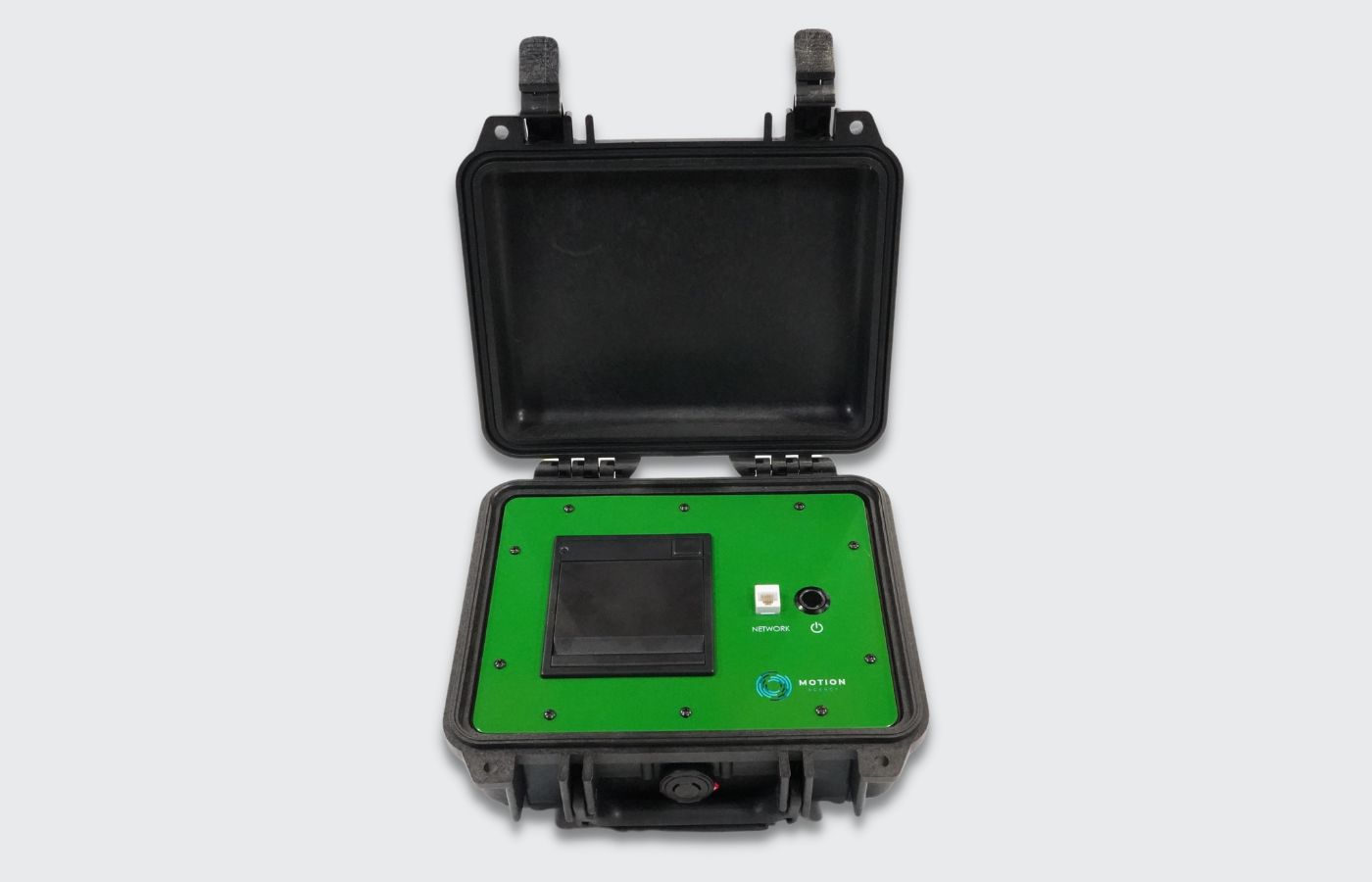

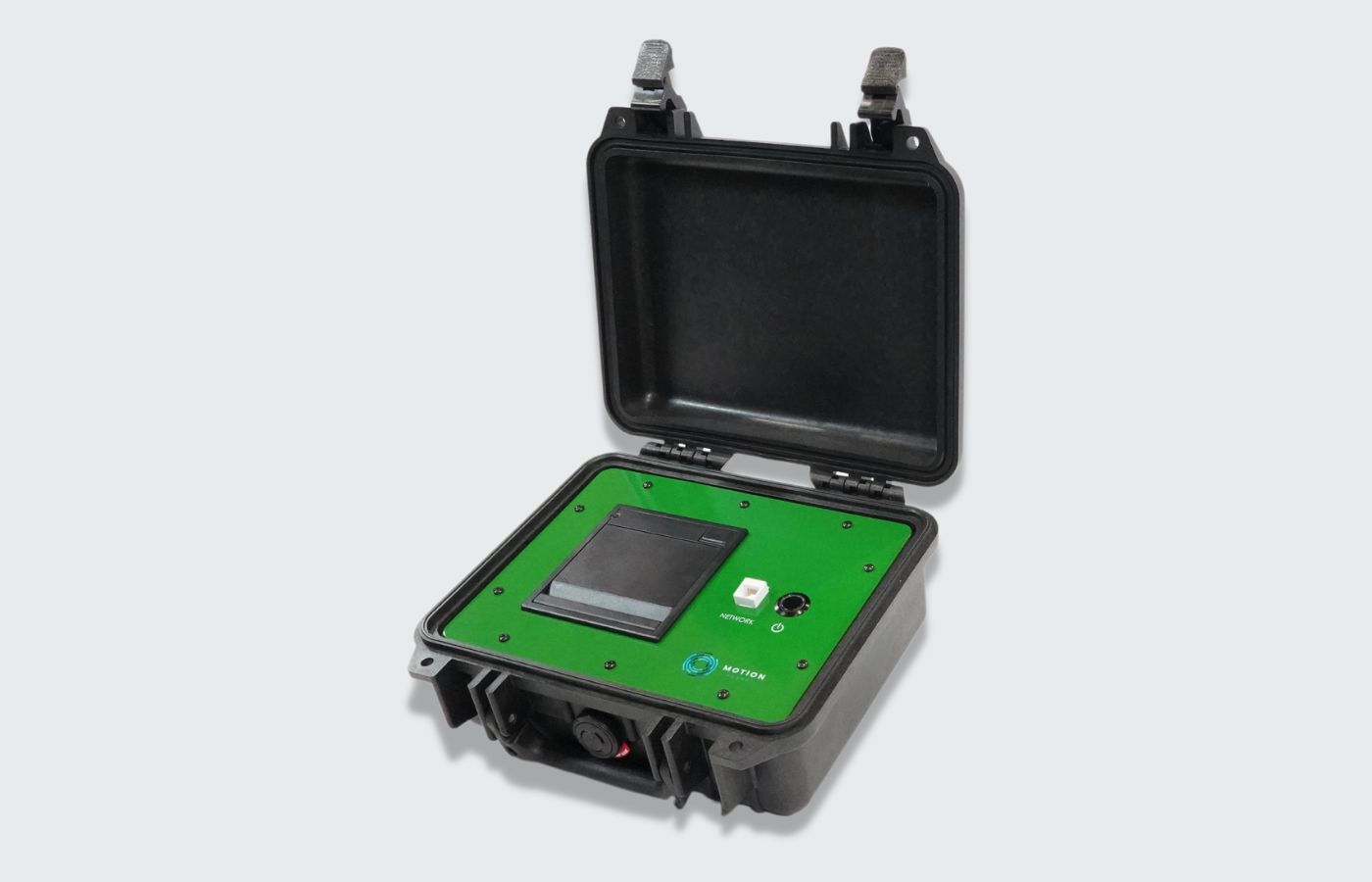

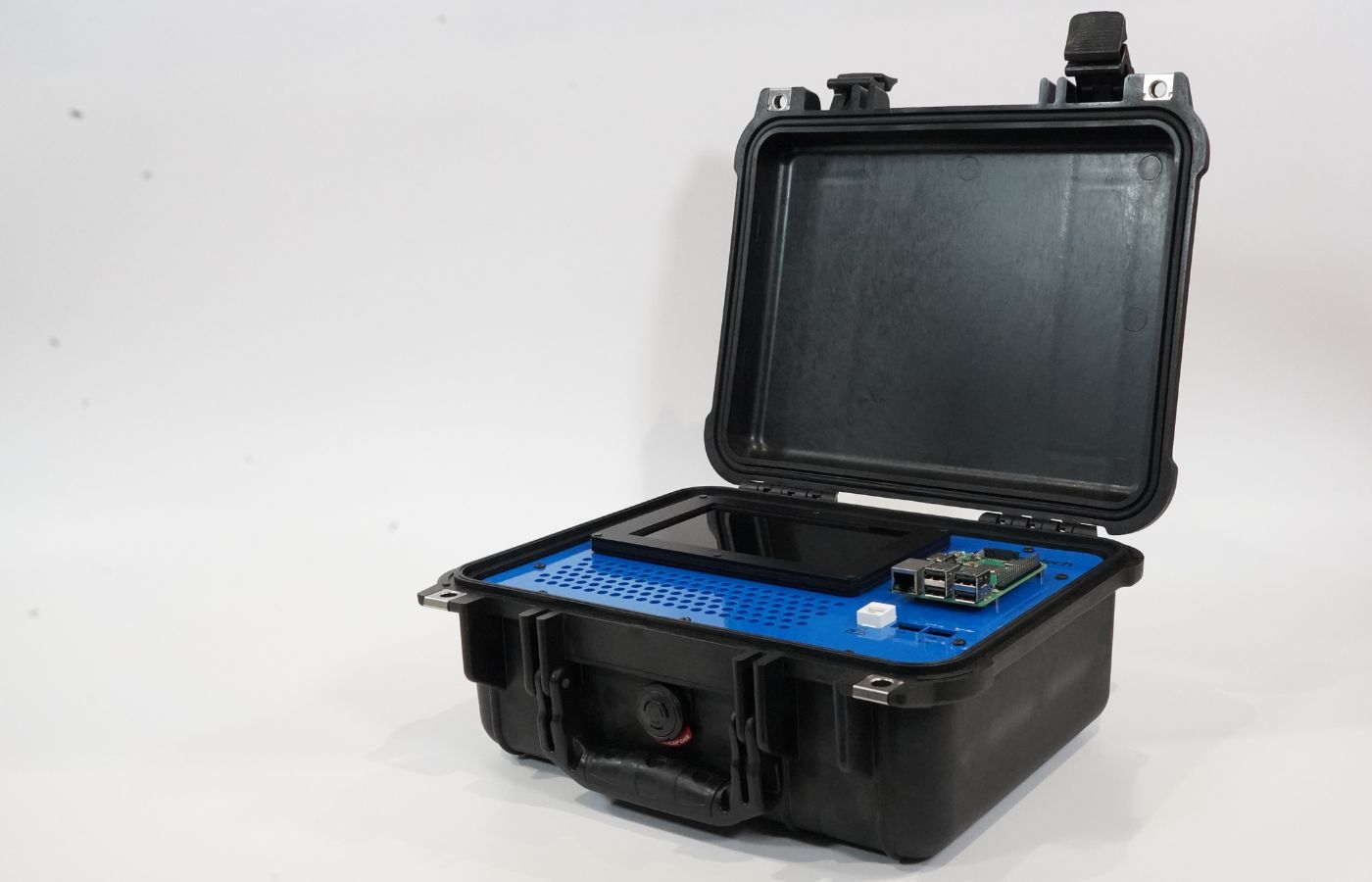

Pelican Panels Examples:

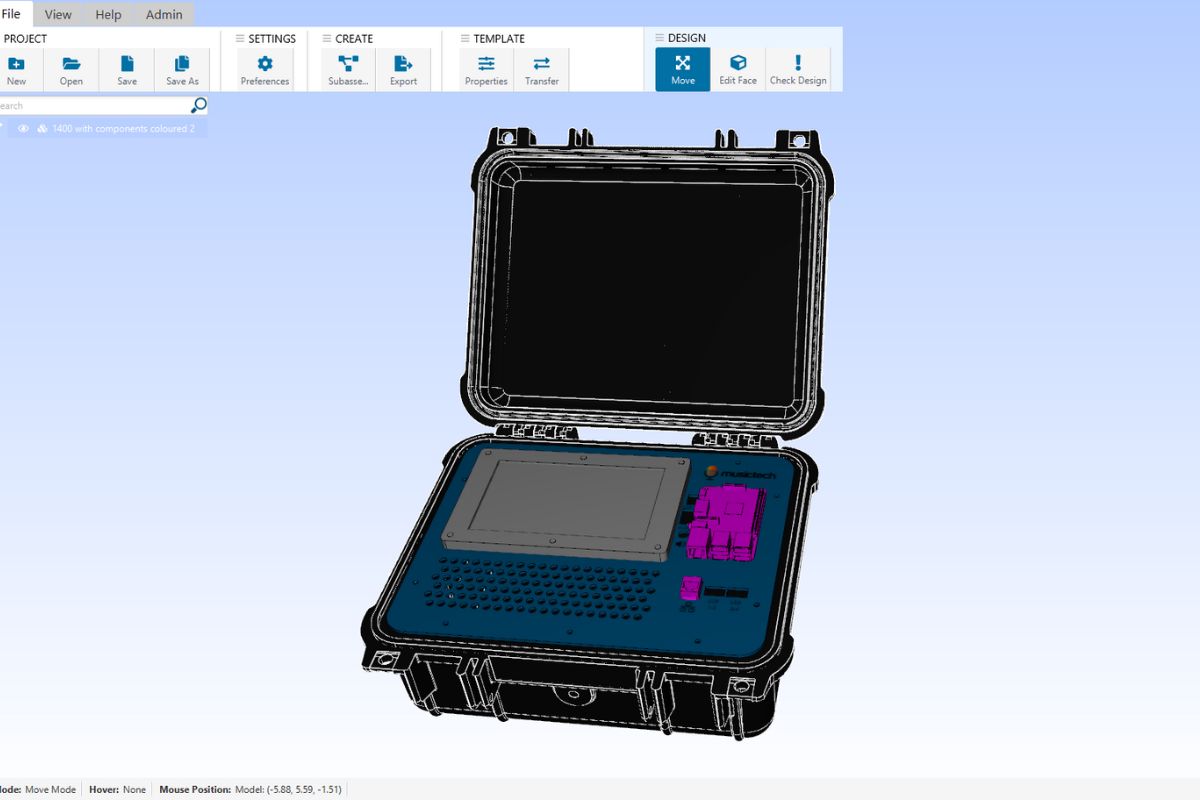

Pelican Panels Templates in Protocase Designer:

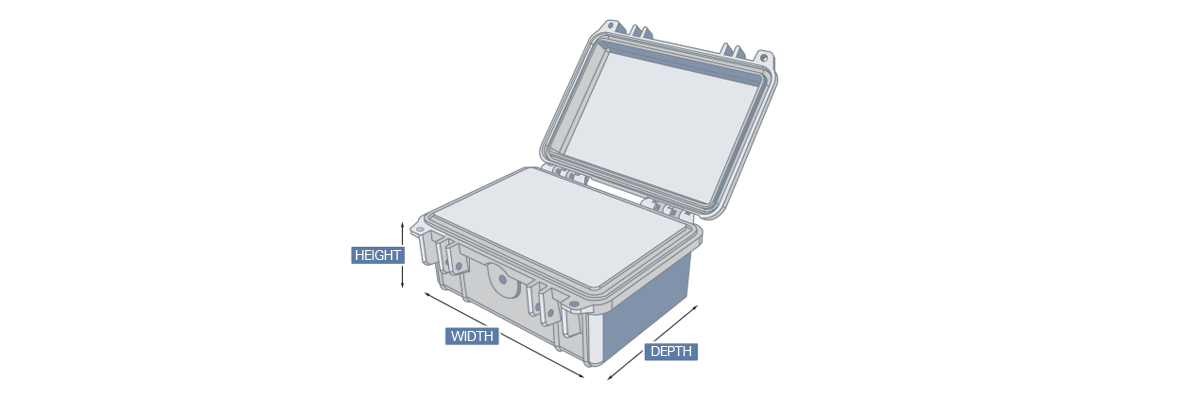

| Case Model | Inner Dimensions | Outer Dimensions |
|---|---|---|
| 1120 | 7.29” x 4.78” x 3.33” (185.17mm x 121.41mm x 84.58mm) | 8.41” x 6.76” x 3.87” (213.61mm x 171.70mm x 98.30mm) |
| 1200 | 9.31” x 7.13” x 4.12" (236.47mm x 181.10mm x 104.65mm) | 10.67” x 9.75” x 4.86” (271.02mm x 247.65mm x 123.44mm) |
| 1300 | 9.17” x 7.00” x 6.12” (232.92mm x 177.8mm x 155.45mm) | 10.62” x 9.68” x 6.87 (269.75mm x 245.87mm x 174.50mm) |
| 1400 | 11.81” x 8.87” x 5.18” (299.97mm x 225.30mm x 131.57mm) | 13.37” x 11.62” x 6.00” (339.60mm x 295.15mm x 152.4mm) |
| 1450 | 14.66” x 10.24” x 6.12” (372.36mm x 260.10mm x 155.445mm) | 16.44” x 13.00” x 6.82” (417.58mm x 330.2mm x 173.23mm) |
| 1500 | 16.75” x 11.18” x 6.12” (425.45 x 283.97mm x 155.445mm) | 18.50” x 14.06” x 6.93” (469.9mm x 357.12mm x 176.02mm) |
| 1520 | 18.06” x 12.89” x 6.72” (458.72mm x 327.41mm x 170.69mm) | 19.78” x 15.77” x 7.41” (502.41mm x 400.56mm x 188.21mm) |
| 1550 | 18.63” x 14.18” x 7.72” (473.20mm x 360.17mm x 196.09mm) | 20.66” x 17.20” x 8.40” (524.76mm x 436.88mm x 213.36mm) |
Need a panel for another Pelican case model? Contact us with your suggestion!
Additional Information:
Materials:
Custom panels can be made from Cold Rolled Steel, Galvanneal, Stainless Steel and Aluminum.
Finishes:
Protocase-manufactured custom pelican panels can be finished with:
Graphics & Labelling:
Complete your fully finished custom panels with graphics and permanent marking for labeling, serialization, branding and decoration.
We offer several in-house options to suit your specific requirements:
