Hardware
Protocase stocks a wide variety of hardware items that enhance the functionality of electronics enclosures. If we don't stock it, we can usually obtain just about any item that you may wish to utilize in your design. We've listed a few of the most common items below for your convenience. If you have questions regarding details or availability of hardware items, please email us at info@protocase.com and we'll respond to you quickly.
Handles

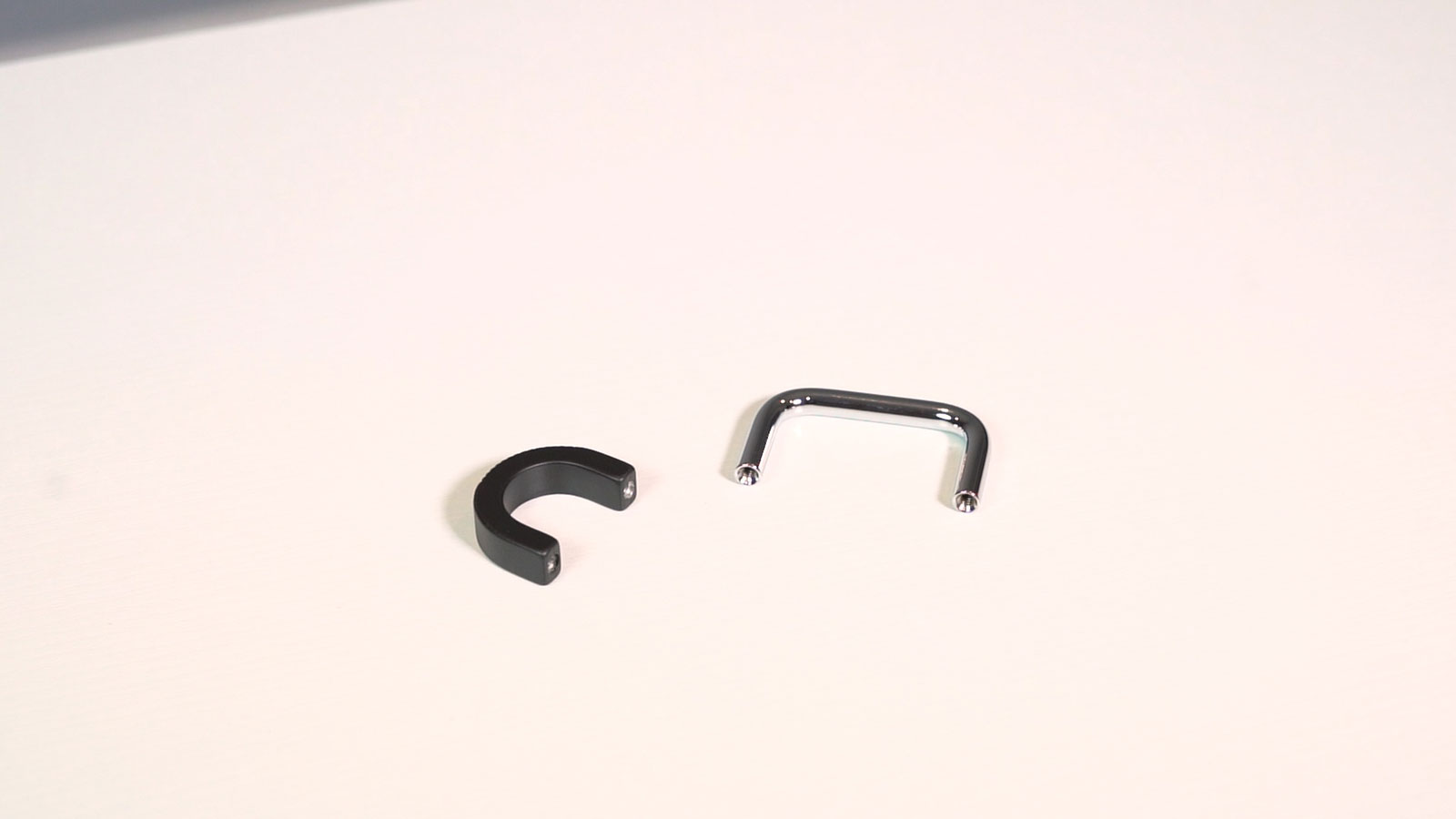

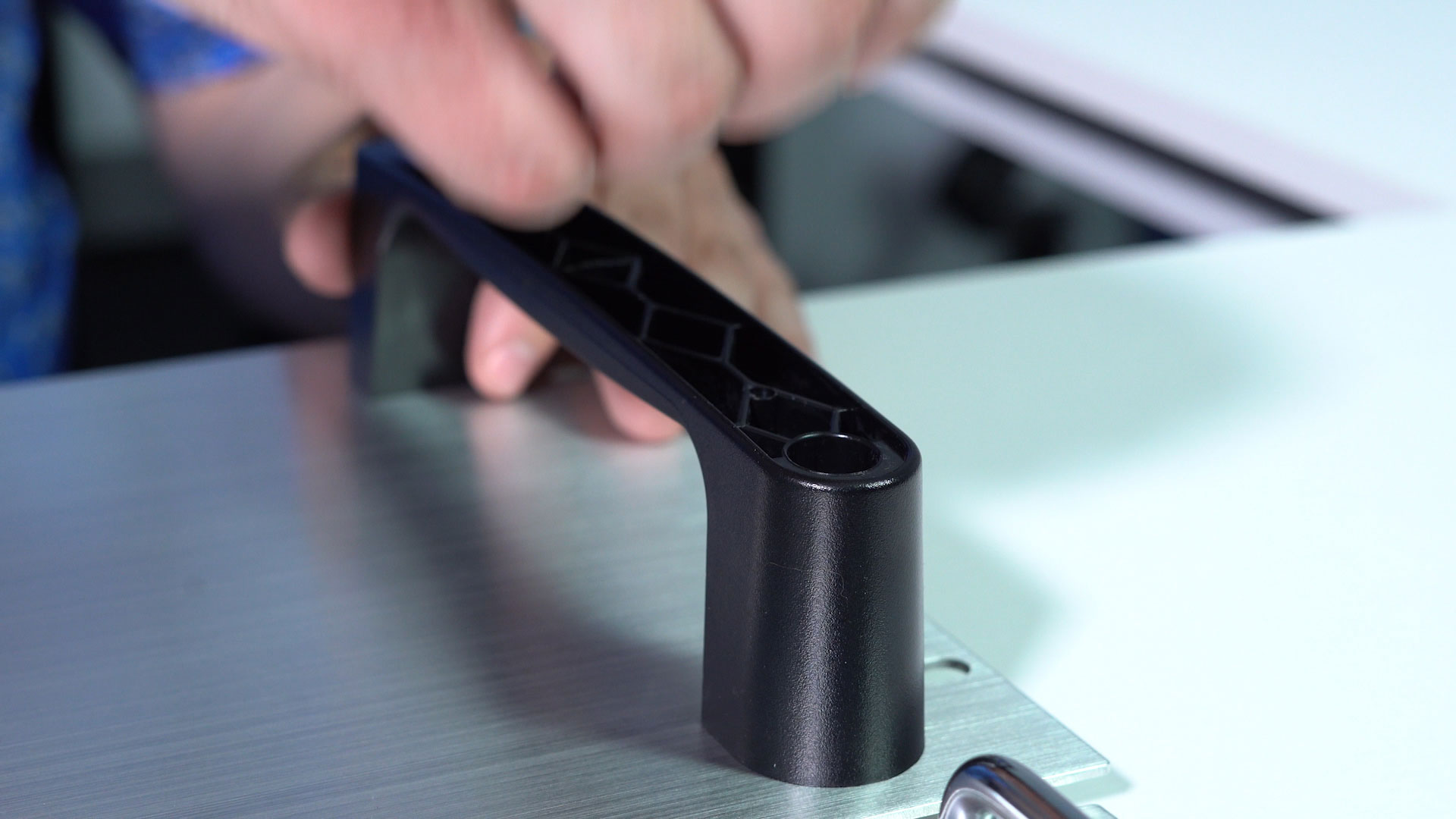

We have access to a wide variety of handles, but the small chrome, medium chrome, and large plastic handles shown below are the most common choices of our customers.

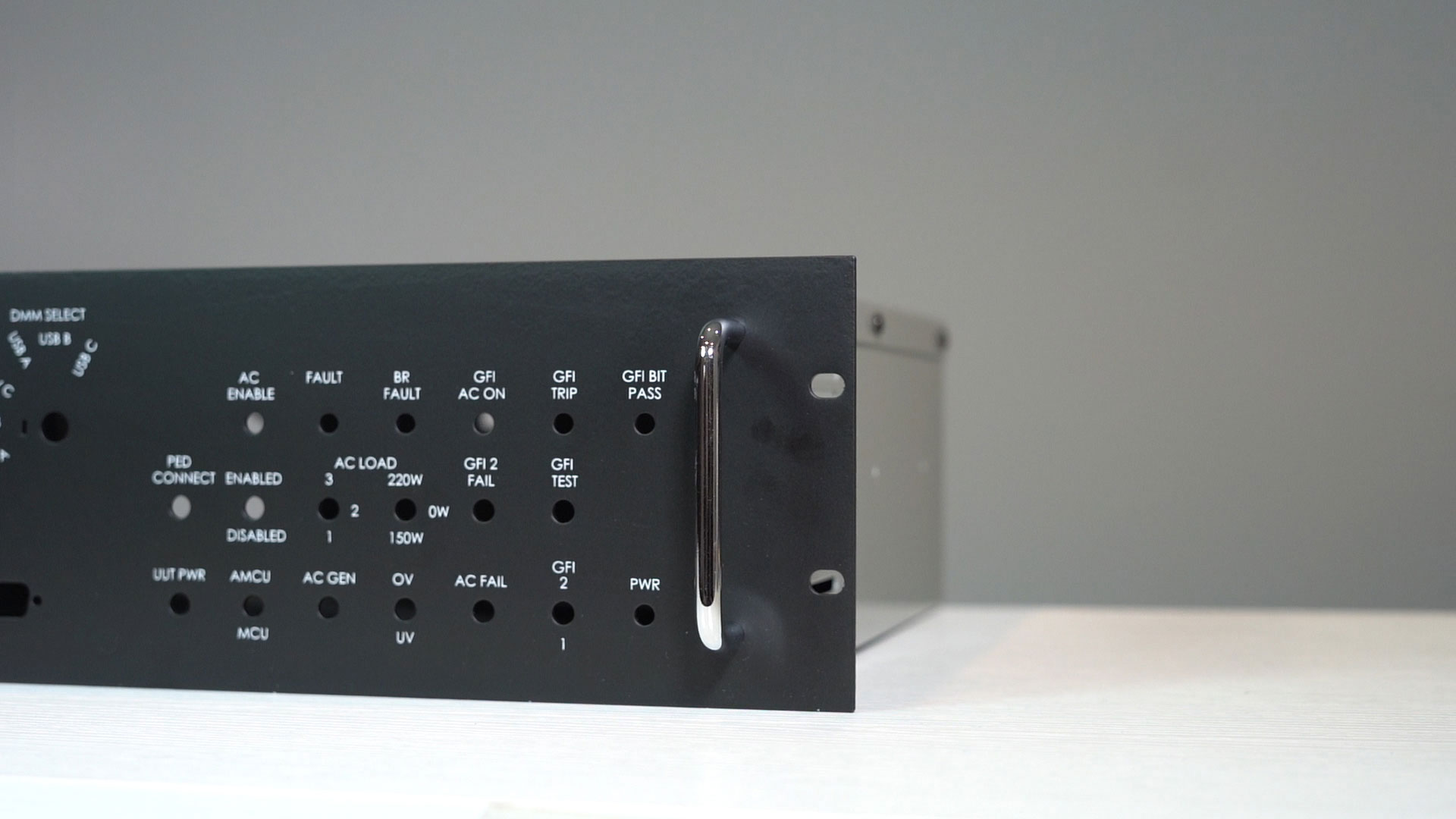

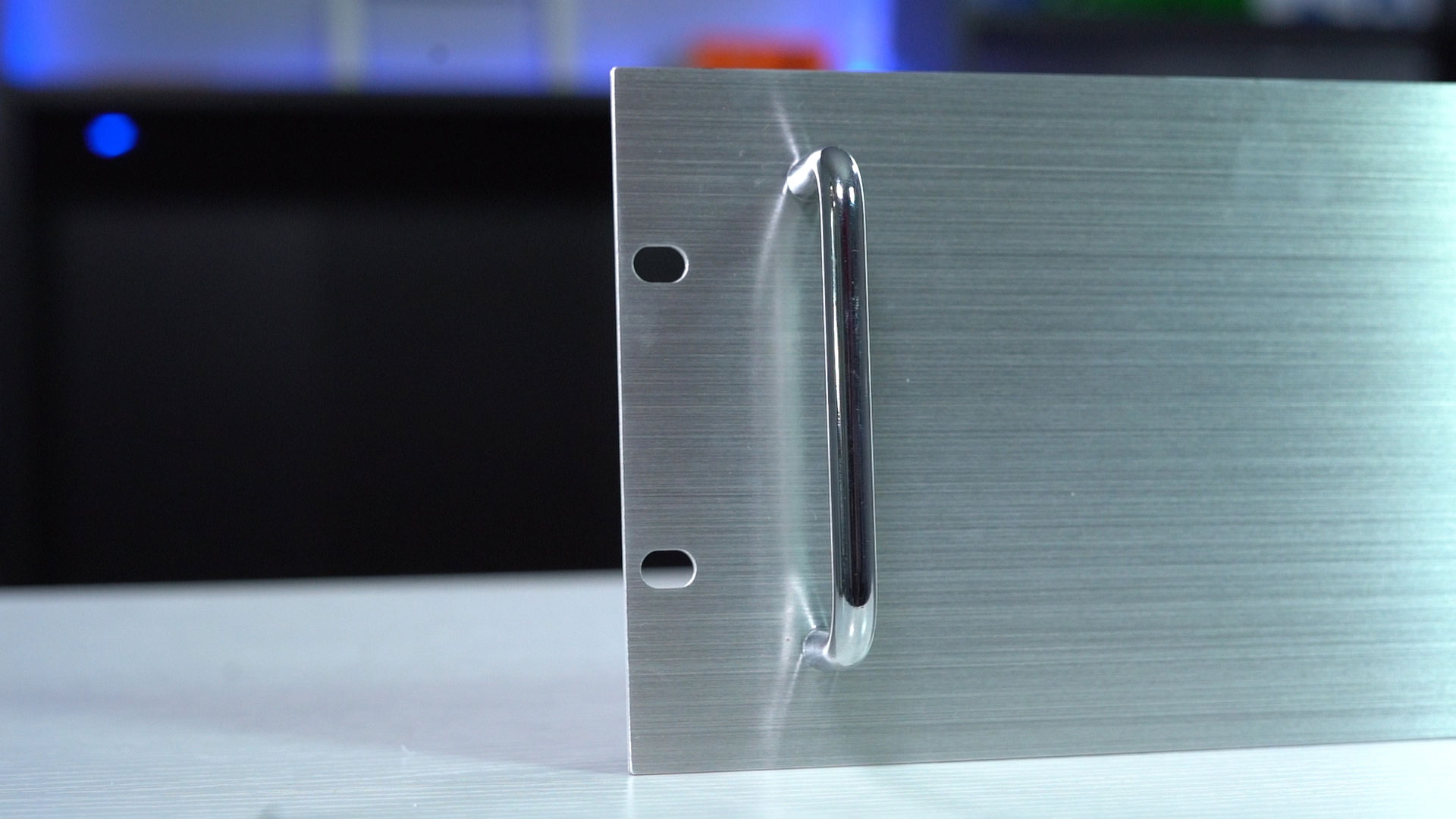

Handles are commonly used on rackmount enclosures (as per the table below), as well as any other miscellaneous application that calls for them.
Notes:

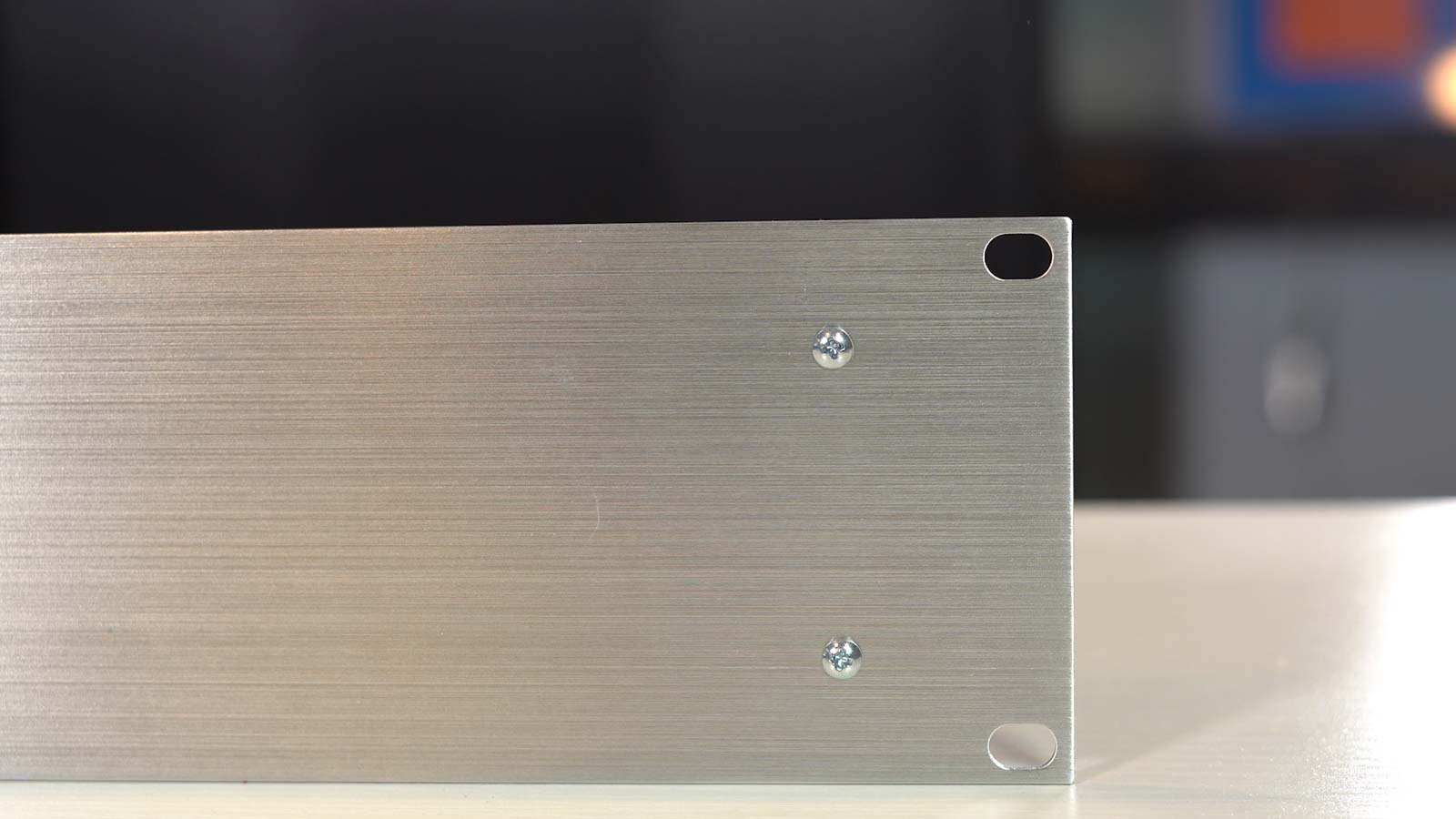

To determine a mounting pattern for a handle, use the center-to-center distance shown on the drawing on the right, and the clearance hole recommendations shown in the table below.
Recommended Handle Size:
| Handle | Rackmount height |
|---|---|
| Small | 2U |
| Medium | 3U, 4U |
| Large | 5U and greater |
Stocked Handles:
| Part Number | Part Name | Thread Size | Center Distance | Hole / Cutout size |
|---|---|---|---|---|
| Small | ||||
| 1427B2 | 1U Handle | 6-32 | 1.25" | 0.17" |
| B4-10-103-12 | Sm Powdercoated Black Aluminum Handle | 8-32 | 1.12" | 0.195" |
| B4-10-103-15 | Sm Rectangular Black Anodized Aluminum Handle | 8-32 | 1.13" | 0.195" |
| 90F739-H-9166-B | Small Handle_H-9166-B | 6-32 | 1.906" | 0.17" |
| 70183242 | Round alum/Black handle | 6-32 | 2.0" | 0.17" |
| Medium | ||||
| BP33204140 | Medium Handle Chrome Plated Steel Pull | 8-32 | 3.5" | 0.195" |
| 70181722 | Aluminum: Black Anodize handle | 8-32 | 3.5" | 0.195" |
| 70183157 | Oval Alum/Blk Anodize | 10-32 | 4.0" | 0.221" |
| Large | ||||
| B8-63-3 | Large Handle (2 pieces handle + plastic cover) | 10-32 | 6.75" | 0.221" |
| H-9112-B | Chrome Plated Brass Pull Handle | 10-32 | 6.0" | 0.221" |
| 70183048 | Oval Aluminum Handle | 10-32 | 6.0" | 0.221" |
| 70183156 | Instrumentation Handle (Round) | 10-32 | 6.0" | 0.221" |
| 1327A14 | Stay-Put Folding Round Pull Handle | 3/8"-24 | 5.0" | 0.406" |
| Other | ||||
| 1098A92 | Snap-in Flush-Mnt ABS Plastic Recessed Handle | 3.45" X 1.21" | ||
| 12315A41 | Recessed Folding Ring Pull Handle | 6-32 | 1.373" X 1.14" | 0.17" |
