Silkscreening

Protocase Tech Tip Video

For completing your fully finished, professional enclosure, you have two options for applying graphics for labelling, branding and decoration: direct digital printing and silkscreening. Each process offers its own benefits and advantages.

Our silkscreening process utilizes the latest in screen-preparation technology, as well as durable epoxy based inks, to ensure a high resolution and quality finish. Protocase stocks a variety of standard silkscreen ink colors, and can provide custom colors upon request.

See our technical papers on silkscreening

Silkscreening, also known as screen-printing or serigraphy, is a printing technique that involves passing ink through a porous fabric, thus creating a sharp-edged single-color image created from a stencil.

You may silkscreen graphics onto enclosures, parts and panels that either have bare-metal finish or powdercoat finish.

The clarity of silkscreen can be greatly affected by the texture of powdercoat used. Generally, for best results, it is recommended you choose a smooth powdercoat finish. Silkscreen will work on various textures and colors but each situation is unique. This may require modifications to your silkscreen such as changing of fonts and thickening of fine lines. For more information, please contact tech support at info@protocase.com.

Image files must be provided electronically. Faxed images will not provide sharp enough resolution for our process to replicate. If text-only screening is required, simply provide information such as font type, font size and font color when you submit your order. Our graphics team will be happy to produce the required text-only screens.

Font Sizes:

Minimum 9 pt font size required, with the exception of silkscreening over sandtex powdercoat, which requires a minimum 11 pt font size.

Graphic File Formats:

To ensure the highest print quality and clarity, vector graphic files are recommended:

  • .AI - Adobe Illustrator
  • .EPS - Encapsulated PostScript
  • .SVG - Scalable Vector Graphics
  • .PDF - Portable Document Format
  • .DXF or .DWG - AutoCAD

We can accept the following raster image files, however additional processing charges may apply:

  • .PNG - Portable Network Graphic
  • .JPG (.JPEG) - Joint Photographic Experts Group
  • .TIF (.TIFF)- Tagged Image File
  • .PSD - Photoshop
  • .VDX, .VSD, or .VSDX - Visio
  • .DOCX - Microsoft Word
  • .PPTX - Microsoft PowerPoint

File formats we cannot accept:

  • .CDR - Corel Draw File

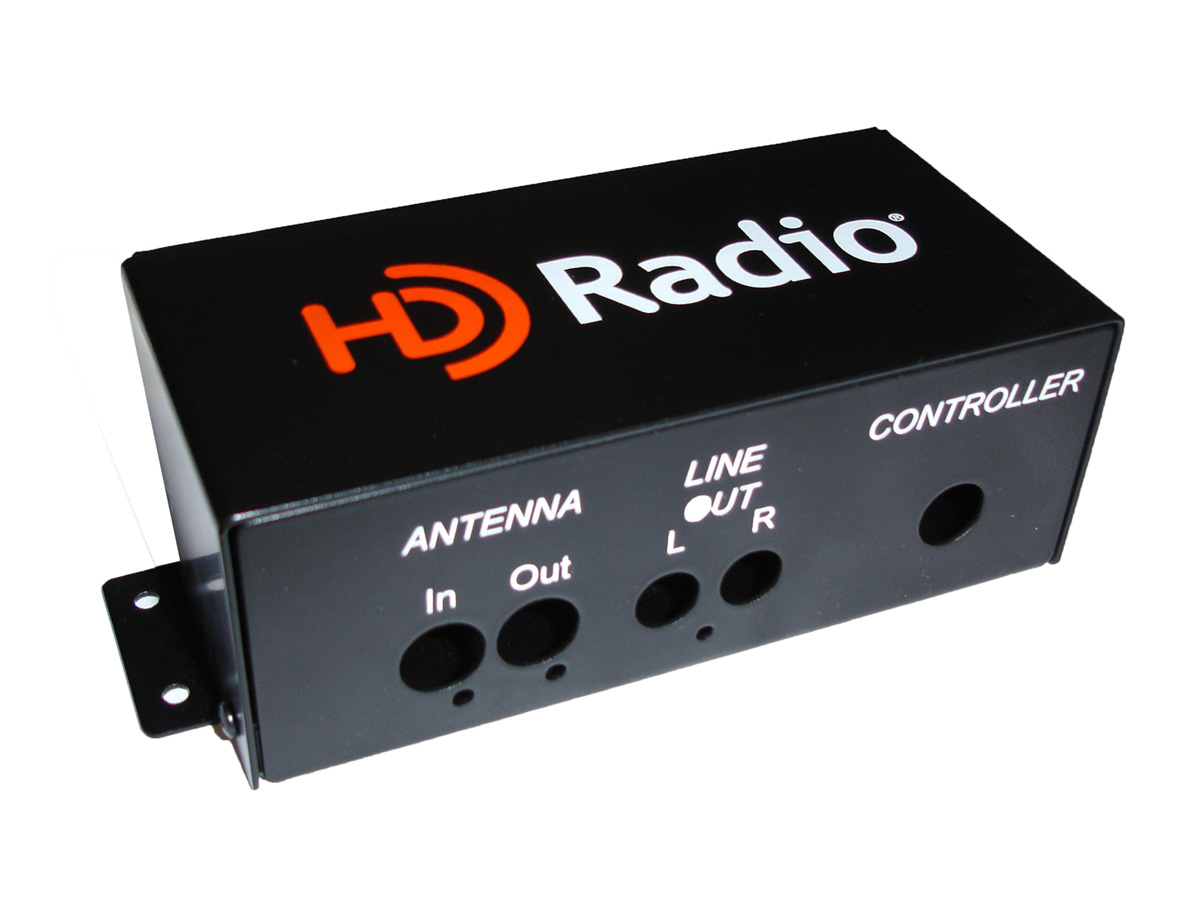

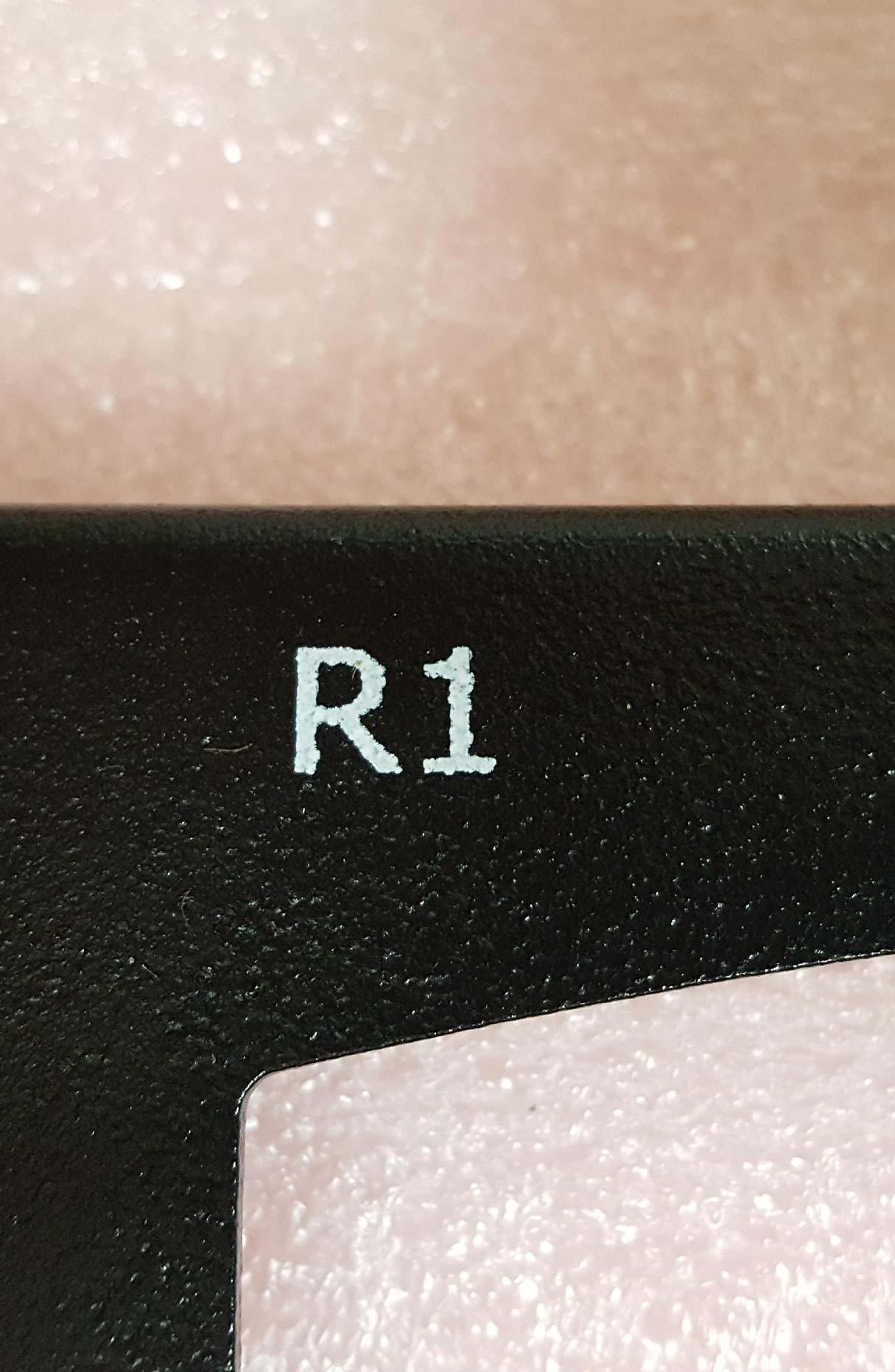

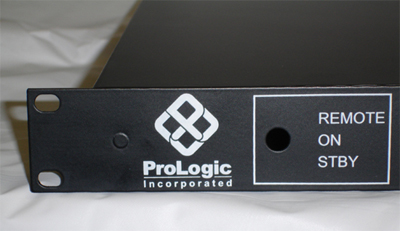

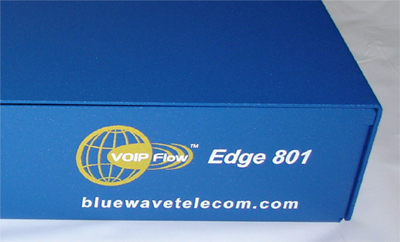

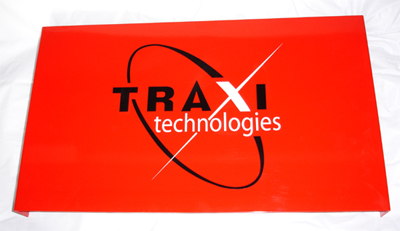

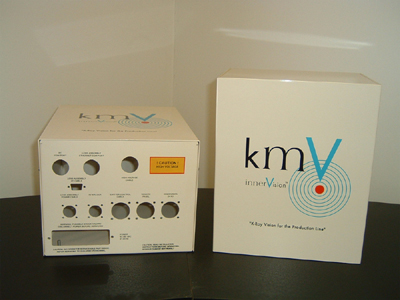

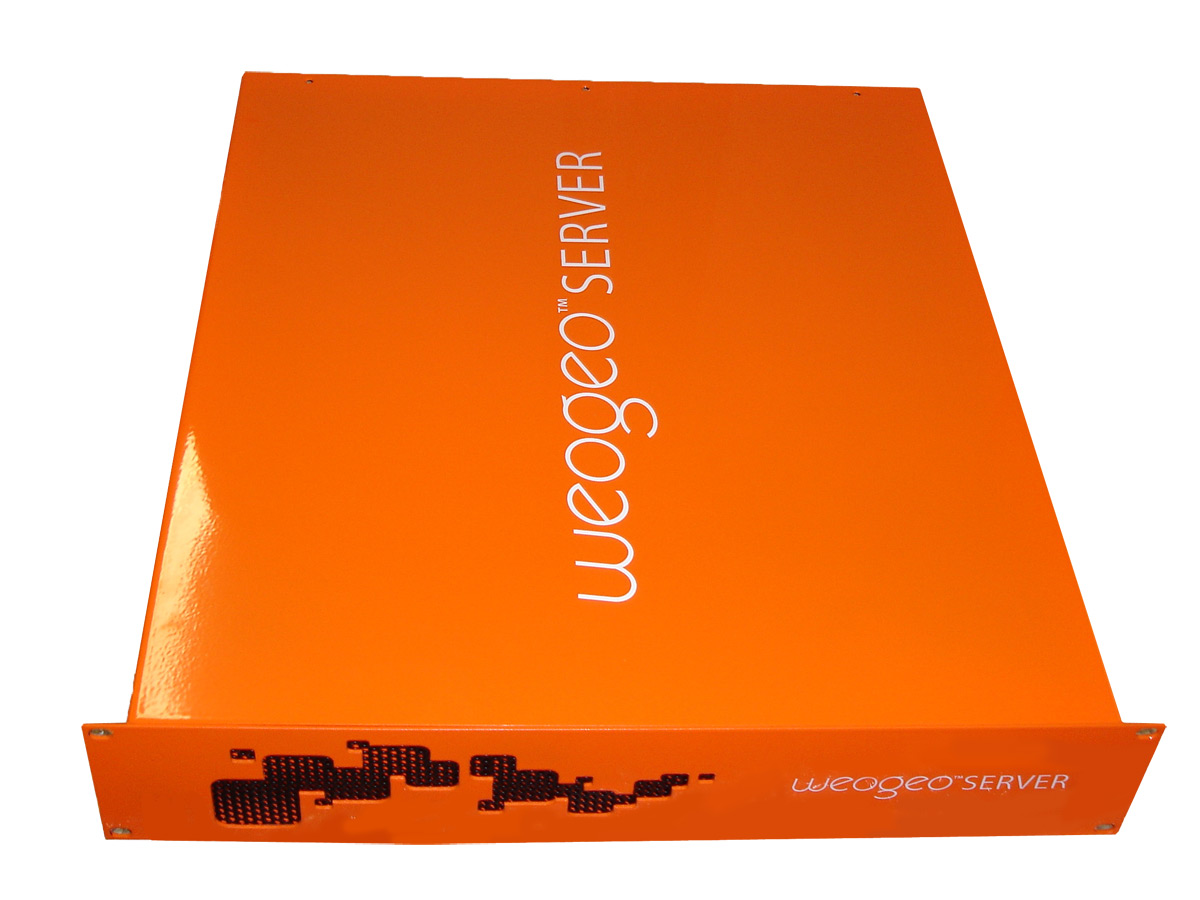

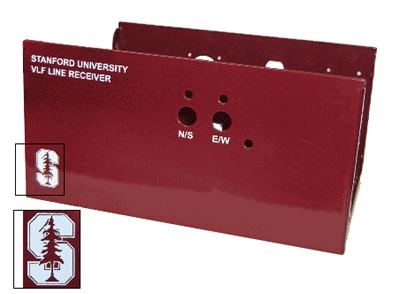

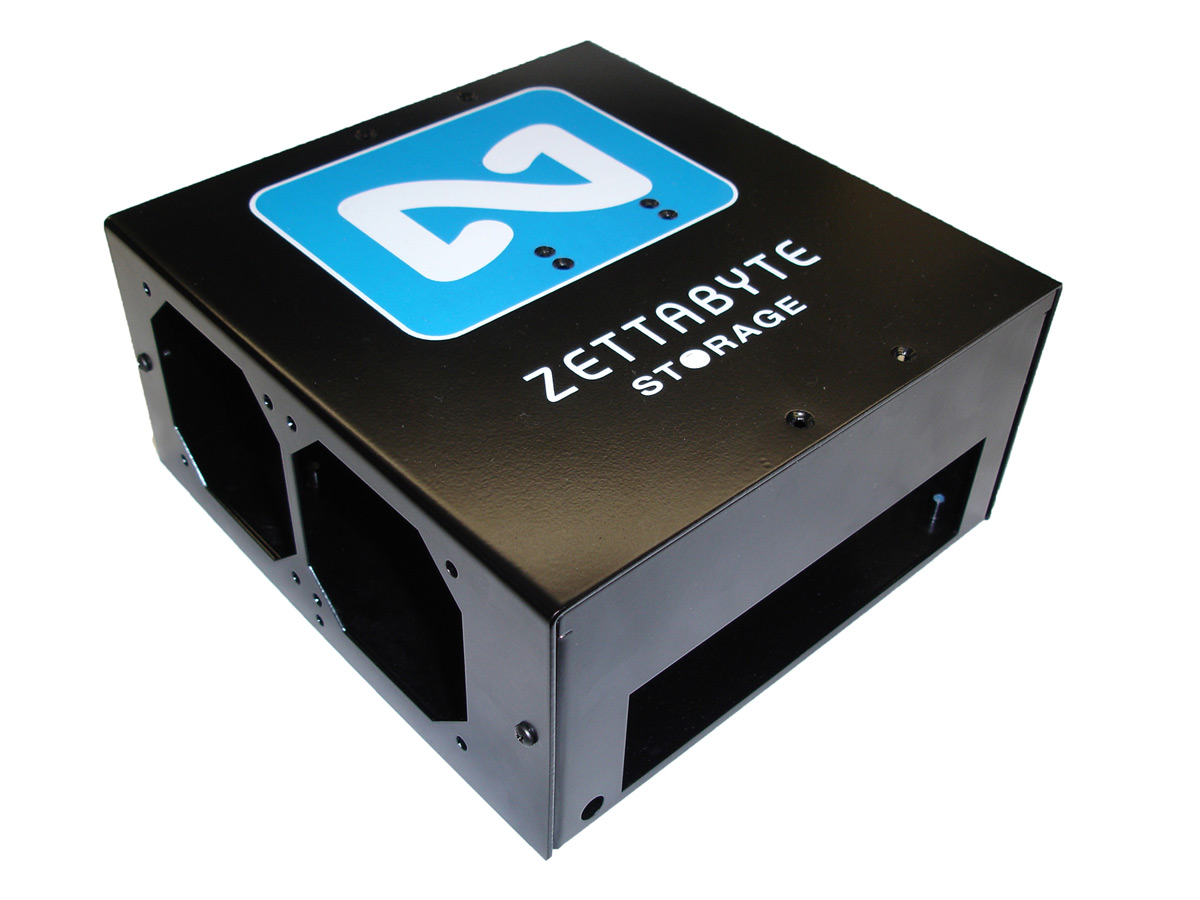

Silkscreening samples

Stocked Silkscreening colors

Below are the stocked silkscreen colors we have. Protocase can provide custom silkscreen colors upon request. Note: The color representations below may deviate from the actual color due to variations in browser software, video cards, and monitors

White
Opaque White,
Epoxy Ink
Lemon yellow
Lemon Yellow,
Epoxy Ink
Pantone 123 C Yellow
Pantone 123C Medium Yellow
Epoxy Ink
Pantone 142 Yellow
Pantone 142C,
Epoxy Ink
Cool Grey 6C
Pantone 6C
Cool Gray,
Epoxy Ink

Brilliant Orange
Brilliant Orange,
Epoxy Ink
Red
Fire Red,
Epoxy Ink
Pantone 201C
Pantone 201C,
Epoxy Ink
Pantone 649 C Blue
Pantone 649C,
Epoxy Ink
Pantone Process Blue C
Pantone Process
BlueC, Epoxy Ink

Green
Pantone 355C,
Epoxy Ink
Purple
Pantone 2623C
(Purple), Epoxy Ink
Black
Opaque Black,
Epoxy Ink
Cool Grey
Pantone Cool Gray
10C, Epoxy Ink
Reflex Blue
Proto-Reflex
Blue, Epoxy Ink

Green
Pantone 3285C,
Epoxy Ink


Cleaning Your Enclosures & Parts

We recommend any part or enclosure with digital print or silkscreen be cleaned using a mild soap/degreaser (for example: dish detergent), or water with a soft (non-abrasive) cloth or sponge.

Avoid using isopropyl alcohol, lysol wipes, acetone or hand sanitizer. For cloths, we do not recommend paper towel, as it is abrasive.

Tolerances

As with everything in the manufacturing process, there are always some variance between parts and images (spatial registration). We use an X,Y and angular micro-adjust, which allows for a respectable tolerance of 0.020" | 0.51mm, which is more than adequate for most applications.

However, there are certain situations that are much more sensitive to disparation. Please see diagrams below for examples.

Figure 1 - Eccentric Circles: Left 0.020" (0.50mm) eccentricity x & y, middle 0.002" (0.05mm) x & y Right 0.010" (0.25mm) eccentricity x & y









Please note: Images are a scaled representation of a CAD drawing of half-inch circles around quarter inch holes
