Cam Locks
A cam lock is a mechanism that can be mounted on your enclosure design in order to latch shut and lock your enclosure. Also referred to as a cam latch, cam locks are particularly useful for five-sided enclosure. Typically, a five-sided enclosure’s cover is placed on hinges, and the cam lock can be turned to latch the lid shut to the base..
Cam locks come with either a straight or offset latch, as well as keyed and no-locking options, depending on your needs.

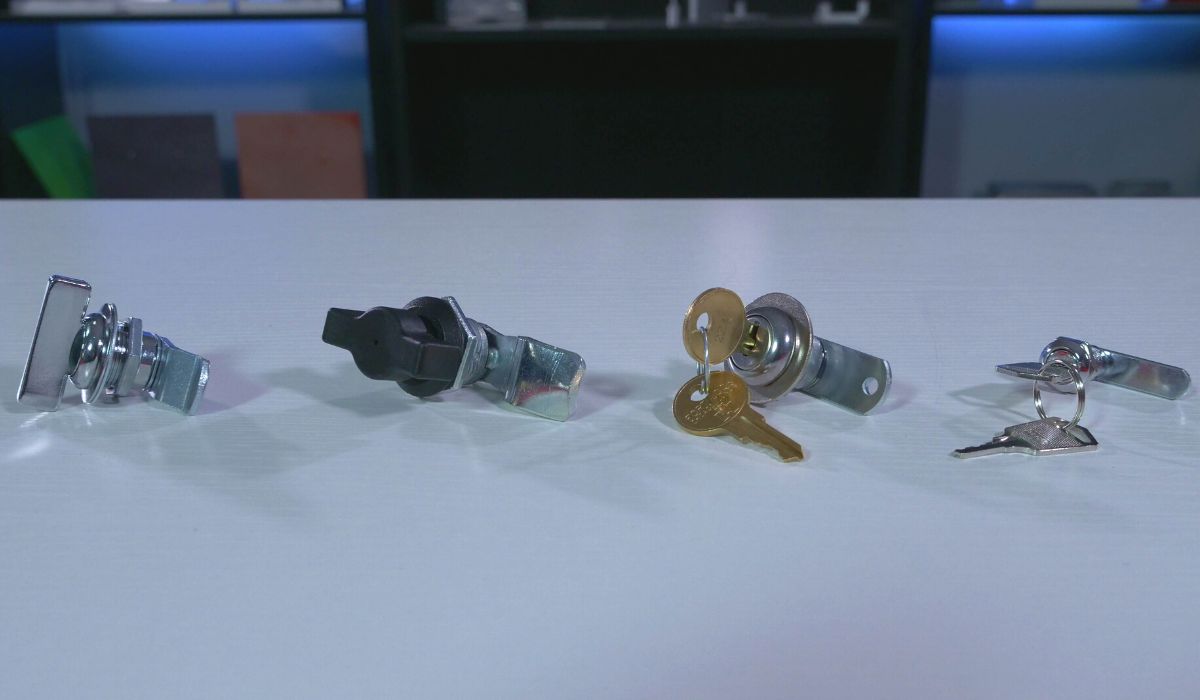

Cam Lock Examples:
Stocked Cam Locks
Here at Protocase, we stock several types of cam locks:
| Part Name | Part Number | Hole Diameter | Maximum Material Thickness | Keyed | Cam Style | Material |
|---|---|---|---|---|---|---|

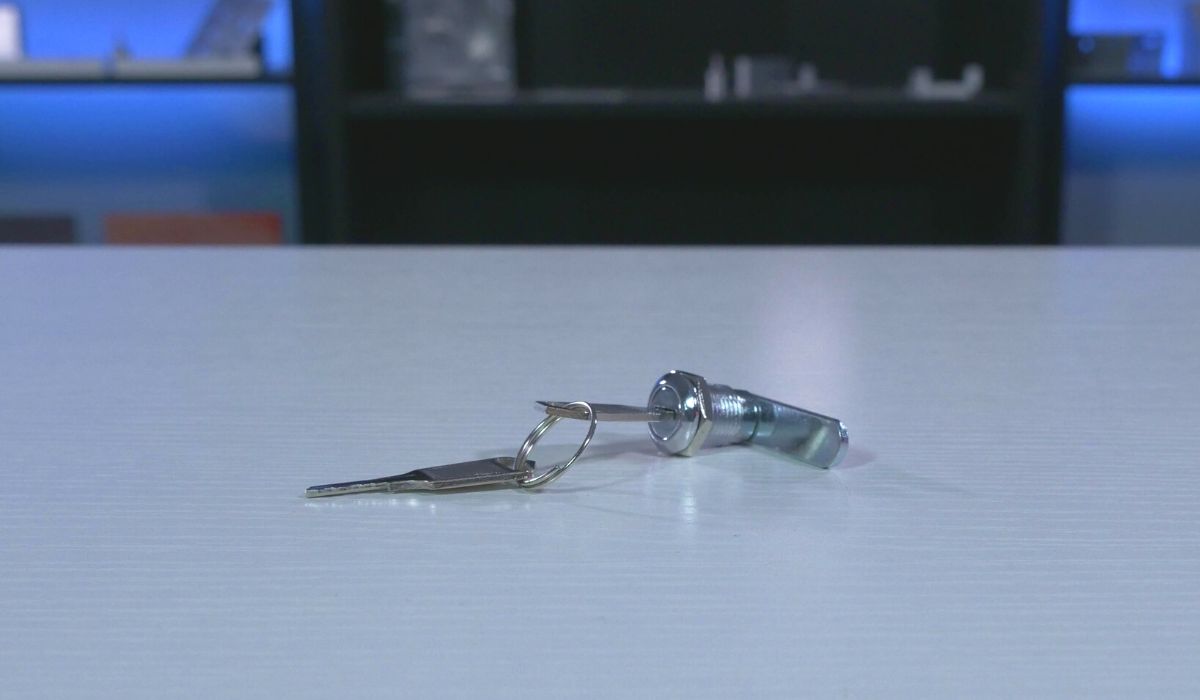

| Miniature Cam Lock Keyed Diff | 11125A11 | 0.5" | 12.7mm | 0.375 " | 9.525mm | Y | Straight, Reversible Offset | Nickel-Plated Zinc |

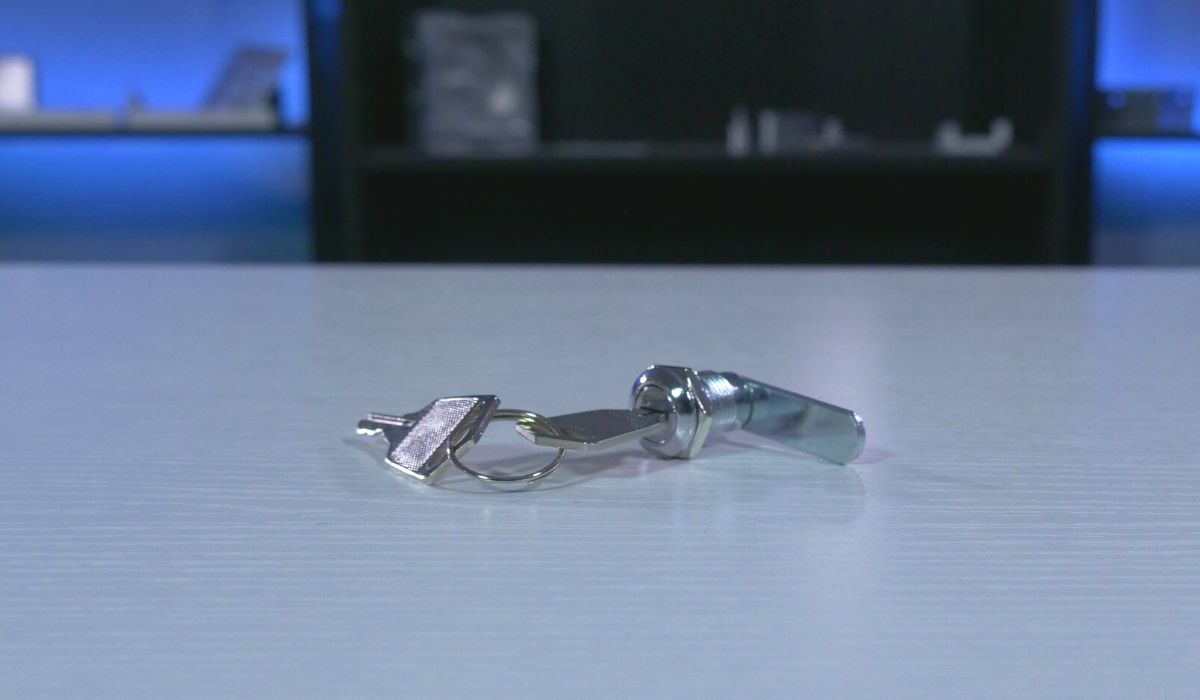

| Miniature Keyed Alike Cam Locks | 11125A12 | 0.5" | 12.7mm | 0.375 " | 9.525mm | Y | Straight, Reversible Offset | Nickel-Plated Zinc |

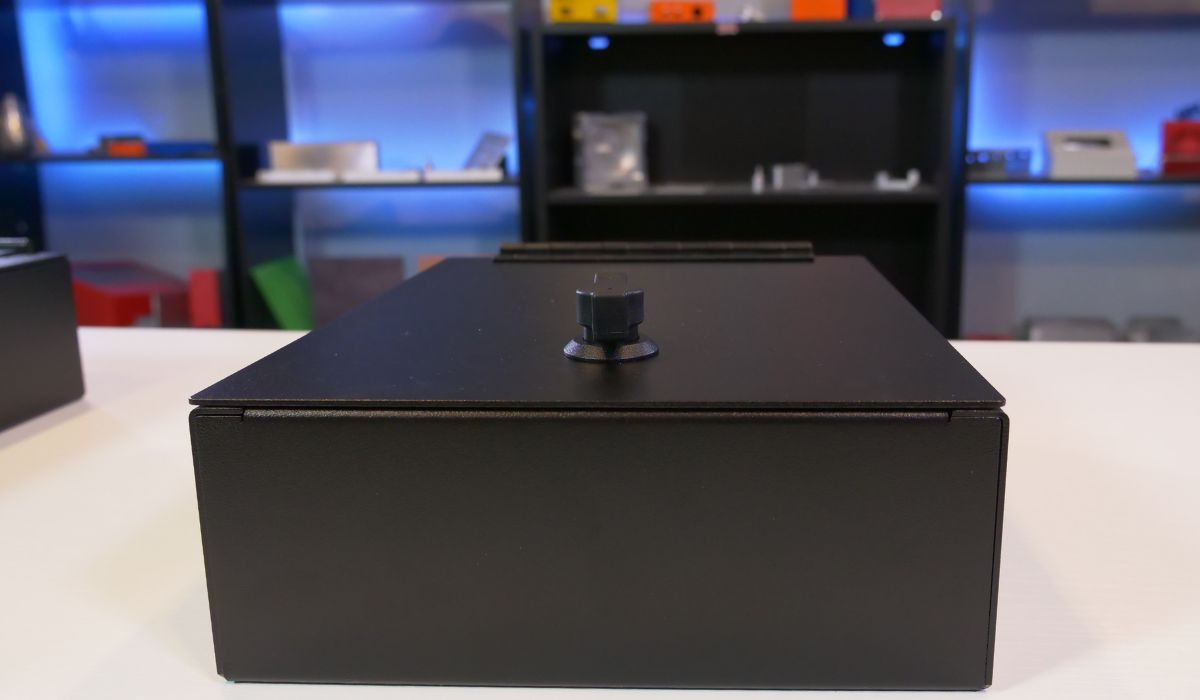

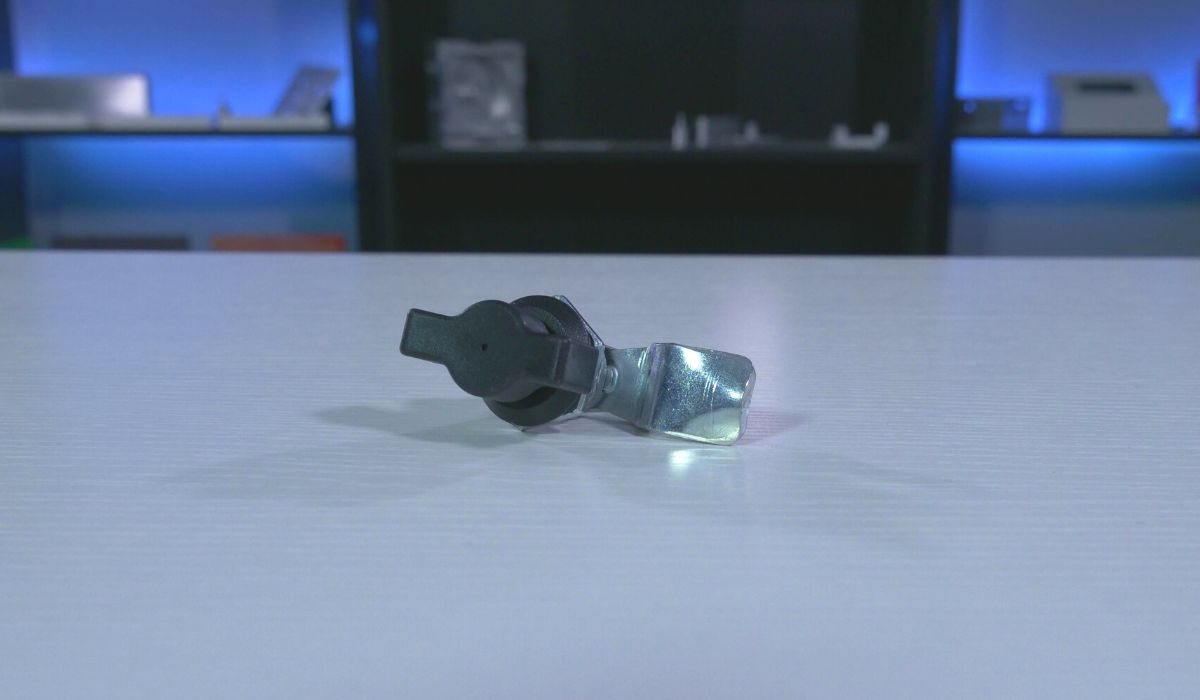

| Washdown Wing-Handle Cam Latches | 12265A57 | 0.875" | 22.225mm | 0.313 " | 7.938mm | N | Straight, Non-reversible Offset | Black Painted Zinc |

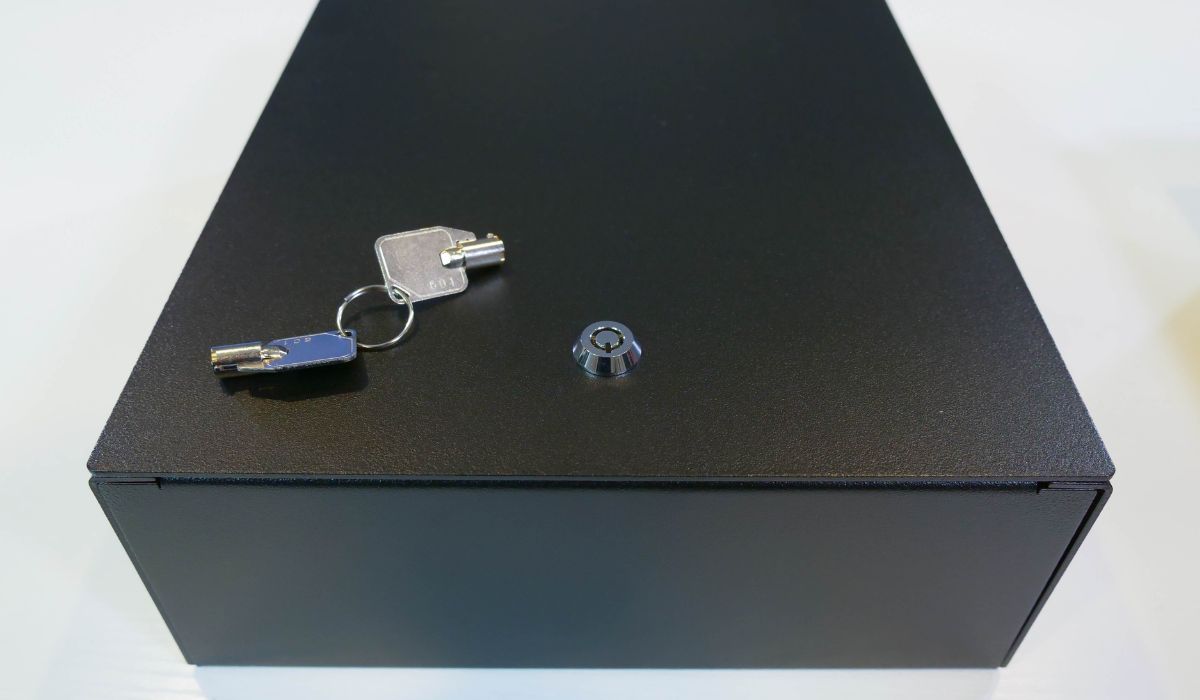

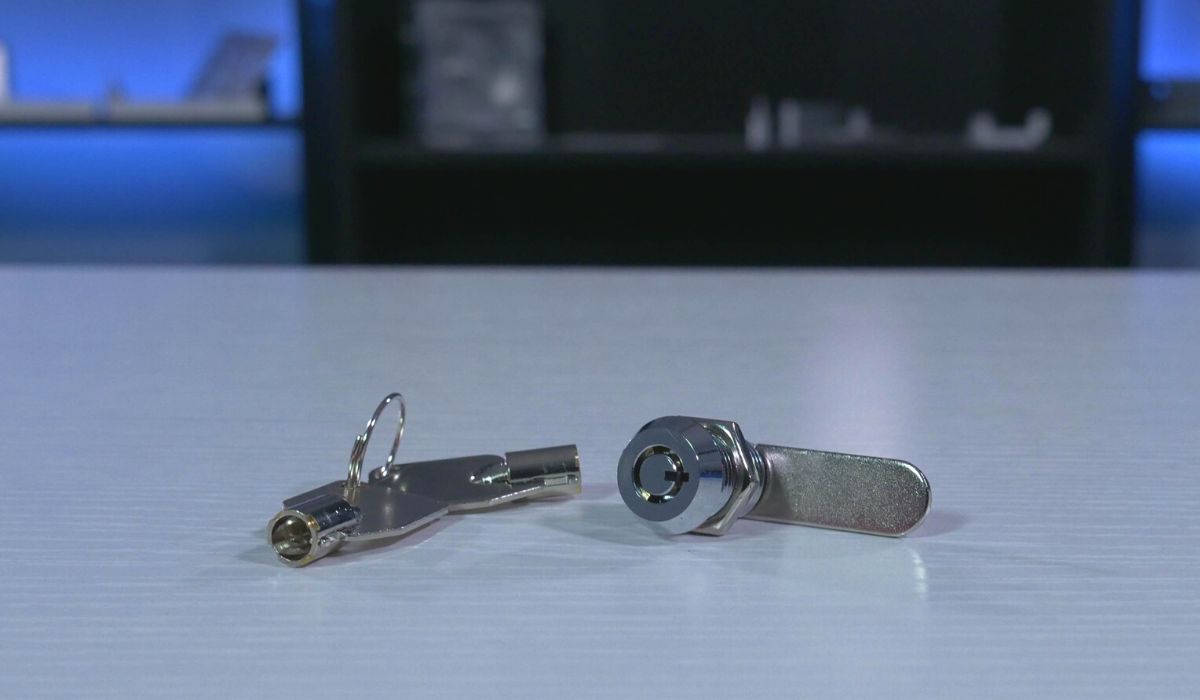

| Miniature Circular-Keyway Cam Lock | 13515A64 | 0.5" | 12.7mm | 0.563" | 14.288mm | Y | Straight, Reversible Offset | Chrome-Plated Brass |

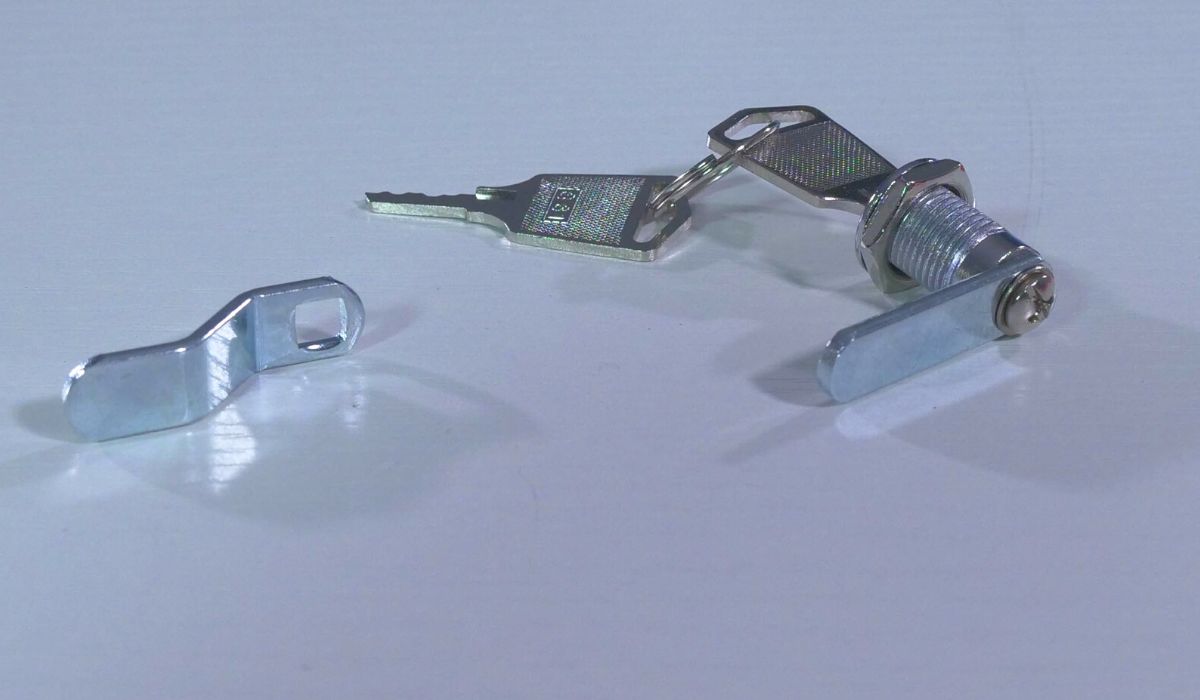

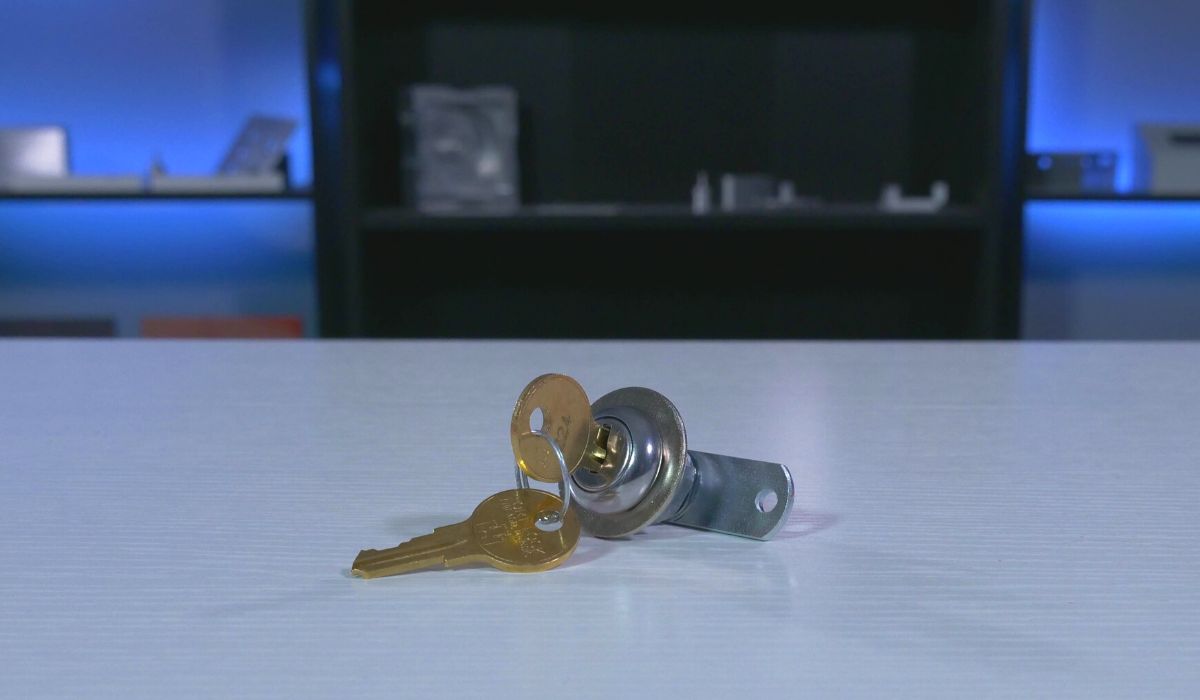

| Zinc Keyed Cam Lock | 1770A321 | 0.75" | 19.05mm | 0.234" |5.953mm | Y | Straight, Reversible Offset | Zinc |

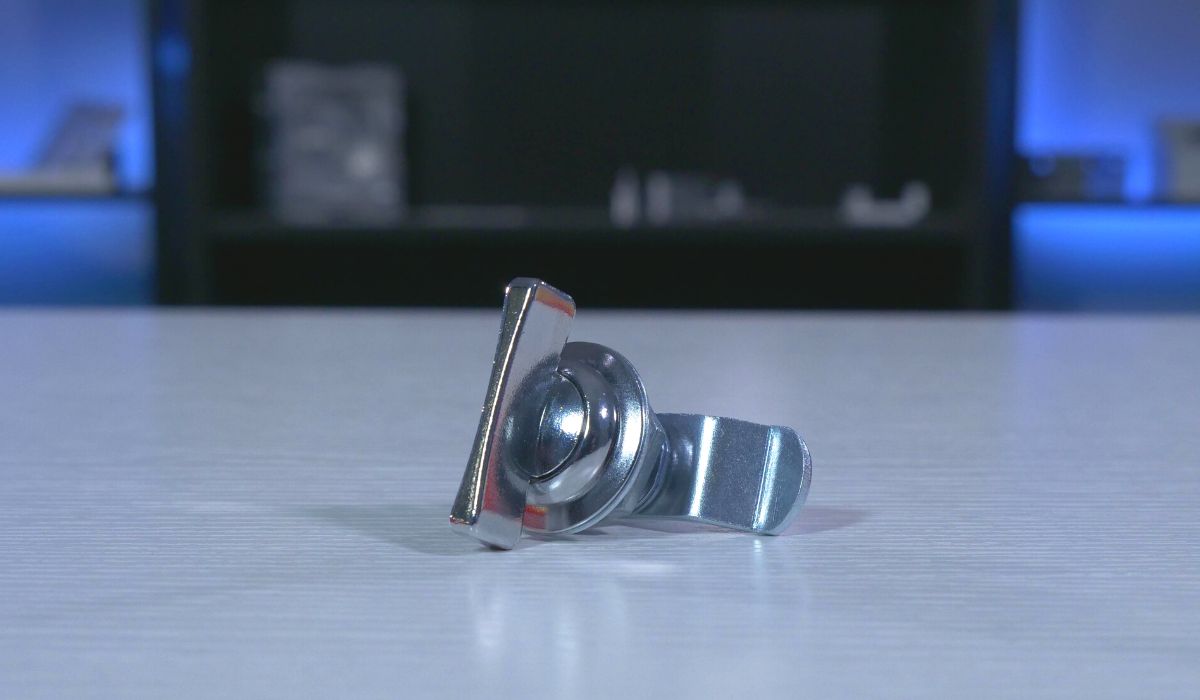

| Wing-Handle Cam Latch | 1820A21 | 0.75" | 19.05mm | 0.25" | 6.35mm | N | Straight, Reversible Offset | Nickel-Plated Zinc |
If you require a cam lock that we do not stock, contact us, as we can source the component for you. These components may need to be ordered in a minimum quantity, are subject to vendor availability and may extend manufacturing lead times.
Design Tips & Constraints
Cam locks have a maximum material thickness for the metal into which it’s being mounted. Refer to the table above for the maximum material thickness in the table above of stocked cam locks to ensure your design falls within these requirements.
Ensure your latching distance for your cam lock will reach the joining part. This distance largely depends on the latch style of the cam lock you select.
Want to save time? Design a five-sided enclosure with a hinged lid and cam lock in Protocase Designer, or use our Template Generator to create an initial five-sided enclosure with hinged lid and cam lock CAD starting point that you can then customize in your own CAD software of choice.
