Countersinking

Protocase Tech Tip Video

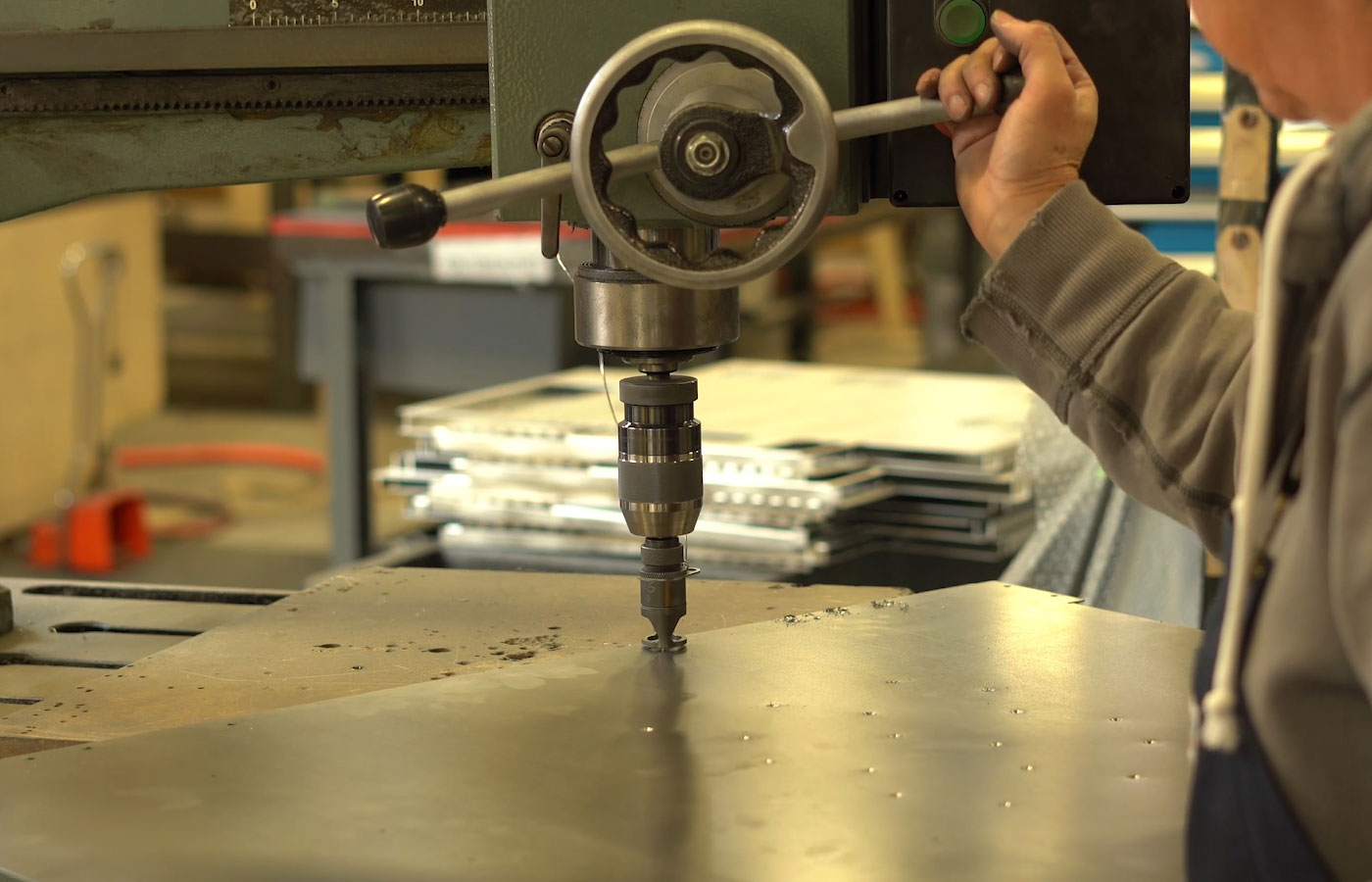

Countersinking uses a drill press machine to create a conical hole in part or enclosure that matches the angle and head size of a particular flathead screw.

Countersinking is ideal for ensuring your flathead screws sit flush against the metal of your custom enclosure or part.

Click here to view our selection of flathead screws.

Advantages of Countersinking

Having your flathead screws sit flush against the metal of your part or enclosure can be advantageous for several reasons:

Avoiding interference: This is particularly important for full-height rackmount enclosures. By ensuring proper clearance between the enclosures, you will avoid having the enclosures rub up against the enclosure racked above or below.

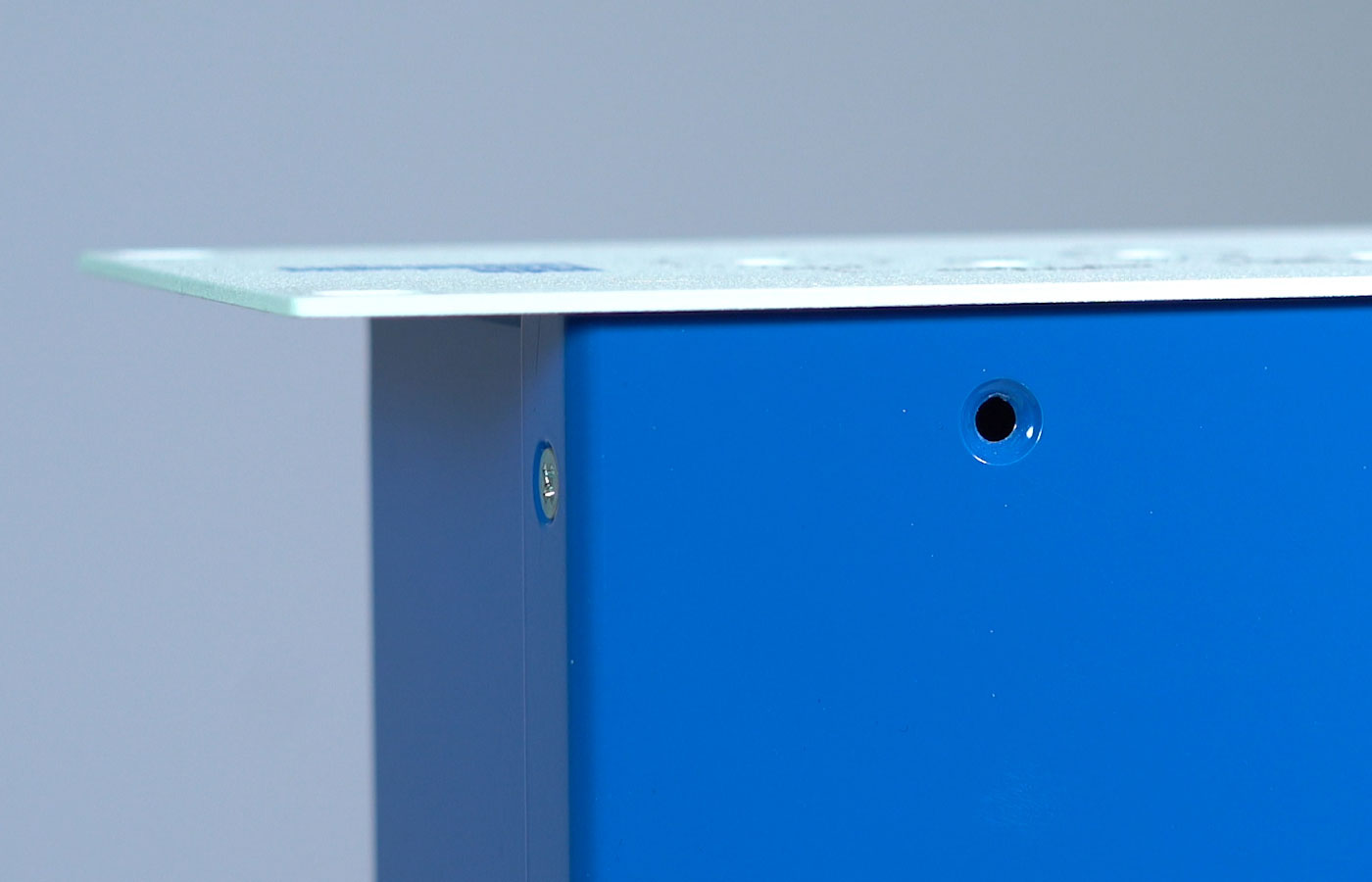

Creating a good seal: In addition to using custom gaskets, using countersunk screws can help achieve a light-tight or dustproof enclosure.

Achieving a streamlined look: Many designers prefer countersunk screws for the aesthetics of having a flush surface.

Standard Countersinking Sizes

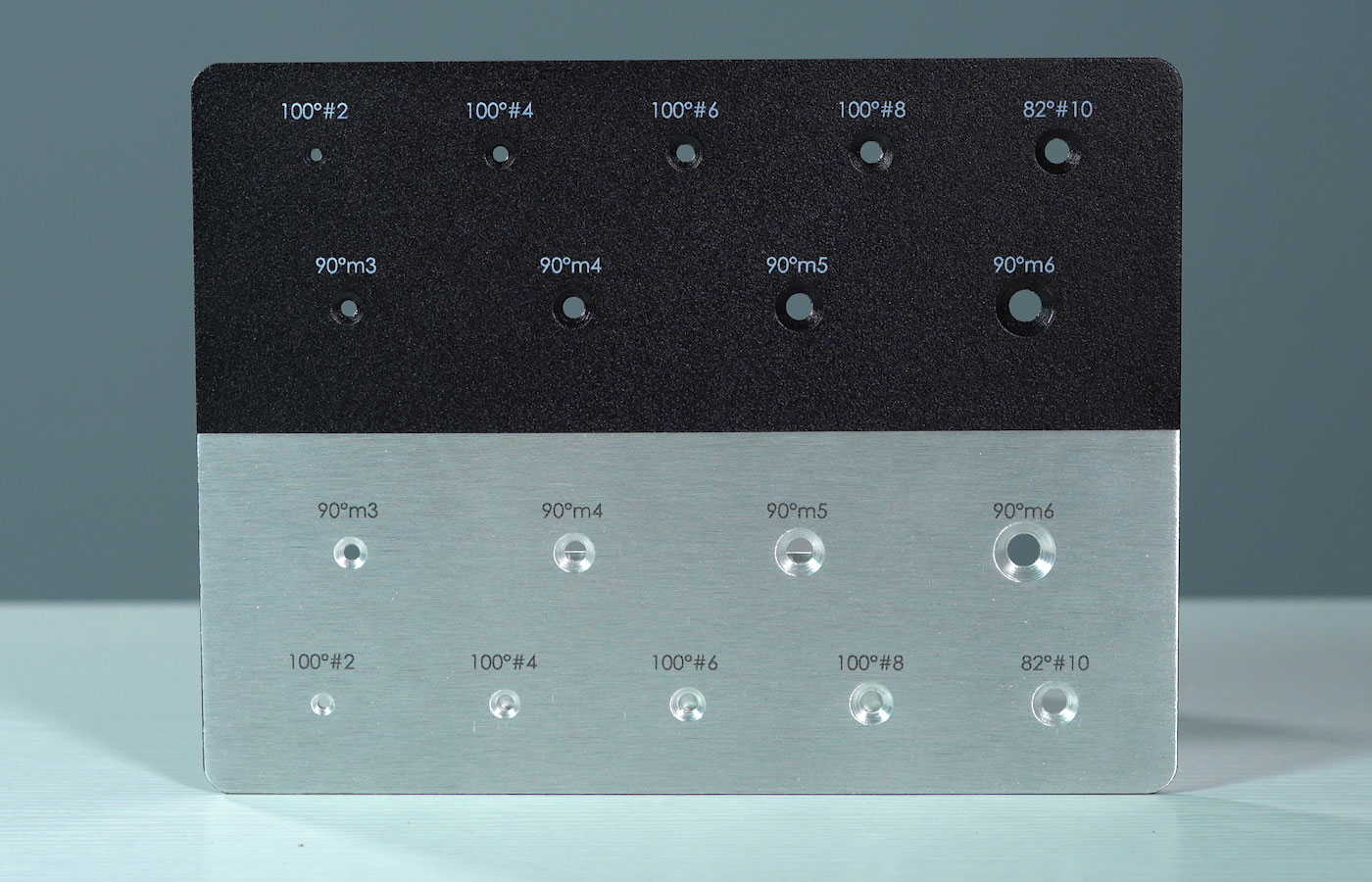

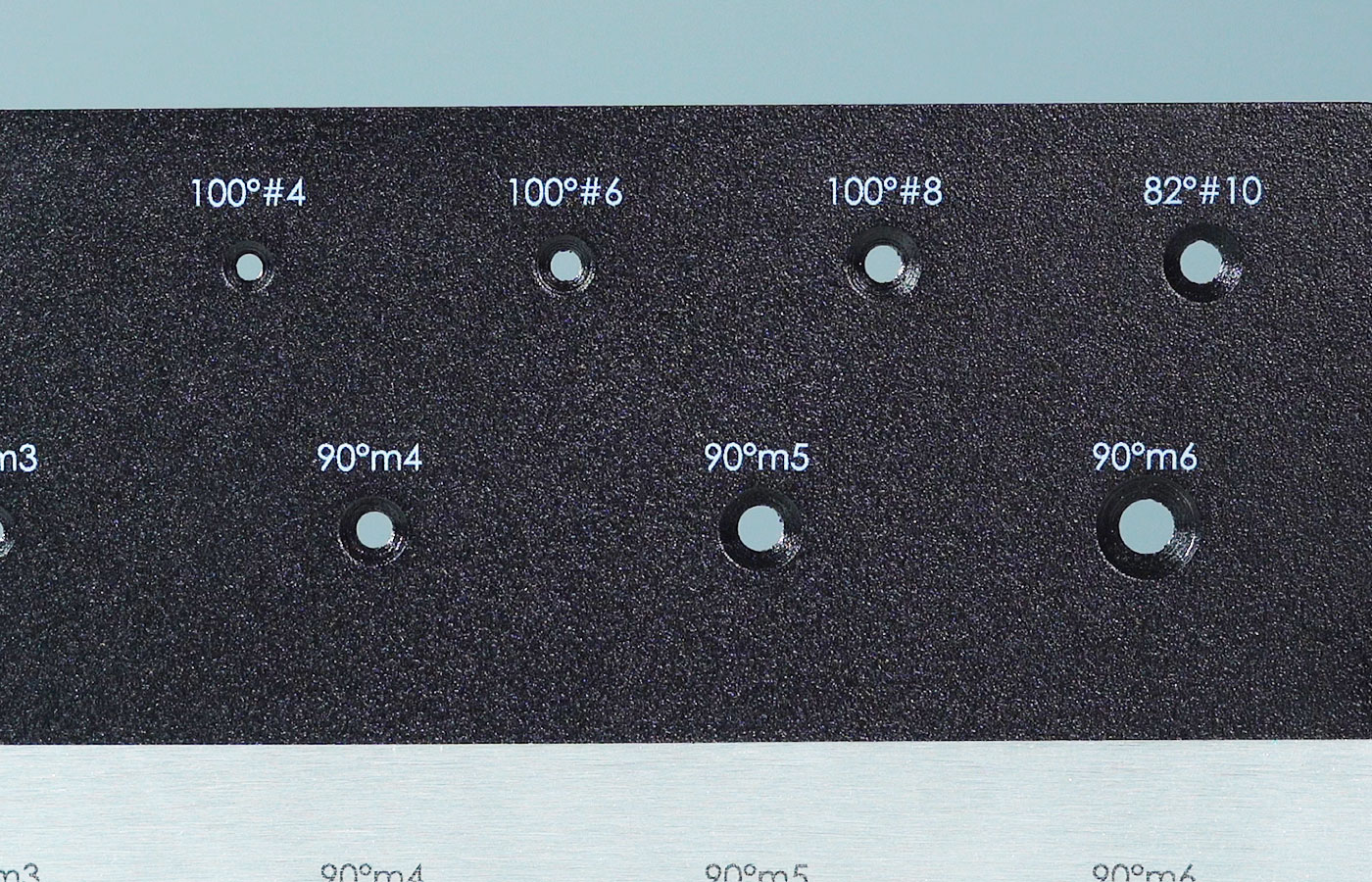

Protocase offers standard countersink angles of 82 degrees, 90 degrees and 100 degrees.

If you require a custom countersink angle, please contact us to discuss your options.

Countersinking Examples:

Limitations

Countersinking is available on all of our sheet metal.

The material of the part being countersunk must be thick enough to accommodate the head depth of the screw being used. If the material isn't thick enough, your screw will bottom out before it can sit flush with the surface.

In order to ensure that your flathead screw sits flush, the material thickness of your panel must be at least the same height as the depth of your screw head.

If you require assistance choosing a metal thickness to correspond with your screw and countersink, please contact us.

Protocase Designer

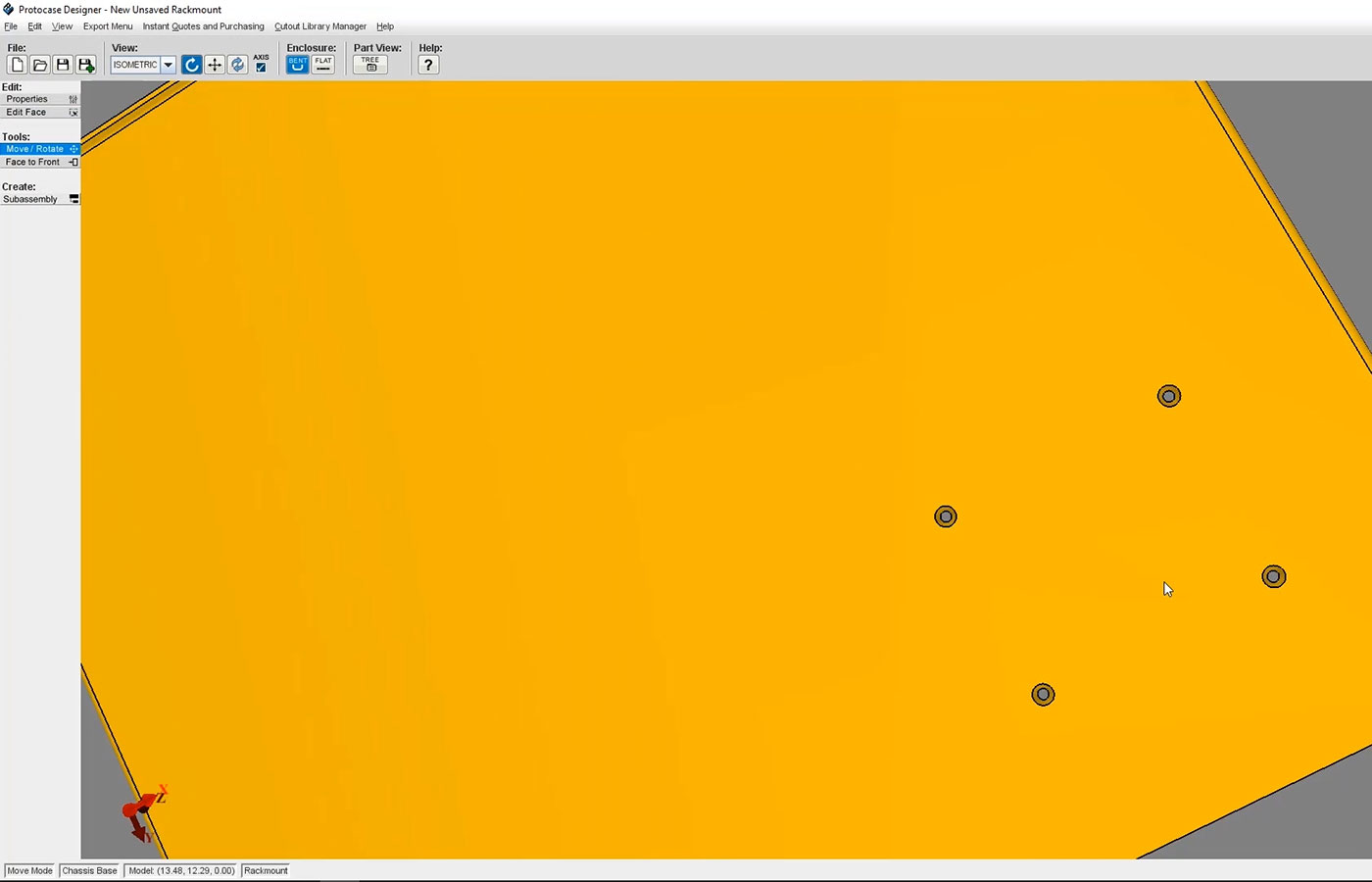

Choosing countersinking in Protocase Designer, our free enclosure-design software, is a quick and simple process. Click here to watch a tutorial.
